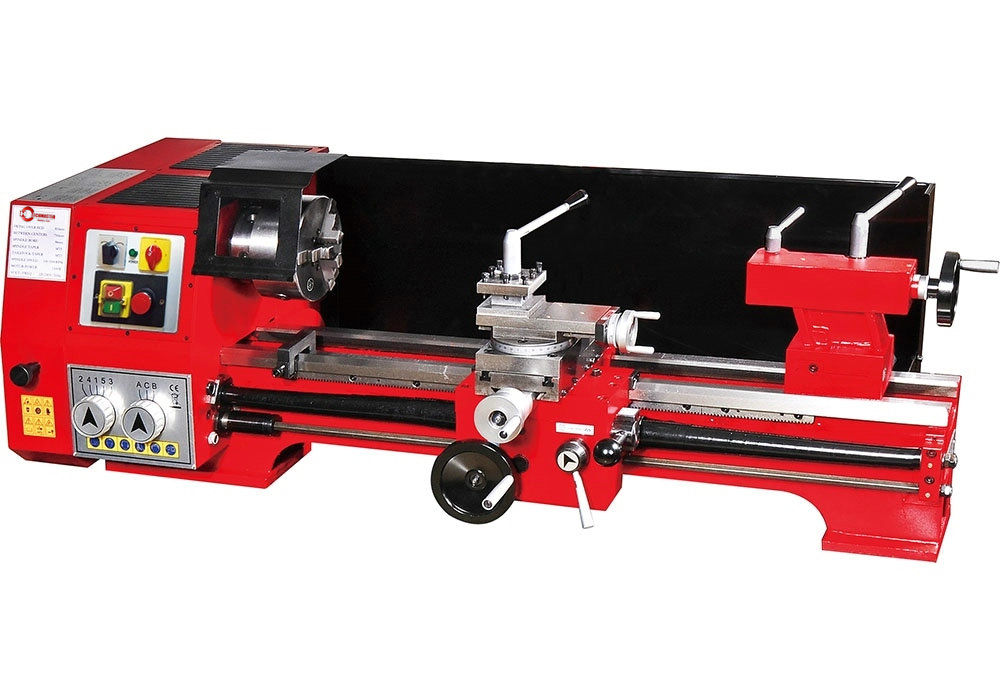

C10 BRUSHLESS MOTOR TOPBENCH LATHE
Quantity: -
C10
Features: 735W AC Motor
Cross & Longitudinal Power FeedIn-Built Oil Bathed Gear Box
Belt Drive for Quieter OperationCam-Lock Tailstock
Metal GearsT-Slots on Cross Slide
38mm BoreSwitched Chuck Guard
Leadscrew GuardLeadscrew Overload Clutch
Metric & Imperial ThreadsEmergency Stop Button
High Quality Induction Hardened Cast Iron Bed
Overrunning clutch
• Hardened bed way
• High power with large cutting capacity
• Auto feeding on both X, Y axis
• Cutting all thread pitchs only adjust the gear box handles, no more need changing gears
Swing over bed
305 mm
Distance between centers
700 mm
Hole through spindle
38 mm
Spindle taper
MT5
Spindle nose
D type
Tailstock taper
MT3
Compound travel
80 mm
Cross slide travel
155 mm
Range of thread Metric version
0.25 - 2 .5 mm (14 threads pitches)
Imperial version
12 - 96 TPI (9 threads pitches)
Motor output power
735 W
Spindle speed
(6 steps) 125-2000 rpm
Overall dimension (LxWxH)
1500x750x730 mm
Packing size (LxWxH)
1550x890x670 mm
Weight (Net/Gross)
215/255 kg
Standard Accessories:
160mm D1-4 3-Jaw Self-Centering Chuck
MT5 Spindle Centre
MT3 Dead Centre
Fixed & Travelling Steady
Face Plate
Wrench Set
