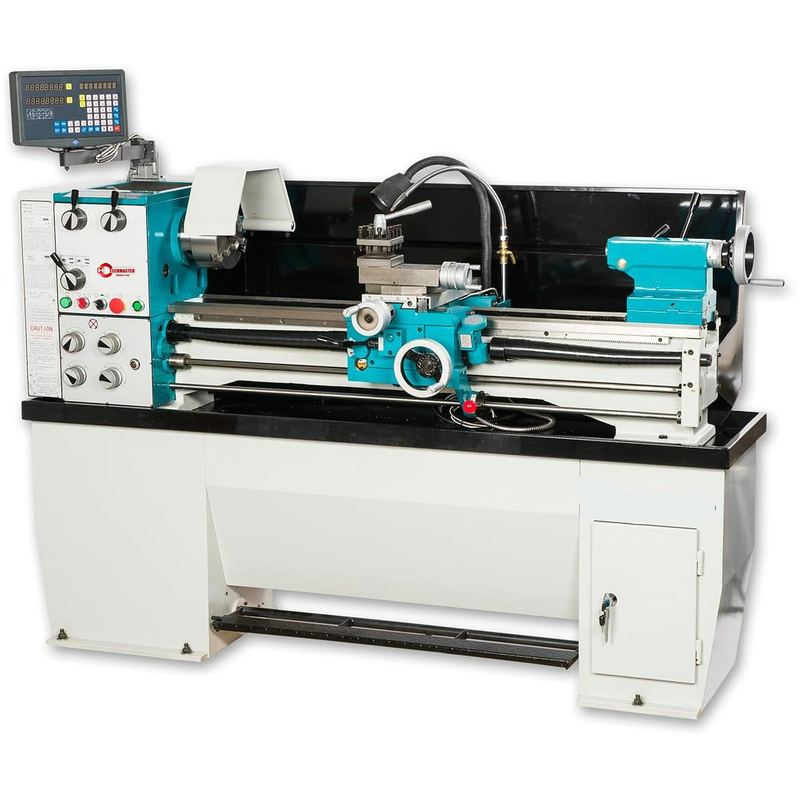

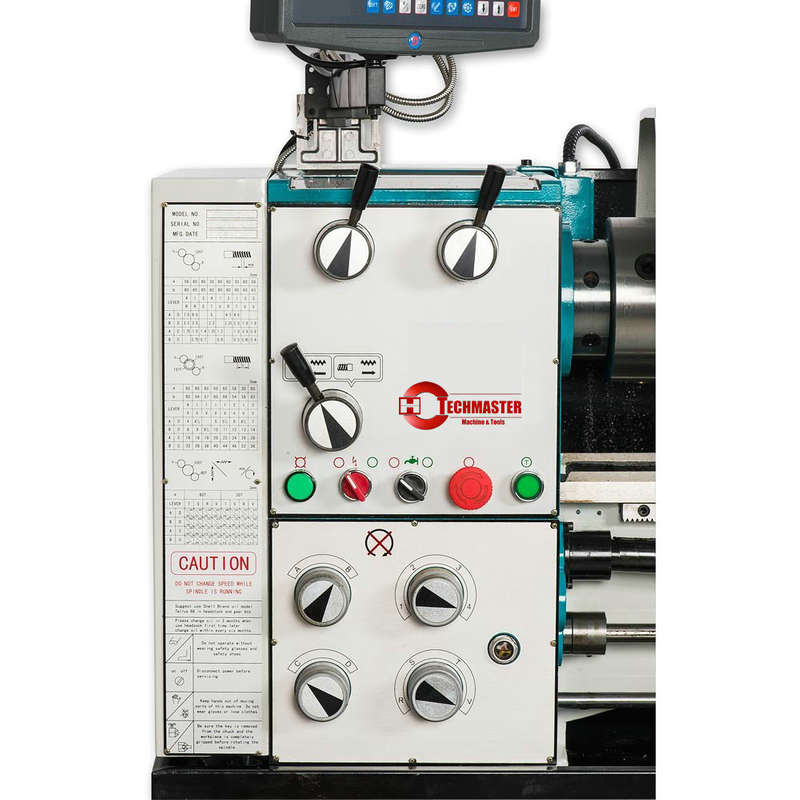

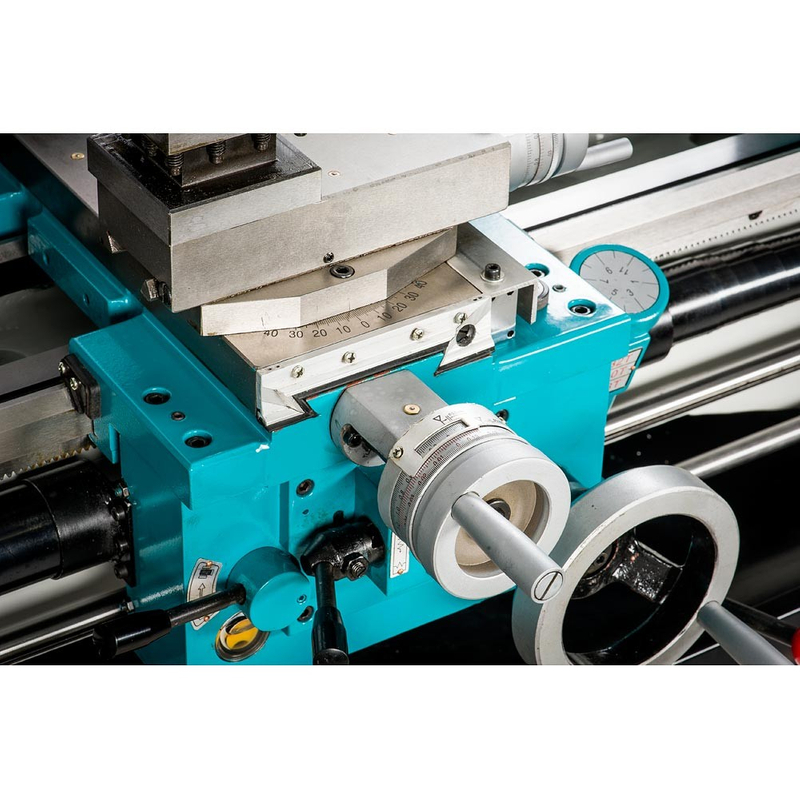

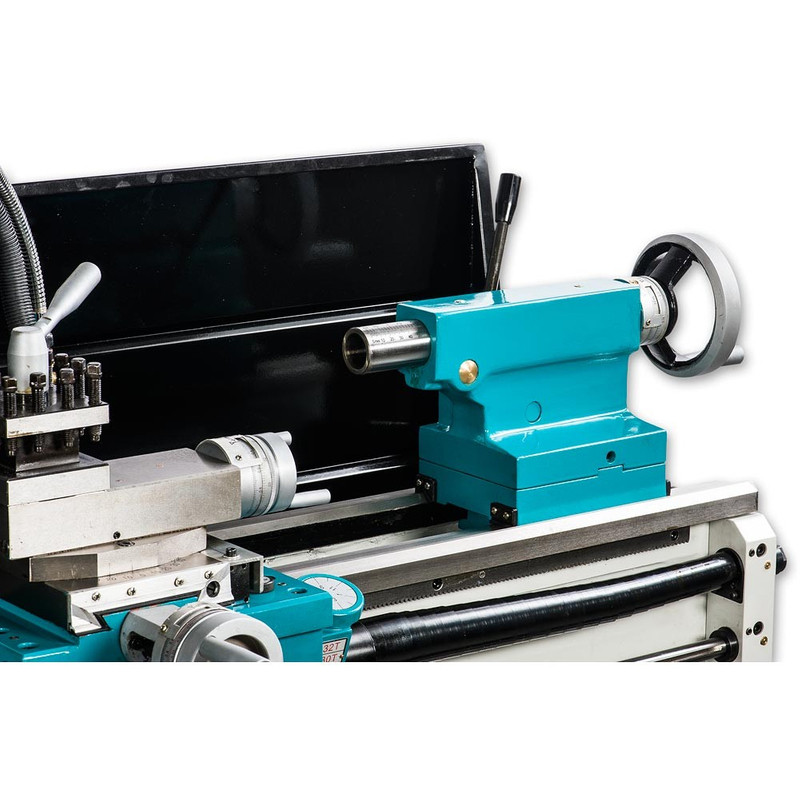

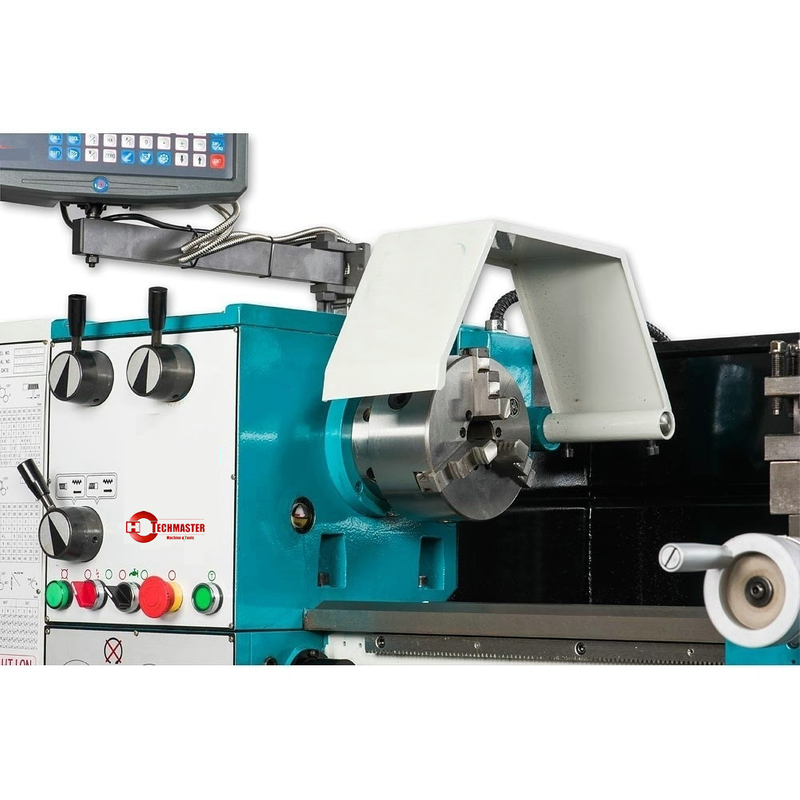

This is a high speed precision lathe built to a very high standard and based around a deep webbed, cast iron bed with ground, induction hardened slideways providing great rigidity and strength. It is powered by a 2.2kW (415V) motor driving a headstock gearbox providing 16 speeds, 35-2000rpm through hardened gears. The spindle is carried on large taper roller bearings, has a D1-4 chuck mount and has a 38mm through bore with a 5MT in the nose. A very rigid carriage has power drive on the compound axis and is fitted with a 4-way tool post that can take tooling up to 16mm in size. The leadscrew pitch is 3mm and is driven by a gear box offering a choice of 32 ratios for general turning, and is easily reversible. The change wheel set provided offers a good range of thread cutting choices, 26 metric, 0.4-7mm pitch and 34 imperial, 4-56tpi. A thread dial indicator with 3 ratios is provided to assist in re-engaging the leadscrew in the correct position. There is a 2-axis DRO system included, featuring metric and imperial displays and linear compensation to enable a totally accurate measurement. The tailstock has a quick action camlock, a taper turning transverse adjustment, a fine pitch leadscrew for the barrel and a 4MT bore. The machine has 24V switch gear, a chuck guard interlock switch and a foot operated brake for safe operation. It comes with a large range of standard accessories including work lamp, rear splash back guard, cabinet stand with lockable cupboard, change wheel set, coolant pump and equipment, 150mm 3-jaw chuck with internal and external jaws, 200mm 4-jaw independent chuck, 250mm faceplate, live and dead centres, 5-3MT reduction sleeve, travelling steady, fixed steady and a toolbox with comprehensive tool kit plus spare brake shoes and operating cable. This machine is very suitable for educational establishments, maintenance workshops and small production workshops, and will prove to be a pleasure to use. N.B. Will require a 16A supply.
•Precision floor standing lathe built to a very high standard

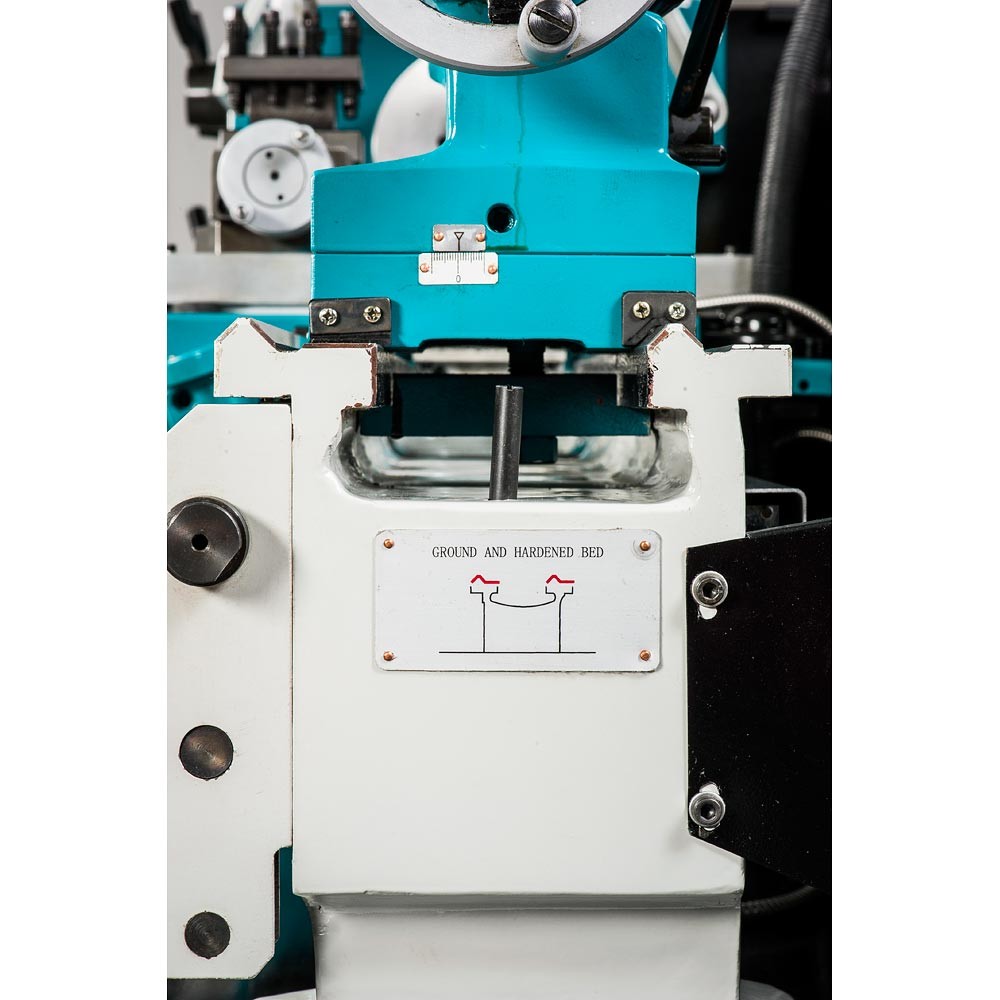

•Deeply webbed, cast iron bed with ground, induction hardened slideways
•The max.speed reaches to 2000R.P.M
•Metric & imperial threads cutting
•Diametral pitches DP/DP, MP/MP
| C330-1000 High Speed Precision Lathe | ||
|---|---|---|
| Project Name | Project Content | Parameter |
| CAPACITY | Swing over bed | 330 mm |
| Swing over cross slide | 198 mm | |
| Center height | 165 mm | |
| Distance between centers | 1000 mm | |
| Bed width | 205 mm | |
| Bed length | 1655 mm | |
| HEADSTOCK | Spindle bore | 41 mm |
| Spindle nose | D1-4 | |
| Spindle bore taper in nose，in sleeve | M.T.#5 / M.T.#4 | |
| Speeds number | 8 or 16 (optional) | |
| Speeds range | 70-2000R.P.M. or 35-2000R.P.M.(2 speed motor) | |
| CARRIAGE&COMPOUND | Cross slide width | 140 mm |
| Cross slide travel | 208 mm | |
| Compound rest width | 82 mm | |
| Compound rest travel | 92 mm | |
| Lead screw diameter | 22 mm | |
| Lead screw thread | 8T.P.I. or 2.5 mm pitch | |
| Feed rod diameter | 15 mm | |
| Cutting tool max. section | 16 mm X 16 mm | |
| THREADS&FEEDS | Threads imperials pitches | 34 Nos.4-56 T.P.I. |
| Threads metric pitches | 26 Nos.0.4-7 mm pitch | |
| Threads diametral pitches | 36 Nos.8-112 D.P.(optional) | |
| Threads module pitches | 23 Nos.0.25-3 M.P.(optional) | |
| Longitudinal feeds imperial | 0.002"-0.548"/Rev.（32Nos） | |
| Longitudinal feeds metric | 0.052-1.392 mm/ Rev.（32Nos） | |
| Cross slide feeds imperial | 0.0007"-0.0187"/Rev.（32Nos） | |
| Cross slide feeds metric | 0.014-0.380 mm/ Rev.（32Nos） | |
| TAILSTOCK | Quill diameter | 42 mm (1 21/32”) (NO.4 M.T.) |
| Quill travel | 114 mm (4 1/2”) (NO.4 M.T.) | |
| Quill taper | NO.4 M.T. | |
| Set over | 10 mm（±3/8"） | |
| MOTOR | For main motor | 3HP, 3PH |
| Coolant pump motor | 1/8 HP, 3PH | |
| WEIGHT&MEASURES | Machine dimension (LxWxH) | 1930x800x1258 mm |
| Packing dimension (LxWxH) (1set/case) | 1940x800x1600 mm | |
| NW(Kg) (1set/case) | 565 Kgs | |
| GW(Kg) (1set/case) | 585 Kgs |
