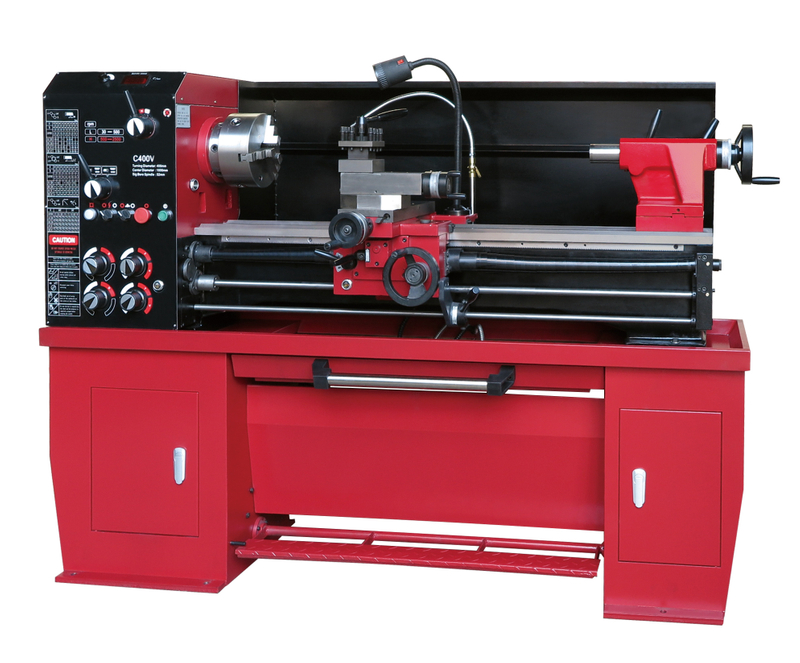

C400-1000 High Speed Precision Lathe
Quantity: -
C400-1000 High Speed Precision Lathe
•Precision floor standing lathe built to a very high standard
•Large taper roller spindle bearings for precision running
•Deeply webbed, cast iron bed with ground, induction hardened slideways
•The max.speed reaches to 2000R.P.M
•Metric & imperial threads cutting
•Diametral pitches DP/DP, MP/MP
C400-1000 High Speed Precision Lathe Project Name Project Content Parameter CAPACITY Swing over bed 400 mm Swing over cross slide 248 mm Center height 200 mm Distance between centers 1000 mm Bed width 205 mm Bed length 1655 mm HEADSTOCK Spindle bore 52 mm Spindle nose D1-5 Spindle bore taper in nose，in sleeve M.T.#6 / M.T.#4 Speeds number 8 or 16 (optional) Speeds range 70-2000R.P.M. or 35-2000R.P.M.(2 speed motor) CARRIAGE&COMPOUND Cross slide width 140 mm Cross slide travel 208 mm Compound rest width 82 mm Compound rest travel 92 mm Lead screw diameter 22 mm Lead screw thread 2.5 mm Feed rod diameter 15 mm Cutting tool max. section 16 mm X 16 mm THREADS&FEEDS Threads imperials pitches 34 Nos.4-56 T.P.I. Threads metric pitches 26 Nos.0.4-7mm Threads diametral pitches 36 Nos.8-112 D.P. Threads module pitches 23 Nos.0.25-3 M.P. Longitudinal feeds imperial 0.002"-0.548"/Rev.（32Nos） Longitudinal feeds metric 0.052-1.392 mm/ Rev.（32Nos） Cross slide feeds imperial 0.0007"-0.0187"/Rev.（32Nos） Cross slide feeds metric 0.014-0.380 mm/ Rev.（32Nos） TAILSTOCK Quill diameter 42 mm (1 21/32”) (NO.4 M.T.) Quill travel 114 mm (4 1/2”) (NO.4 M.T.) Quill taper NO.4 M.T. Set over 10 mm（±3/8"） MOTOR For main motor 3HP,3PH Coolant pump motor 1/8 HP,3PH WEIGHT&MEASURES Machine dimension (LxWxH) 1930x800x1305 mm Packing dimension (LxWxH) (1set/case) 1940x800x1600 mm NW(Kg) (1set/case) 685 Kgs GW(Kg) (1set/case) 815 Kgs •Precision floor standing lathe built to a very high standard
