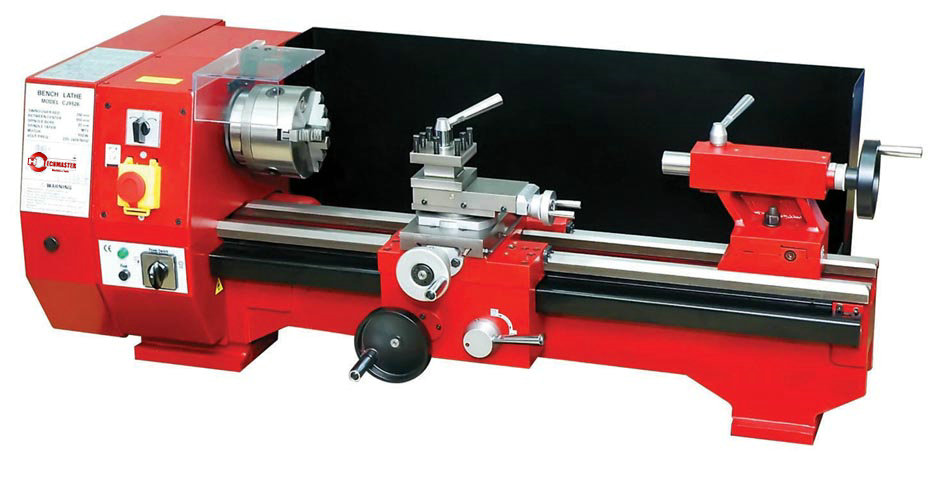

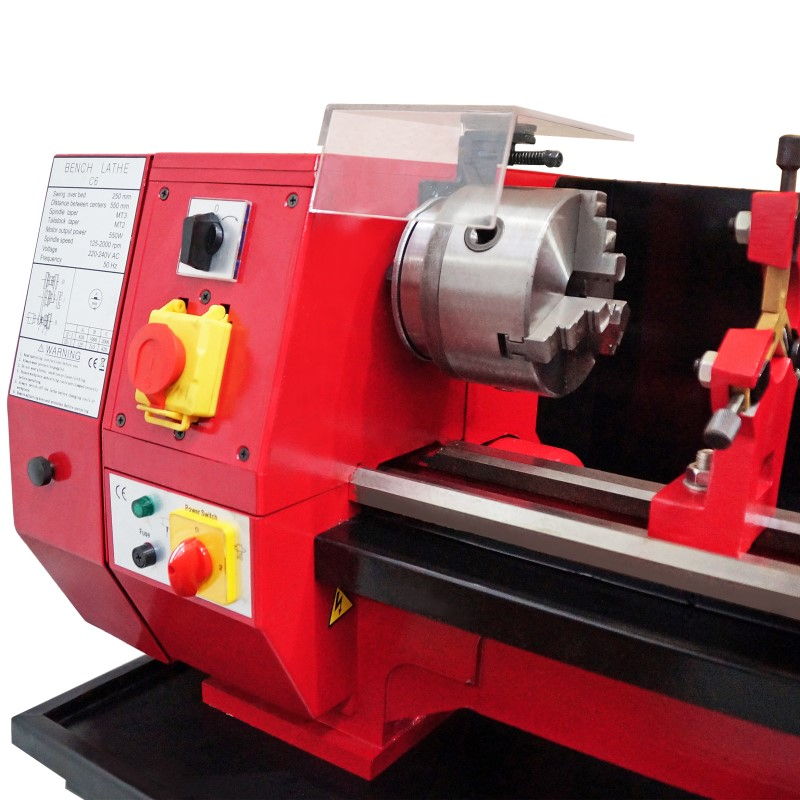

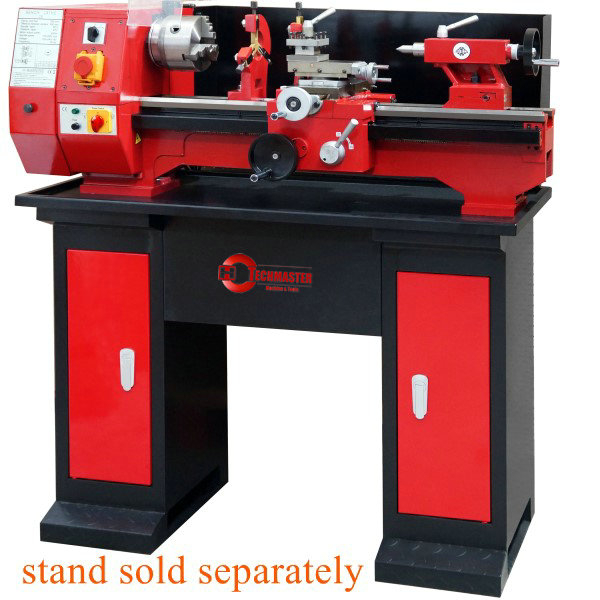

C6 BELT DRIVE TOPBENCH LATHE

Quantity:
  • C6

 Near silent running
• Integral splash guard
• Metric and Imperial thread cutting
• Full range of accessories available
• Converts to a multi-purpose machine with the milling attachme
• Medium capacity, high quality lathe suitable for workshop or school use



Swing over bed

250 mm

Distance between centers Model400

400 mm

Model 550

550 mm

Hole through spindle

20 mm

Spindle taper

MT3

Tailstock taper

MT2

Spindle speed(6 step)

125-2000 rpm

Compound travel

75 mm

Cross slide travel

110 mm

Motor output power

550 W

Thread of range Metric version

0.4-3.0 mm (12 threads pitches)

Imperial version

10-44 TPI ( 8 threads pitches)

Overall dimension (LxWxH)Model 400

1040x600x450 mm

Model 550

1140x600x450 mm

Weight (Net/Gross) Model 400

125/160 kg

Model 550

145/180 kg

Packing size (LxWxH) Model 400

1070x640x580 mm

Model 550

1170x640x580 mm



Standard Accessories:
125mm 3-Jaw Self-Centering Chuck ,MT2 Dead Centre,MT3 Spindle Centre ,Fix Steady & Travelling Steady,Face Plate,Change Gear Set,Wrench Set
