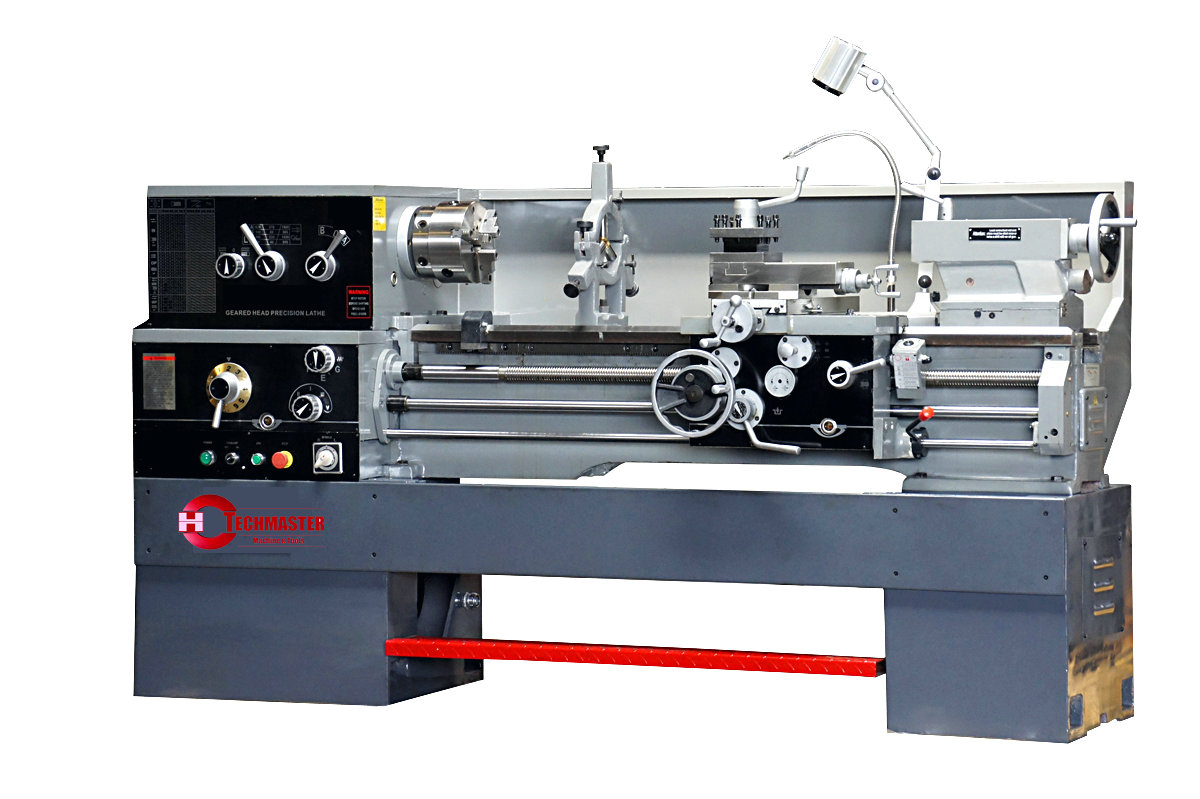

ITEM | | C6132ZK C6232ZK | C6136 ZK C6236 ZK | C6140 ZK C6240 ZK | C6146 ZK C6246 ZK | |
Max. swing over bed | mm | Φ 350 | Φ 360 | Φ 400 | Φ 460 | |
Max. swing over carriage | mm | Φ 185 | Φ 195 | Φ 255 | Φ 275 | |
* Max. swing over gap | mm | Φ 520 | Φ 530 | Φ 570 | Φ 630 | |
*Max. length of work piece(two centers) | mm | 750; 1000 | 750; 1000; 1500 | |||
*Effective length of gap | mm | 200 | ||||
Spindle bore | mm | Φ 40 or Φ 52 | Φ 52(2" ) | |||
Spindle taper of bore | | M. T. No. 5 or M. T. No. 6 | M. T. No. 6 | |||
Number of speeds | | 12 | ||||
Range of speeds | rpm | 42~1800 | ||||
Thread cutting for Metric pitch threads | Range/No. | 0.5~20mm/24 | ||||
Thread cutting for Whit-worth pitch threads | Range/No. | 72~1.5/8 t. p. i/61 | ||||
Thread cutting for Module threads | Range/No. | 96~3.1/4D/45 | ||||
Thread cutting for D. P. threads | Range/No. | 0.25-10 M. P/20 | ||||
Range of feeds for longitudinal | mm | 0.04-2.46(0.0015" -0.0913" ) | ||||
Range of feeds for cross | mm | 0.03-1.23(0.0006" -0.0365" ) | ||||
Tailstock sleeve dia. | mm | Φ 60 | ||||
Tailstock taper of bore | mm | M. T. No. 4 | ||||
Tailstock sleeve max. travel | mm | 120 | ||||
Max. travel of compound rest | mm | 100 | ||||
Max. cross slide travel | mm | 210 | 240 | |||
Max. size of tool shank(WxH) | mm | 20× 20 | ||||
Power of main motor | kw | 3/4 | 4/5.5 | |||
Overall dimensions(L× W× H) | mm | 2140(2300, 2860)× 1000× 1200 | ||||
Net weight | kg | 1600; 1680; 1840 *1680; 1760; 1920 | 1650; 1730; 1890 *1730; 1810; 1970 | 1700; 1780; 1940 *1780; 1860; 2020 | ||
Note: The items with " *" are only for 62series lathes. The standard spindle hole for C6132ZK and C6136ZK is Φ 40mm, but an optional bigger one Φ 52mmis available. |
