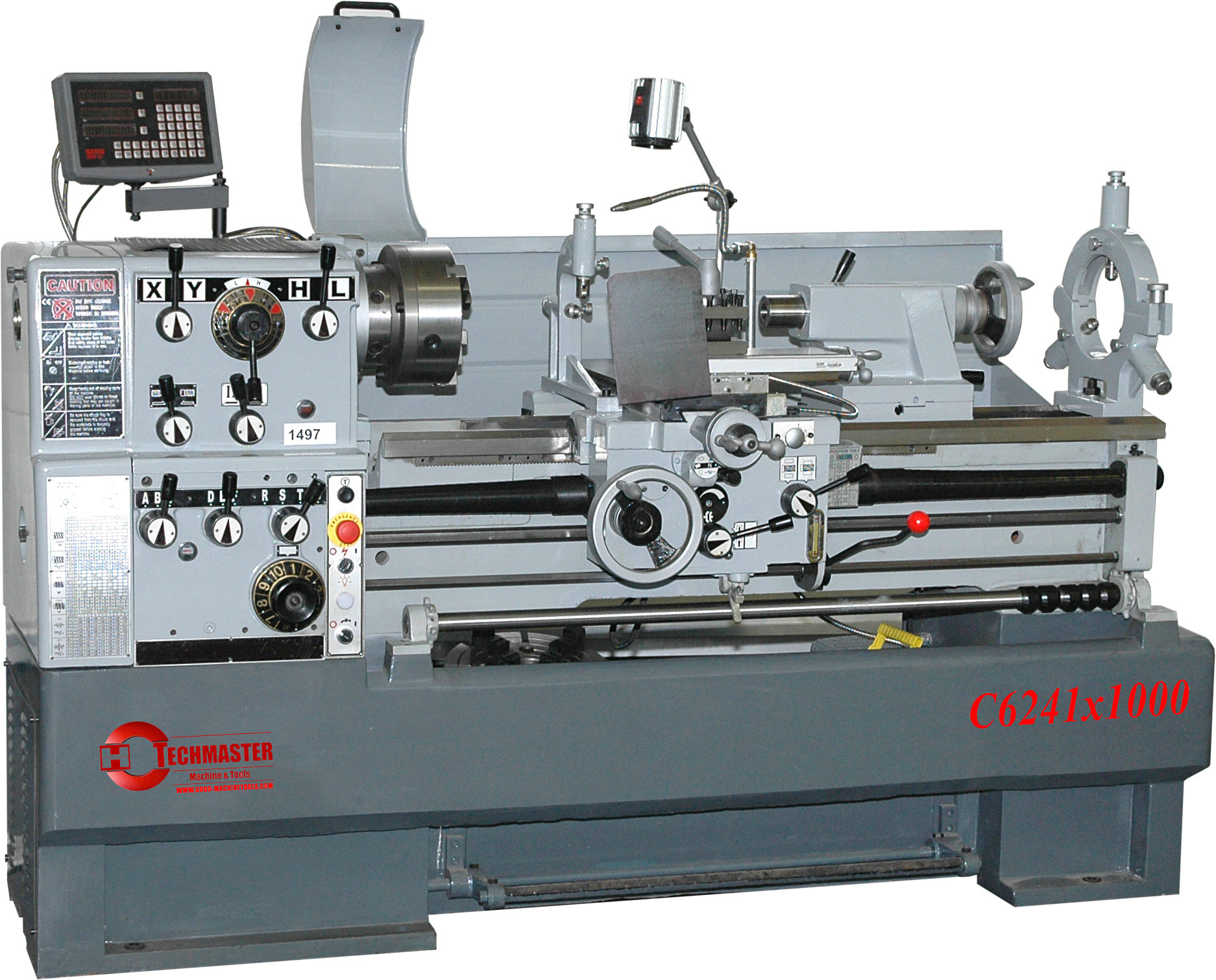

C6241X1000
Quantity: 3-axes digital read-out
removeable bridge
3-jaw chuck Ø 250 mm
4-jaw chuck Ø 300 mm
quick change toolpost
steady rest
following rest
face plate Ø 350 mm incl. adapter flange
coolant equipment
halogen working light
foot brake
operator tools
hardened and ground bedways
hardened and ground gear wheels
machine and equipment according to the CE-regulations
centre height: 205 mm turning length: 1.000 mm spindlebore: 58 mm revs: 25 - 2.000 (12) r.p.m. motor: 5,5 kW bed with: 300 mm swing over bed: 410 mm swing over cross slide: 220 mm swing over dismounted bridge: 640 mm spindle taper: MK 6 tail stock taper: MK 4 metric thread: 0,1 - 14 (41) mm length: 2.170 mm width: 1.130 mm height: 1.510 mm weight: 1.670 kg
3-axes digital read-out
removeable bridge
3-jaw chuck Ø 250 mm
4-jaw chuck Ø 300 mm
quick change toolpost
steady rest
following rest
face plate Ø 350 mm incl. adapter flange
coolant equipment
halogen working light
foot brake
operator tools
hardened and ground bedways
hardened and ground gear wheels
machine and equipment according to the CE-regulations
centre height: 205 mm turning length: 1.000 mm spindlebore: 58 mm revs: 25 - 2.000 (12) r.p.m. motor: 5,5 kW bed with: 300 mm swing over bed: 410 mm swing over cross slide: 220 mm swing over dismounted bridge: 640 mm spindle taper: MK 6 tail stock taper: MK 4 metric thread: 0,1 - 14 (41) mm length: 2.170 mm width: 1.130 mm height: 1.510 mm weight: 1.670 kg
