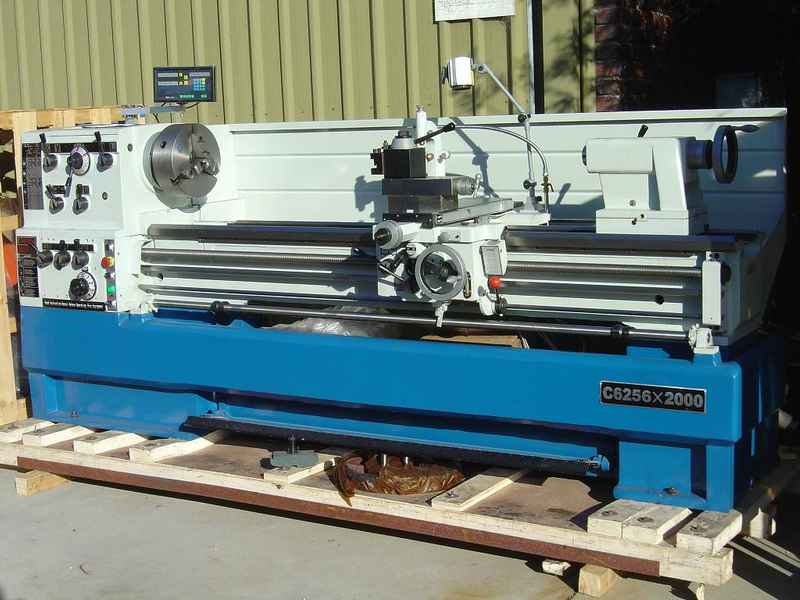

C6256
Quantity: Specifications:
1) Magnetoelectrical brake can be mounted
2) Safety torque limiting device for lead screw
3) Safety overload clutch for feed rod
4) Rapid traverse
5) Main spindle supported at 2 points with precision taper roller bearings
Feature:
Harden and precision ground bedway, one piece complete stand
Euro-standard electrical control board available on request
STANDARD ACCESSORIES
3-Jaw chuck (160mm)
M. T. 7/5 sleeve
M. T. #5 dead center
Tool box with tools
Steady rest
Follow rest
Change gears set
Coolant system
Splash guard
Asunder packaging size and weightMAJOR SPECIFICATIONS C6251 C6256 Max. Swing over bed 510mm 560mm Max. Swing over cross slide 300mm 350mm Max. Swing in gap 738mm 788mm Distance between centers 1500/2000mm Spindle bore 80mm Taper of spindle bore M. T. #7 Range of spindle speed 25-1600rpm. Range of longitudinal feeds 0.059-1.646 mm/rev. Range of cross feeds 0.020-0.573Mm/rev. Range of metric threads 0.2-14mm Range of inch threads 2-112 TPI Diametrical pitches range 4-112D.P. Module pitches rage 0.1-7M.P. Taper of tailstock bore M. T. #5 Power of motor 7.5kw
Type of lathes Packing dimensions Net weight Gross weight C6251 x 1500 2960 x 1130 x 1820mm 2335kg 2700kg C6241 x 2000 2800 x 1130 x 1820mm 2685kg 3070kg C6256 x 1500 2250 x 1130 x 1820mm 2370kg 2740kg C6256 x 2000 3460 x 1130 x 1820mm 2720kg 3110kg
