Near silent running
bull; Integral splash guard
bull; Metric and Imperial thread cutting
bull; Full range of accessories available
bull; Converts to a multi-purpose machine with the milling attachme
bull; Medium capacity, high quality lathe suitable for workshop or school use

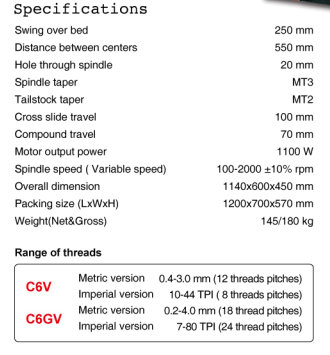

Swing over bed | 250 mm |
Distance between centers Model400 | 400 mm |
Model 550 | 550 mm |
Hole through spindle | 20 mm |
Spindle taper | MT3 |
Tailstock taper | MT2 |
Spindle speed(6 step) | 125-2000 rpm |
Compound travel | 75 mm |
Cross slide travel | 110 mm |
Motor output power | 550 W |
Thread of range Metric version | 0.2-4.0 mm (18 threads pitches) |
Imperial version | 7-80TPI ( 24 threads pitches) |
Overall dimension (LxWxH)Model 400 | 1040x600x450 mm |
Model 550 | 1140x600x450 mm |
Weight (Net/Gross) Model 400 | 125/160 kg |
Model 550 | 145/180 kg |
Packing size (LxWxH) Model 400 | 1070x640x580 mm |
Model 550 | 1170x640x580 mm |
