CA6250B

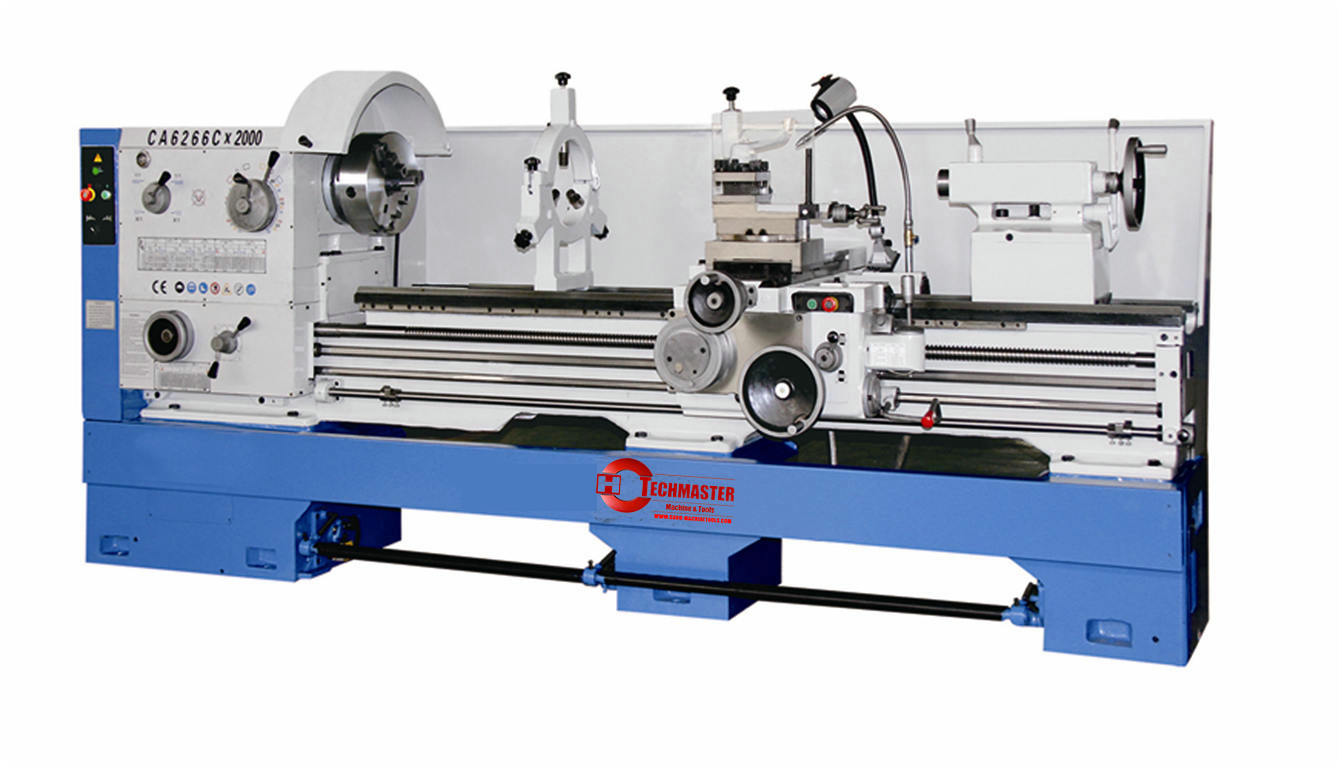

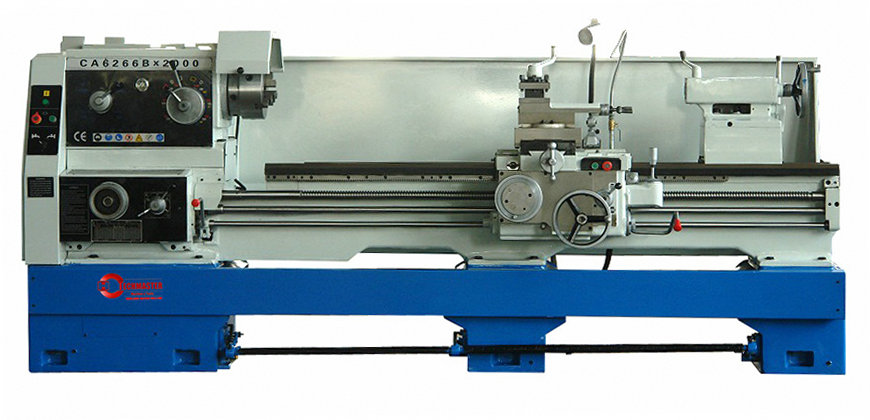

UNIVERSAL HORIZONTAL LATHE TUNETOP CA SERIES CA6240B-CA6280B

Features
Swing over bed: 400mm/500mm/610mm/660mm/800mm
Max workpiece length: 750mm/1000mm/1500mm/2000mm /3000mm
Spindle hole can be choose from 52mm/80mm/104mm
Spindle Taper: MT6
Main motor: 7.5kw(10 HP)
Hardened and ground bed ways

Specifications

CA6140 CA6240 CA6140B CA6240B

CA6150 CA6250 CA6150B CA6250B CA6150C CA6250C

CA6161  CA6261 CA6161B CA6261B CA6161C CA6261C

CA6166  CA6266 CA6166B CA6266B CA6166C CA6266C

CA6180 CA6280 CA6180B CA6280B CA6180C CA6280C

Max .Swing over bed

400mm

500mm

610mm

660mm

800mm

Max .Swing over carriage

210mm

300mm

370mm

400mm

540mm

Max .Swing in gap

__

630mm

__

720mm

__

830mm

__

880mm

__

1020mm

Effective gap length

__

210mm

__

210mm

__

210mm

__

210mm

__

210mm

Max .length of work piece

750/1000/1500/2000/2200/3000/4000mm

Width of bed

400mm

Section of turning tool

25×25mm

Spindle

Spindle speed

10-1400rpm/16-1400rpm(24steps)

Hole through spindle

52mm  , (80mm) , [105mm]

Spindle taper

(MT6)(Φ90 1:20)[Φ113:20]

Feed

No. of feed

(64 kinds)(for each)

Range of metric threads

(1-192mm) (44 kinds)

Range of inch threads

(1-24tpi) (21kinds)

Range of module threads

0.25-48 (module 39 kinds)

Range of diametral pitc threads

1-96DP (37 kinds)

Tailstock

Max. tailstock spindle travel

150mm

Tailstock spindle diameter

75mm

Taper of  tailstock spindle center hole

(MT5)

Main motor

7.5KW(10HP)

Packing dimensions ( L×W×H mm )

Overall dimensions for 750mm

2440×1140×1750

2440×1140×1750

2440×1140×1750

2440×1140×1750

2440×1140×1750

Overall dimensions for 1000mm

2650×1140×1750

2650×1140×1750

2650×1140×1750

2650×1140×1750

2650×1140×1750

Overall dimensions for 1500mm

3150×1140×1750

3150×1140×1750

3150×1140×1750

3150×1140×1750

3150×1140×1750

Overall dimensions for 2000mm

3650×1140×1750

3650×1140×1750

3650×1140×1750

3650×1140×1750

3650×1140×1750

Overall dimensions for 2200mm

4030×1140×1750

4030×1140×1750

4030×1140×1750

4030×1140×1750

4030×1140×1750

Overall dimensions for 3000mm

4800×1140×1750

4800×1140×1750

4800×1140×1750

4800×1140×1750

4800×1140×1750

Overall dimensions for 4000mm

5680×1140×1700

4800×1140×1750

4800×1140×1750

4800×1140×1750

4800×1140×1750

Weight(kg)

Length

G.W.    N.W.

G.W.    N.W.

G.W.    N.W.

G.W.    N.W.

G.W.    N.W.

Overall dimensions for 750mm

2100    1990

2170    2060

2300    2180

2380    2260

2520    2400

Overall dimensions for 1000mm

2190    2070

2260    2140

2380    2250

2570    2450

2720    2560

Overall dimensions for 1500mm

2350    2220

2420    2290

2577    2437

2810    2640

2980    2800

Overall dimensions for 2000mm

2720    2570

2790    2640

2940    2787

3050    2880

3260    3087

Overall dimensions for 2200mm

2800    2600

2940    2790

3120    2970

3390    3180

3490    3287

Overall dimensions for 3000mm

3300    3200

3450    3300

3600    3450

3930    3687

4220    3887

Overall dimensions for 4000mm

3500    3400

3750    3600

3950    3800

4580    4200

4850    4500
