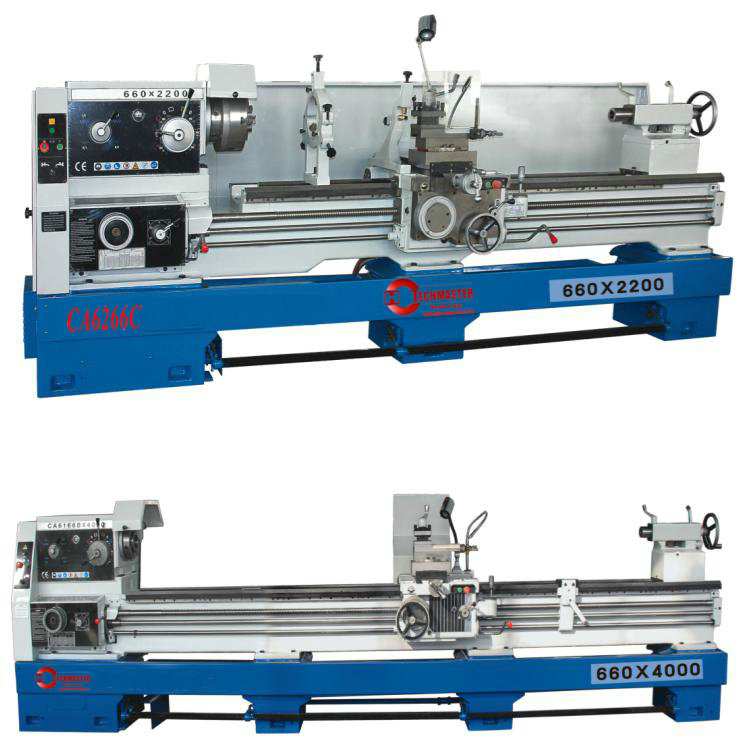

CA6266C
Quantity: -These lathe mahine can satisfy various turning for the light-duty big disc. And big diameter shaft work piece
-High speed dynamically balanced spindle, --using the latest machine tool building technology
-Solid cast iron structure--assuring the rigidity of bed, head stock and saddle.
-Stress relieved bed and induction hardened guideways --provide the machine with round rigidity and Longer life.
-precision ground bed slideways--gurantees high accuracy along the total length of the machine
-extra heavy ribbed machine bed
-gears are hardened and ground
-large capacity of spindle bore 105mm
-wide range of diametric, inch, module, and metric threads
-joystick control for X and Z feed mounted directly to support
-indcution hardened and ground guideways
-one kind of high precision lathe machineModel CA6240
CA6240BCA6250
CA6250B
CA6250CCA6261
CA6261B
CA6261CCA6266
CA6266B
CA6266CCA6280
CA6280B
CA6280CMax. swing over bed(mm) 400 500 610 660 800 Max. swing over carriage(mm) 210 300 370 400 540 Max. swing in gap(mm) 630 720 830 880 1020 Effective gap length(mm) 210 210 210 210 210 Max. length of work piece(mm) 750 or 1000 or 1500 or 2000 or 3000 Width of bed(mm) 400 Section of turning tool(mm) 25 X25 Spindle Spindle speeds(r/min) 11-1600(24steps) Hole though spindle(mm) 52 (B-80 C-105)
Morse No.6 Feed No. of feeds 64(kinds)(for each) Range of metric threads(kings) (1-192mm)(44kinds) Range of inch threads(kings) (1-24tpi)(21kinds) Range of module threads(kings) 0.25-48(Module 39 kinds) Range of diametral pitc threads(kinds) 1-96DP(37kinds) Tailstock Max. tailstock spindle travel(mm) 150 Tailstock spindle travel(mm) 75
Morse No.5 Main motor(kw) 7.5Kw(10HP) Picking dimensions ( LxMxH mm ) G.W/ N.W. 750 2440X1140X1750 2100/1900 2170/2060 2300/2180 2380/2260 2520/2400 1000 2650X1140X1750 2190/2070 2260/2140 2380/2250 2570/2450 2720/2560 1500 3150X1140X1750 2350/2220 2420/2290 2580/2450 2810/2640 2980/2800 2000 3650X1140X1750 2720/2570 2790/2640 2940/2800 3050/2880 3260/3080 3000 4850X1140X1750 3300/3200 3450/3300 3600/3450 3930/3690 4200/3890
