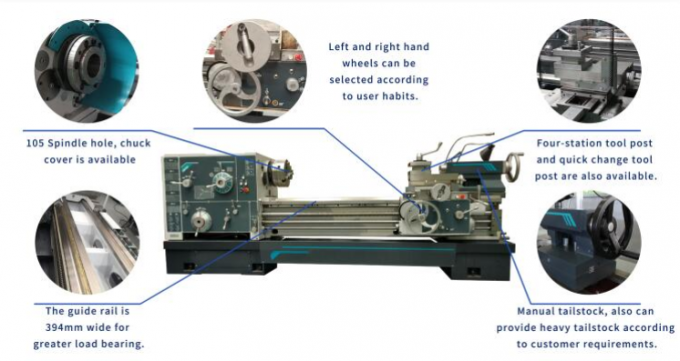

The CDS-B/C series conventional lathes are general-purpose lathes developed by our company in collaboration with renowned global lathe manufacturing enterprises. Application Field: The CDS-B/C series conventional lathes, developed by our company in collaboration with renowned global lathe manufacturing enterprises, are user-friendly general-purpose lathes. They feature a popular angular flat design with spacious front and rear legs. The bed guide rails have undergone surface high-frequency quenching and grinding processes, achieving a quenching hardness of G50. The headstock gearbox has undergone high-frequency quenching of the gear teeth and precision gear grinding, with gear precision reaching levels 6 to 7. This machine can process materials such as steel, cast iron, non-ferrous metals, and non-metallic materials. Parts processed on this machine can achieve a dimensional accuracy of IT7 and a surface roughness of 1.6. Machine Features: 1. Large Spindle Bore: B-type with 82mm, C-type with 105mm. 2. High Spindle Speed: The spindle system is dynamically balanced, allowing for high rotational speeds and comprehensive adaptability to tooling techniques. 3. High Rigidity: The main body of the machine tool is made entirely of resin-bonded high-phosphorus castings, and the structure of the main body of the machine tool is made more rational through finite element analysis and optimization. 4. Aging Treatment for Bed Body, High-Frequency Quenching for Guide Rails: Enhances the machine tool's longevity. 5. Precision Grinding for Bed Guide Rails: Ensures high precision along the entire length of the guide rails. 6. Vertical Lead Screw Equipped with Metal Protective Cover: Enhances the personal safety of operators. 7. Rapid Traverse Mechanism in Both Vertical and Horizontal Directions on the Carriage: Makes the operation of the machine tool more convenient and efficient for operators. | |||||||||

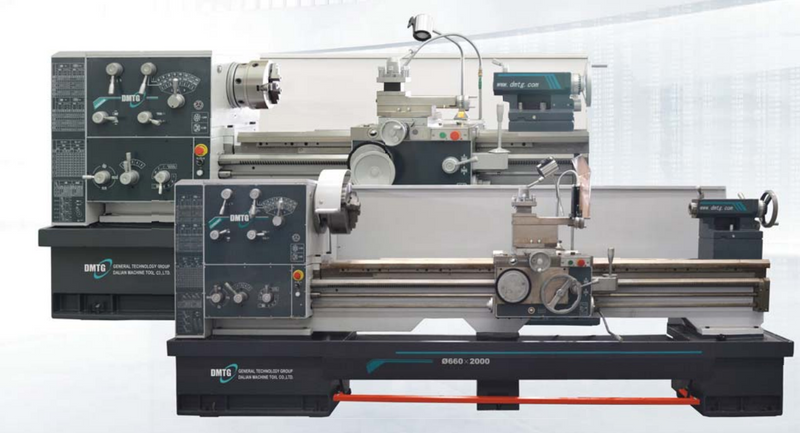

CDS6166C/CDS6266C Horizontal Lathe Machine
Product Presentation
The CD-S series of ordinary lathes adopt the popular rectangular plane shape, with wide front and rear legs. The bed was hardened and ground by high-frequency surface, and the hardness was G50. After high frequency quenching and precision grinding, the gear precision can reach 7 grade.
The dimension precision of parts processed by this machine can reach IT7 level, and the surface roughness can reach 1.6 level.
Product Configuration
Product model | UNIT | CDS6150C | CDS6250C | CDS6156C | CDS6256C | CDS6166C | CDS6266C | |
specification | ||||||||
Max. swing diameter over bed | mm | Ø500 | Ø560 | Ø660 | ||||
Max.swing diameter over cross slide | mm | Ø290 | Ø350 | Ø440 | ||||
Max.swing diameter in gap | mm | — | Ø760 | — | Ø800 | — | Ø870 | |
Length in gap | mm | — | 280 | — | 280 | — | 280 | |
Max. workpiece length | mm | 750/1000/1500/2000/3000 | ||||||
Max. cutting length | mm | 700/950/1450/1950/2950 | ||||||
Spindle | ||||||||
spindle nose | D8 | |||||||
Spindle bore | mm | Ø105(Allowable bar diameter≤Ø103) | ||||||
Chuck size | mm | Ø315 | ||||||
Taper of spindle bore | 110 mm/1:20 | |||||||
Max.Spindle torque | Nm | 1100 | ||||||
Spindle speed ranges | rpm | 26-1700(16 speeds) | ||||||
Spindle centre height | mm | 250 | 280 | 325 | ||||
Spindle motor power | kW | 7.5(10 HP) | ||||||
Tailstock | ||||||||
Diameter of tailstock quill | mm | Ø75 | ||||||
Travel of tailstock quill | mm | 150 | ||||||
Taper of tailstock quill | No.5 MT | |||||||
Feeds&Threads (metric screw *inch screw) | ||||||||
Longitudinal feed | 0.044-1.48 mm/rpm (45 Kinds) *0.044〜0.148 in/rpm (45 Kinds) | |||||||
Cross feed | 0.022~0.74mm/rpm (45 Kinds) *0.031-0.092 in/rpm (45 Kinds) | |||||||
Metric threads | mm | 0.5-80 (73 Kinds *53 Kinds) | ||||||
Modular threads | mm | 0.5-40 (45 Kinds *66 Kinds) | ||||||
Inch threads | TPI | 7/16-80 (47 Kinds *47 Kinds) | ||||||
Diametral pitch threads | DP | 7/8~160 (47 Kinds *48 Kinds) | ||||||
Tool post | ||||||||
Max.tool shank size | mm | 25X25 | ||||||
Travel of top slide | mm | 150 | ||||||
machine dimensions (L*W*H) | mm | 2680X1223X1295 (750) 2930X1223X1295 (1000) 3430X1223X1295 (1500) 3930X1223X1295 (2000) 4930X1223X1295 (3000) | 2680X1223X1325 (750) 2930X1223X1325 (1000) 3430X1223X1325 (1500) 3930X1223X1325 (2000) 4930X1223X1325 (3000) | 2680X1223X1370 (750) 2930X1223X1370 (1000) 3430X1223X1370 (1500) 3930X1223X1370 (2000) 4930X1223X1370 (3000) | ||||
Machine weight | kg | 2120/2170/2420/2620/3120 | 2180/2270/2480/2680/3180 | 2400/2500/2700/2900/3400 |
Standard configurations
3-Jaw chuck
lead screw cover
Fixed center of tailstock
4-way tool post
Foot brake
Standard toolkit
Steady rest(≥1500mm Available)
Follower rest (≥1500mm Available)
Optional configurations
4-Jaw chuck
Quick-change tool post
Chuck guard
Tool post guard
Rear splash guard
Live center of tailstock
Face plate
Thread dial
Drive plate
Taper-turning attachment
DRO
Carriage stop
Adjustable pads
Anchor bolts
Spindle center and center sleeve
Steady rest&Follow rest (≤1000mm Available)
Our advantage:
Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage 3: Engineers stationed in the factory guarantee the highest quality.
Advantage 4: More suppliers as alternatives, guarantee your lowest price.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions.
Advantage 6: OEM, ODM production, to meet customer needs in all aspects.
Advantage 7: Low MOQ for only 1 unit.
Advantage 8: For small equipment (such as boring machines) guaranteed in-stock all year round.
