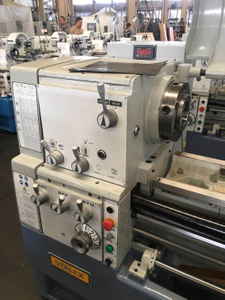

CE6252B
Quantity: Item Unit CE6240B CE6252B CE6252C CE6266B CE6266C Center height mm 202 262 262 332 332 Swing over bed mm 400 520 520 660 660 Swing over gap and length mm 640 760 760x220 900x220 900x220 Swing over toolpost mm 210 338 338 430 430 Distance between centers mm 750/1000/1500/2300/3000 Spindle speed step and range rpm 12 35-1600 12 36-1600 12 36-1600 12 36-1600 12 36-1600 Spindle nose
metric 90 metric 90 metric 113 metric 90 metric 113 Spindle bore mm 80 80 105 80 105 Longitudinal range of feed mm 35 0.08-1.69 65 0.063-1.68 65 0.063-1.68 65 0.063-1.68 65 0.063-1.68 Cross range of feed mm 35 0.027-0.6 65 0.027-1.07 65 0.027-1.07 65 0.027-1.07 65 0.027-1.07 Metric thread cutting range/No. mm 36 1-96 22 1-14 22 1-14 22 1-14 22 1-14 lnch thread cutting range/No. T.P.I 20 2-24 24 2-28 24 2-28 24 2-28 24 2-28 Module range/No. mm 31 0.50-24 18 0.5-7 18 0.5-7 18 0.5-7 18 0.5-7 D.P. range/No. D.P 37 1-96 24 4-56 24 4-56 24 4-56 24 4-56 Max. travel of cross slide mm 260 340 340 340 340 Max. travel of top slide mm 120 120 120 120 120 Tailstock sleeve taper
No.5 Morse Tailstock travel mm 150 150 150 150 150 Power of main motor kw 5.5 7.5 7.5 7.5 7.5 Net weight kg 2050/2150/2350/2500/2750 2500/2600/2800/2950/3100 2600/2700/2900/3050/3200
