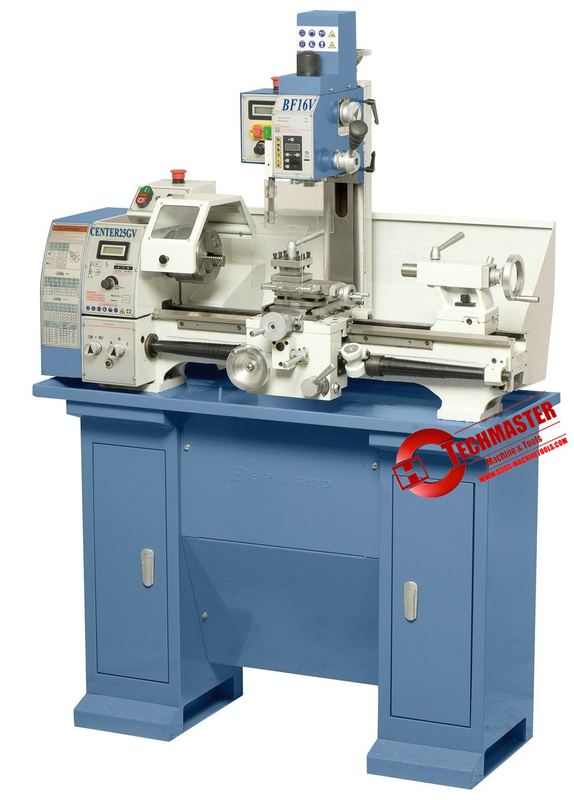

| MODEL | CENTER250GV |
| LATHE | |
| Distance between centers | 550/750 mm |
| Swing over bed | 250 mm |
| Swing over cross slide | 145 mm |
| Width of bed | 135 mm |
| Taper of spindle bore | MT4 |
| Spindle bore | 26 mm |
| Number of spindle speeds | Variable |
| Range of spindle speeds | 50-2000 rpm |
| Range of longitudinal feeds | 0.07-0.20 mm/r |
| Range of inch threads | 8-56 T.P.I |
| Range of metric threads | 0.4-3.5 mm |
| Top slide travel | 50 mm |
| Cross slide travel | 115 mm |
| Tailstock quill travel | 50 mm |
| Taper of tailstock quill | MT2 |
| Motor | 750W |
| MILLING /DRILLING | |
| Taper of spindle bore | MT2 |
| Spindle stroke | 50 mm |
| Spindle speed | 50-2250 rpm |
| Max. distance spindle to table | 280 mm |
| Max. distance spindle to column | 170 mm |
| Motor | 500W |
| Packing size | 1270/1520x670x930 mm |
| Net weight | 180/195 kg |
