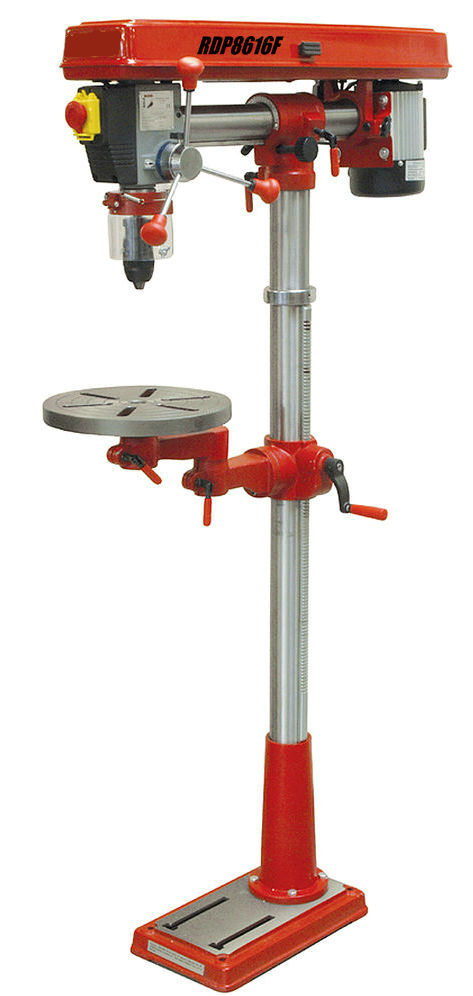

CHEAP DRILL PRESS
Quantity: -
RDP8616
- features solid, polished base with T-nuts
- aluminum motor according IP54
- torsion-resistant, solid and polished steel column
- the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
- spindle protection cover
- adjustable drill depth stop with scale for accurate drill depth control
included in delivery: automatic chuck 1-16mm, B16
max. drilling capacity
16mm
spindle speeds
(5) 500-2500 rpm
voltage
230V or 400V
distance spindle to column
430mm
spindle holder
MT2
max. spindle travel
80mm
max. distance chuck to table
825mm
max. distance chuck to base
1315mm
total height
1620mm
table dimensions
Ø300mm
base
456x280mm
motor power S1(100%)/S6
600W/900W
net weight
58kg
overall dimensions (LxWxH)
320x360x910mm
packaging dimensions (LxWxH)
1400x490x250m
