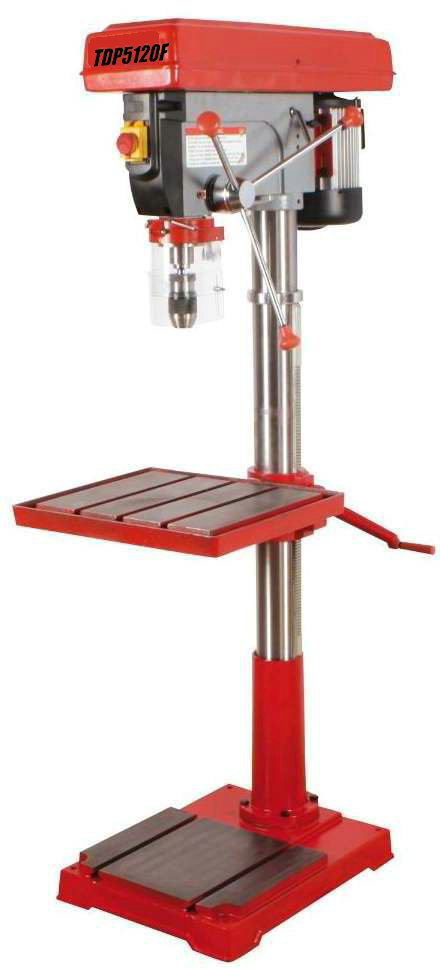

TDP5120F
included in delivery: automatic chuck 1-16mm, B16
max. drilling capacity | 32mm |
spindle speeds | (24) 60 - 3480 rpm |
voltage | 400 V |
distance spindle to column | 257mm |
spindle holder | MT4 |
max. spindle travel | 120mm |
max. distance chuck to table | 680mm |
max. distance chuck to base | 1160mm |
total height | 1710mm |
table dimensions | 475x420mm |
base | 580x450mm |
motor power S1(100%)/S6 | (2-step motor) 700/1100W // 1,5/2,2kW |
net weight | 143kg |
overall dimensions (LxWxH) | 570x870x1710 mm |
Verpackaging dimensions (LxWxH) | 330x1475x650 mm |
