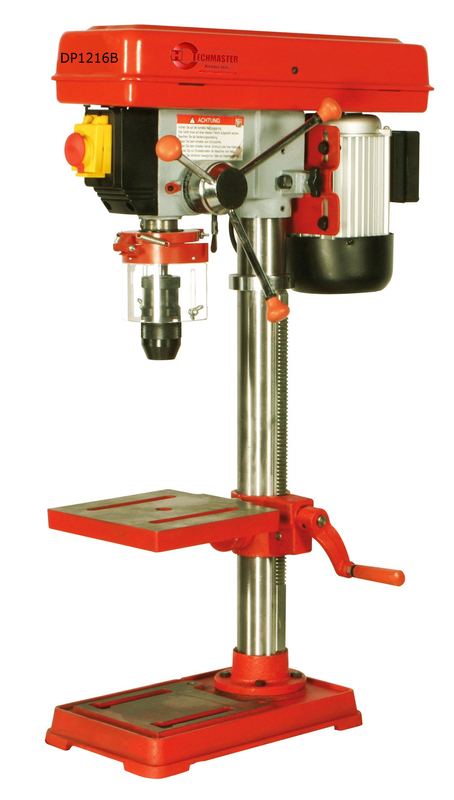

CHEAP DRILL PRESS

Quantity:




Inquire Add to Basket

Model:
DP1216B

Product Description

Main Feature :
Convincing Arguments: Quality, Efficiency and Price
-Precisely Machined Working Table, can be inclined by ±45°and turnable by 360°
-Solid, Largely Dimensioned Base Plate with slots, Heavily Ribbed at the rear side
-Million fold Proven Quality
-Fully Equipped Machine, the user can Immediately start to work productively
-Smooth running and powerful quality aluminium electrical motor
-400 volt types Equipped with Cam Switch for Right-handed / Left-handed Rotation
-Certificate of Original (CE, FORM A, FORM E, FORM F )

Technical Data :

Product Name:	Cost-efficient 16mm Bench Type Drill Press with V-belt
Product Item:	DP1216B
Drilling Capacity (steel) :	Ø 16mm
Spindle stroke :	60mm
Spindle Speed :	515-2580RPM//180-2740 RPM
Number of steps :	5 steps /12 steps
Table Size :	400 X 250 mm
Drilling Table Turnable :	360°
Drilling Table Slewable :	±45°
Distance Spindle to Table :	530mm
Working Surface Pedestal :	220 X 220mm
Over height	820mm
Electrical connection :	230V or 400V
Motor power :	180w(1/4HP or 250w(1/3HP)
Column Diameter :	Ø 60 mm
Packing Size :	67 X 45 X 28 Cm
Gross Weight :	34KGS
Loading Quantity :	330 PCS / 1 X 20" GP Container
Standard Accessory :	Drill Chuck Morse Taper
