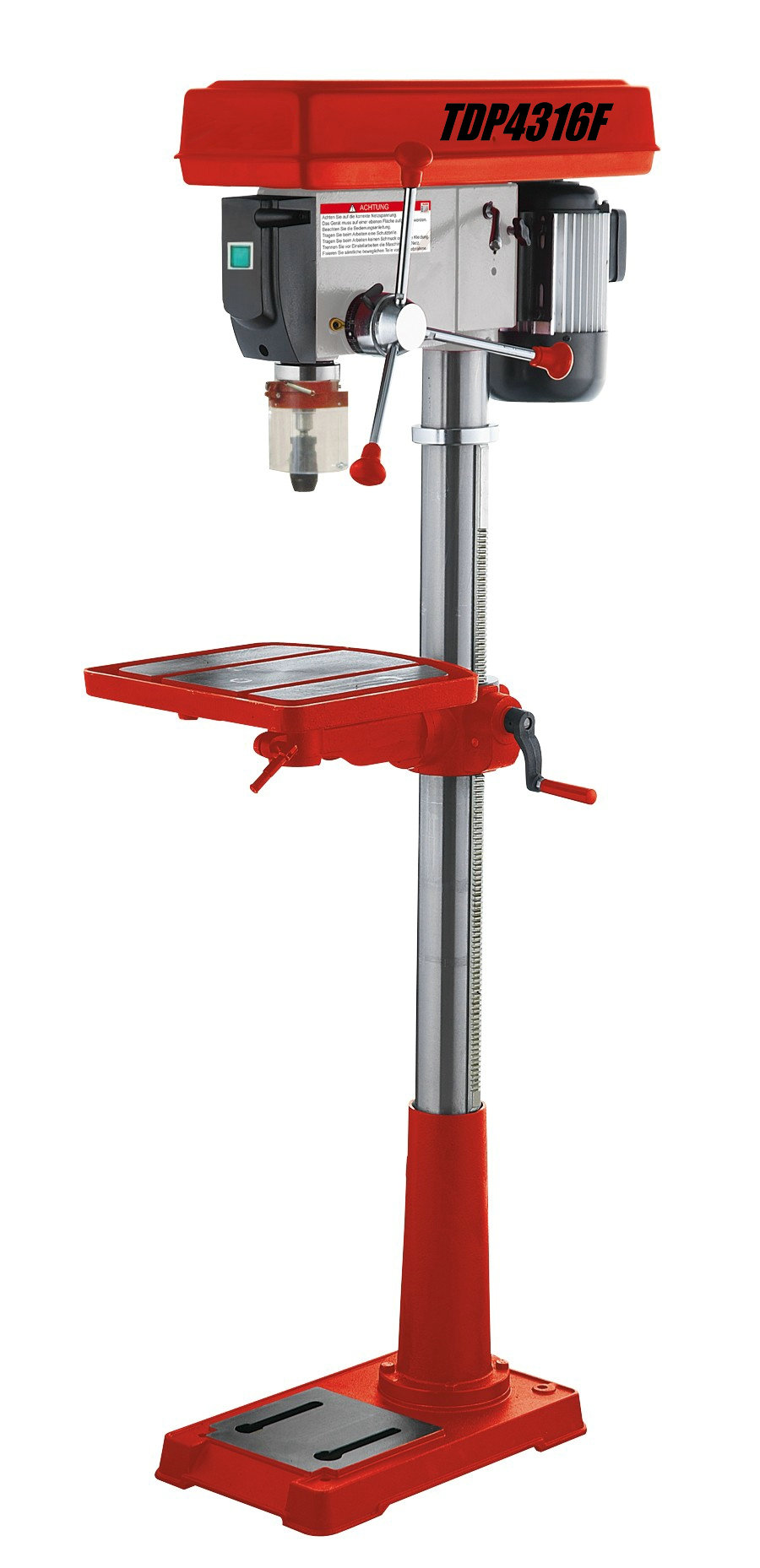

TDP4316F
included in delivery: automatic chuck 1-16mm, B16
max. drilling capacity | 25mm |
spindle speeds | (16) 160 - 3000 rpm |
voltage | 400 V |
distance spindle to column | 257mm |
spindle holder | MT3 |
max. spindle travel | 80mm |
max. distance chuck to table | 680mm |
max. distance chuck to base | 1160mm |
total height | 1635mm |
table dimensions | 356x356mm |
base | 505x345mm |
motor power S1(100%)/S6 | (2-step motor) 1100W |
net weight | 81kg |
overall dimensions (LxWxH) | 570x870x1710 mm |
Verpackaging dimensions (LxWxH) | 141x54x25cm |
