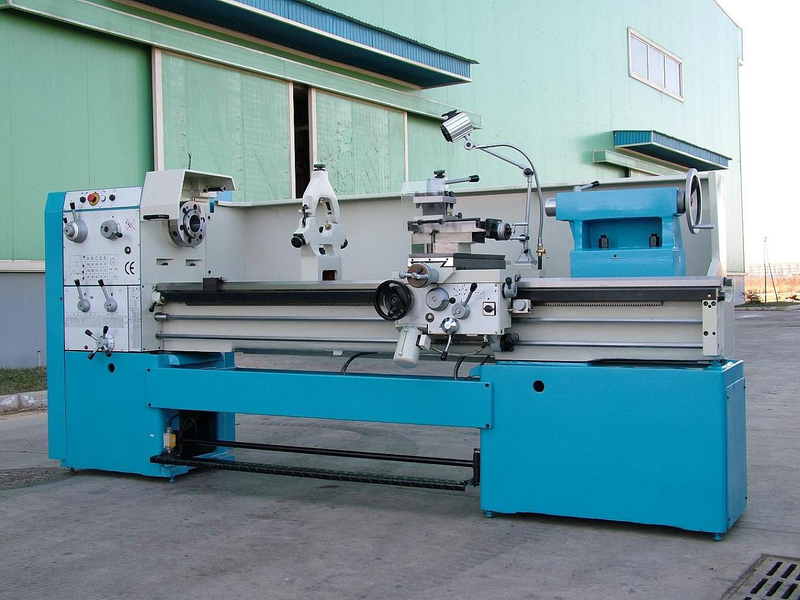

CHEAP PRICE HEAVY DUTY PRECISION LATHE CD6250C

Quantity:

Specifications:
CD6250C
1000MM/1500MM/2000MM

metal turning lathe,
3-jaw chuck 315mm, 4-jaw face plate 400mm,
clamping disc 400mm, Mitnehmerscheibe 250 mm,
steady rest, life rest, electro-magnetic brake,
automatically switchable and with food operation,
cooling system, halogen lamp, splashguard,
chip tray can be pulled out forward, quadruple tool holder,
life centre MT5, keyless chuck MT5/1-16,
bed removable, hardened and grinded bed and gearwheels
incl. Multifix Set B and three-axial digitaldisplay SDS2-3L

Technical data:
center height 250 mm
distance between centers 1000/1500 /2000mm
max. diameter of workpiece 500 mm
spindle mount Camlock 8
hollow spindle 80 mm
tailstock cone MK5
spindle speed 24bis 1600 rpm
speeds 15
main engine power 7,5 kW
max. diameter of workpiece o.t. mounting 300 mm
max. diameter of workpiece o.t. bridge 630 mm
feed-length of feed 0,07 - 4 mm/Umdrehung
feed-tilting feed 0,02 - 1,35mm/Umdrehung
metrical-thread 0,5 - 28 mm Steigung
thread inch 56 - 1 Gänge/inch
modul threads Modul 0,5 - 3,5
diameter of the pinole/way 65/120 mm
weight 1910 kg
