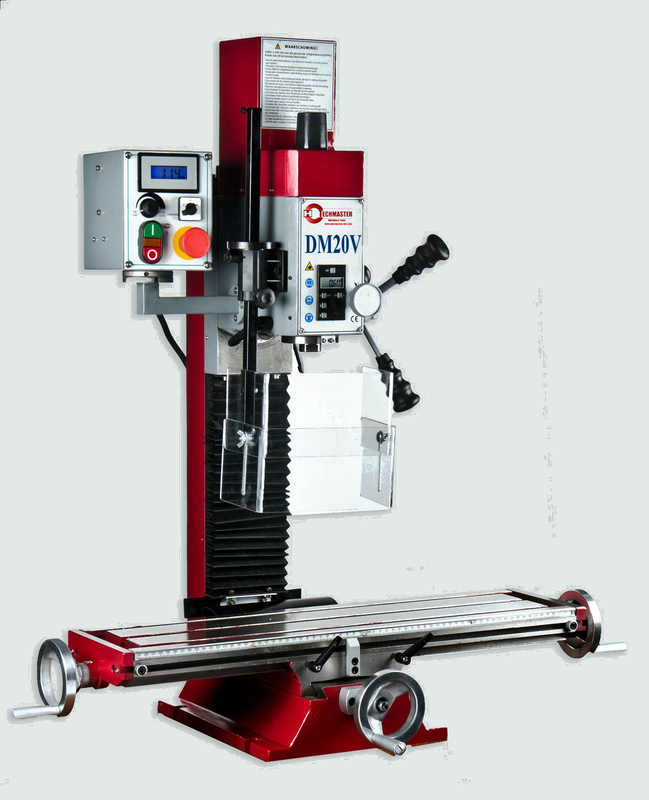

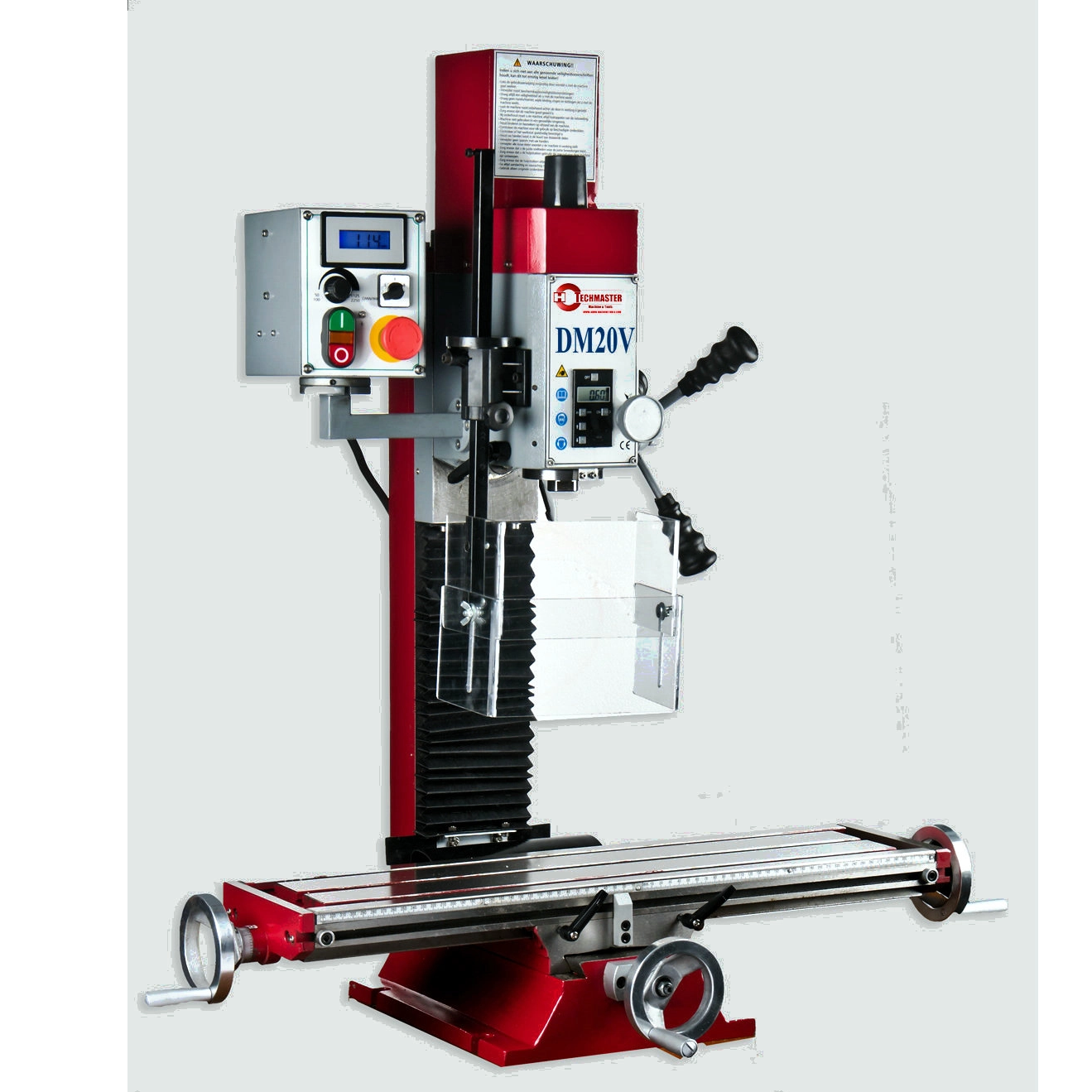

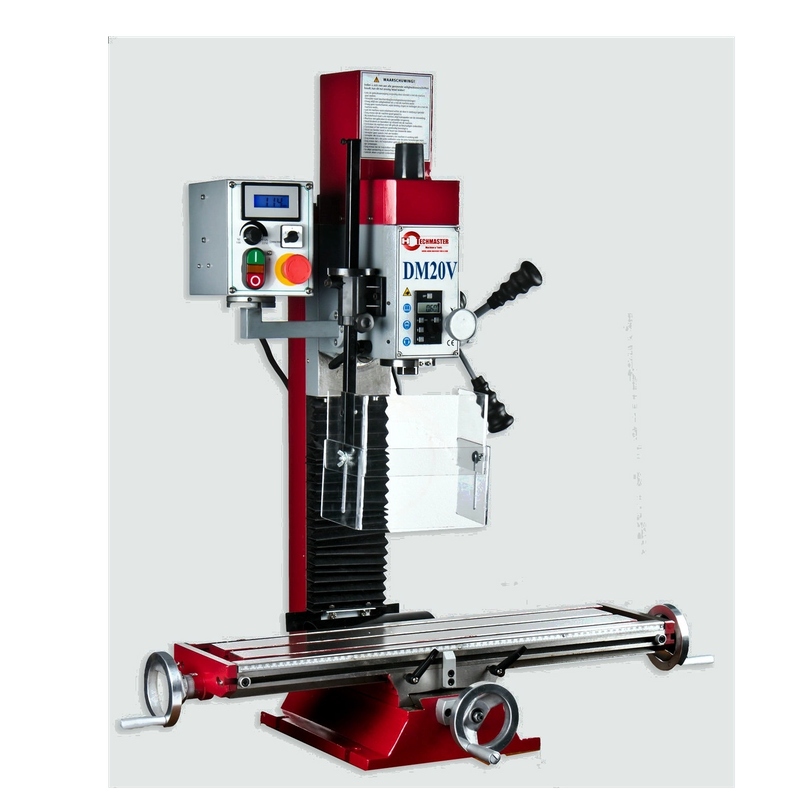

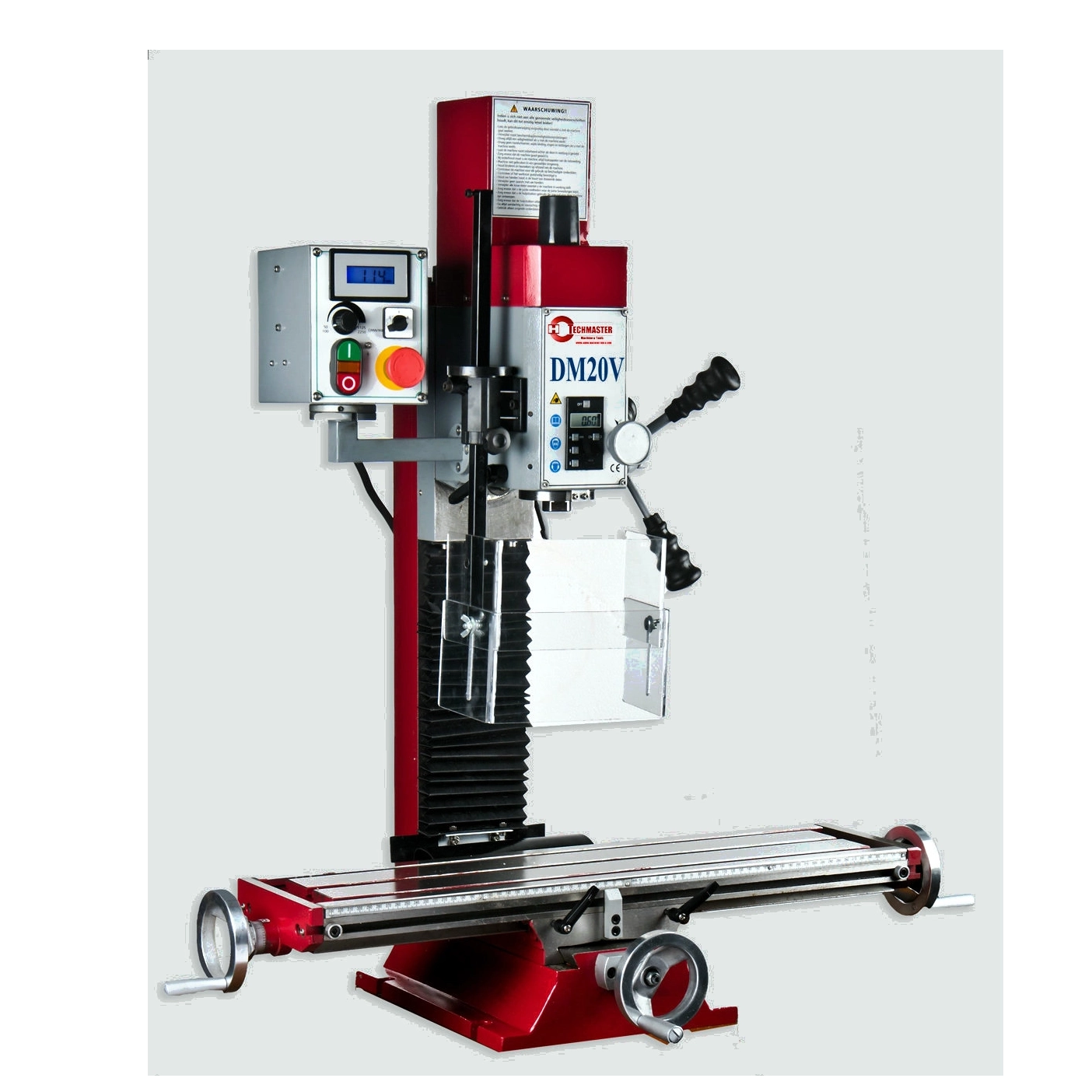

| MODEL | DM20V |
Max. drilling capacity | 20 mm |
Max. end milling capacity | 16 mm |
Max. face milling capacity | 63 mm |
Table size | 500/700x180 mm |
Table travel (X,Y) | 280/480x155 mm |
T-slot | 3x12 mm |
Spindle taper | MT2 |
Spindle stroke | 50 mm |
Step of spindle speeds | Variable |
Range of spindle speeds | 50-2250 rpm |
Spindle incline angle | ±90° |
Distance from spindle to column | 201 mm |
Distance from spindle nose to table | 280 mm |
Motor | 600W |
Packing size | 670/870X550X860 mm |
Net weight | 103/113 kg |
