• Drilling, tapping, boring, reaming ；
•Strong column,Vice table,Gear drive, lower noise。；
•Heavy-duty tapered roller bearing spindle,Positive spindle lock。

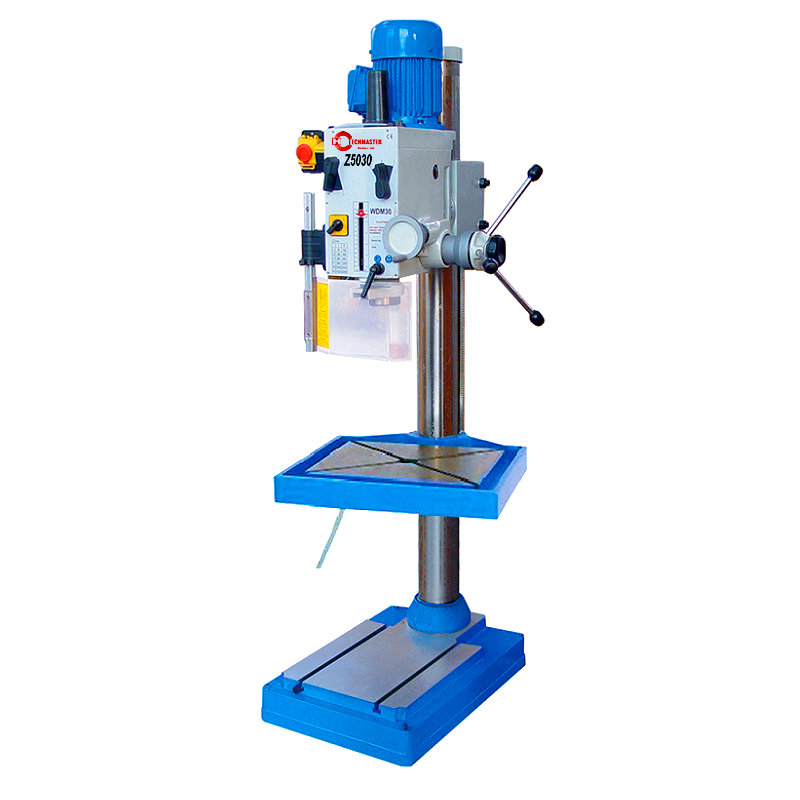

| Modle | Z5030 |
| Max,drilling capacity | Φ30mm(MT30)/Φ30mm(MT4) |
| Spindle taper | MT3/MT4/R8/ISO30 |
| Spindle stoke | 120 |
| Step of spindle speeds | 6 |
| Range pf spindle speeds | 75-1600RPM |
| Spinlde feed range | 0.01/0.18/0.26mm/rev. |
| Diameter of column | Φ115mm |
| Distance from spindle to column | 272mm |
| Distance from spindle nose to table | 610mm |
| Diatance from spindle end to base | 1180mm |
| Table size | 540x470mm |
| T-solt | 3x12mm |
| Base size | 650x450mm |
| Main motor | 0.85/1.1KW |
| Packing size | 740x720x1820mm |
| Net weight | 330kg |
