| Main specifications | |||||

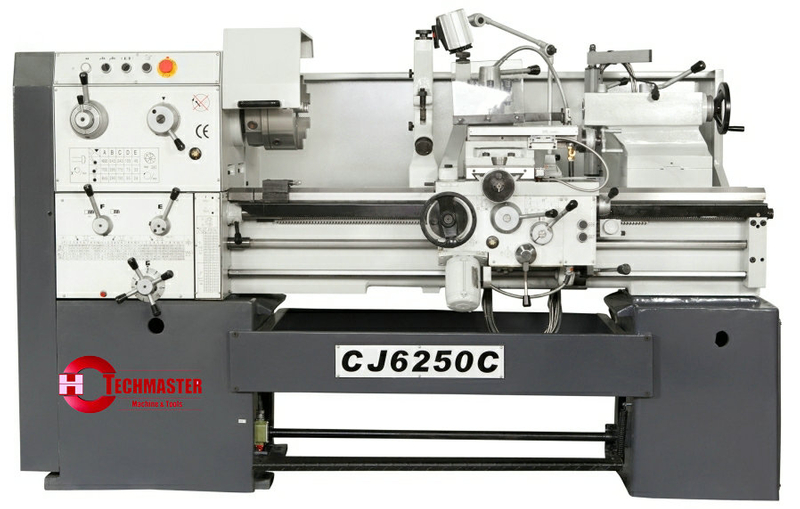

| Model | | CJ6250C | |||
| CAPACITIES | Max.swing over bed | 500mm(20″) | |||
| Max.swing over Cross side | 325mm(13″) | ||||
| Center distance | 1000,1500,2000mm | ||||
| Max.swing over gap | 530mm(21″) | 580mm(23″) | 630mm(25″) | 730mm(29″) | |
| Effective length of gap | 260mm(10 1 /4″) | ||||
| Bed width | 330mm(13″) | ||||
| HEADSTOCK | Spindle hole | 80mm(2 3 /5″) | |||
| Spindle nose | ISO-C8 or ISO-D8 | ||||
| Spindle taper | Metric 85mm | ||||
| Spindle speeds(Number) | 24-1600rpm(15 steps) | ||||
| FEEDS | Metric threads range(Kinds) | 0.5-28mm(66 kinds) | |||
| Inch threads range(Kinds) | 1-56 inch(66 kinds) | ||||
| Moudle threads range(Kinds) | 0.5-3.5mm(33 kinds) | ||||
| Diametral threads range(Kinds) | 8-56D.P(33 kinds) | ||||
| Longitudinal feeds range | 0.072-4.038mm/rev(0.0027-0.15inch/rev)(66 kinds) | ||||
| | Cross feeds range | 0.036-2.019mm/rev(0.0013-0.075inch/rev)(66 kinds) | |||
| | rapid traveliing speed of carriage | 5m/min(16.4ft/min) | |||
| CARRIACGE | Leadscrew size:Diameter pitch | 35mm/6mm or 35mm/1/4″ | |||
| Cross side travel | 300mm(13″) | ||||
| Compound rest travel | 130mm(5″) | ||||
| TAILSTOCK | Cross-section size of toolshank | 25*20mm/(1*6/8inch) | 25*25 | ||
| Taper of tailstock sleeve | Morse No.5 | ||||
| Diameter of tailstock sleeve | 65mm(2 1 /2″) | ||||
| MOTOR | Travel of tailstock sleeve | 120mm(4 3/ 4″) | |||
| Main drive motor | 4.0kw or 5.5kw or 7.5kw | 7.5kw | |||
| Coolant pump motor | 0.125kw | ||||
| | Rapid traverse motor | 0.12kw | |||
| PACKING SIZE(L*W*H) | | ||||
| Center distance: 1000mm | 2420*1150*1800mm(96*46*71in.) | ||||
| 1500mm | 2920*1150*1800mm(115*46*71in.) | ||||
| 2000mm | 3460*1150*1800mm(137*46*71in.) | ||||
| | | ||||
| Net weight/Gross Weight(kgs) | | ||||
| Center distance: 1000mm | 1640/2290kg | 1680/2330kg | 1700/2350kg | 1800/2500kg | |
| 1500mm | 1850/2550kg | 1890/2590kg | 1910/2610kg | 2010/2760kg | |
| 2000mm | 2090/2860kg | 2130/2880kg | 2150/2920kg | 2250/3070kg | |
| | | | | ||
| STANDARD ACCESSORIES | OPTIONAL ACCESSORIES | ||||
| 1.3-jaw chunck 250mm | | 1.Steady rest | | 6.longitudinal automatic trip | |
| 2.Driving plate | | 2.Follower rest | 7.Live center | ||
| 3.Center¢er sleeve | | 3.4-jaw chuck 320mm | 8.Quick change toolpost | ||
| 4.Wrenches | | 4.Face plate | | 9.Taper copy ruller | |
| 5.Oil gun | | 5.Thread dial | | 10.4-position longitudinal automatic trip | |
| 6.Operation manual | | | | ||
