CJ6266YC PRECISION LATHE/ 105MM SPINDLE / 36-1600RPM/13-1400RPM
Quantity: -
CJ6266YC-CJ6280YC
-
TECHMASTER
Product Description
The surtace of the bedways is supersonic frequency.
The spindle bore size is 105mm. The spindle system is high in rigitidy and accuracy.
There is no need for change gears. The machine can turn about 89 kinds of metric, Inch, Module and D. P. Threads.
An automatic stopping device is used to realize automatic stop for the machining of a workpiece of a certain length

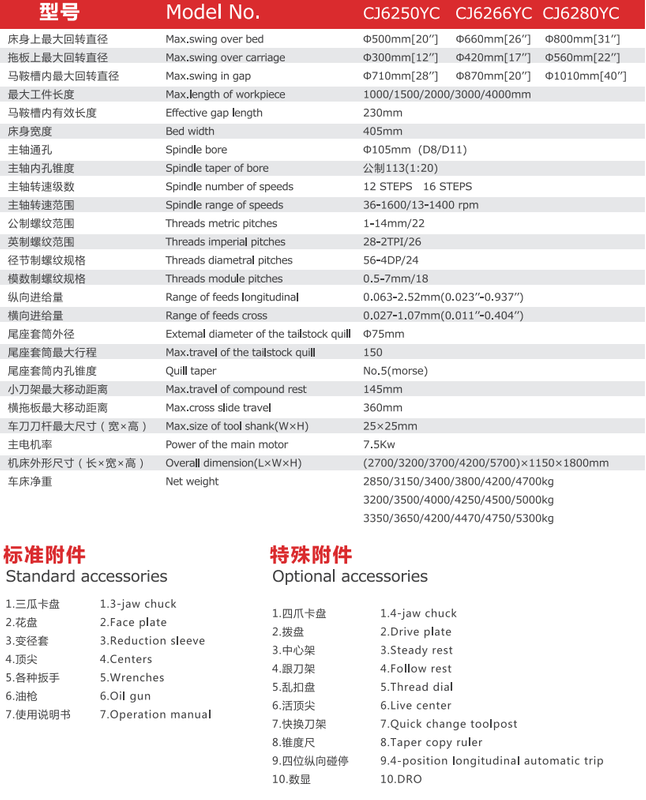

Model CJY6250C CJ6280YC CAPACITIES Max. swing over bed Φ 500mm Φ 800mm Max. swing over Cross side Φ 300mm Φ 560mm Center distance 1000mm(40″ ) 1500mm(600″ ) 2000mm(80″ ) 3000mm(118″ ) Max. swing over gap Φ 710(28″ ) Φ 1010(40″ ) Effective length of gap 230mm(9″ ) Bed width 405mm HEADSTOCK Spindle hole Φ 105mm Spindle nose D8 Spindle taper 113mm 1: 20 Spindle speeds(Number) 36~1600r. p. m(12steps) 30~1400r. p. m(12steps) FEEDS Metric threads range(Kinds) 1~14mm/22kinds Inch threads range(Kinds) 28~2T. P. L/26kinds Moudle threads range(Kinds) 0.5~7mm/18kinds Diametral threads range(Kinds) 56~4 D. P/24kinds Longitudinal feeds range 0.063-2.52(0.023″ -0.937″ ) Cross feeds range 0.027-1.07(0.011″ -0.404″ ) Leadscrew size: Diameter pitch Φ 40mm/12mm 12.7mm CARRIACGE Cross side travel 360mm(14-3/16″ ) Compound rest travel 145mm(5-3/4″ ) Cross-section size of toolshank 25*25mm(1″ *1″ ) TAILSTOCK Taper of tailstock sleeve M. T. NO. 5 Diameter of tailstock sleeve Φ 75mm(2-61/64″ ) Travel of tailstock sleeve 150mm(5-29/32″ ) MOTOR Main drive motor 5.5kw/7.5kw PACKING SIZE(L*W*H) Center distance: 1500mm 3000*1150*1800mm 2000mm 3500*1150*1800mm 3000mm 4500*1150*1800mm Net weight/Gross Weight(kgs) Center distance: 1500mm 3150/3800kgs 3650/4300kgs 2000mm 3400/4100kgs 4200/4900kgs 3000mm 4750/4820kgs
Product Description
The surtace of the bedways is supersonic frequency.
The spindle bore size is 105mm. The spindle system is high in rigitidy and accuracy.
There is no need for change gears. The machine can turn about 89 kinds of metric, Inch, Module and D. P. Threads.
An automatic stopping device is used to realize automatic stop for the machining of a workpiece of a certain length
Model CJY6250C CJ6280YC CAPACITIES Max. swing over bed Φ 500mm Φ 800mm Max. swing over Cross side Φ 300mm Φ 560mm Center distance 1000mm(40″ ) 1500mm(600″ ) 2000mm(80″ ) 3000mm(118″ ) Max. swing over gap Φ 710(28″ ) Φ 1010(40″ ) Effective length of gap 230mm(9″ ) Bed width 405mm HEADSTOCK Spindle hole Φ 105mm Spindle nose D8 Spindle taper 113mm 1: 20 Spindle speeds(Number) 36~1600r. p. m(12steps) 30~1400r. p. m(12steps) FEEDS Metric threads range(Kinds) 1~14mm/22kinds Inch threads range(Kinds) 28~2T. P. L/26kinds Moudle threads range(Kinds) 0.5~7mm/18kinds Diametral threads range(Kinds) 56~4 D. P/24kinds Longitudinal feeds range 0.063-2.52(0.023″ -0.937″ ) Cross feeds range 0.027-1.07(0.011″ -0.404″ ) Leadscrew size: Diameter pitch Φ 40mm/12mm 12.7mm CARRIACGE Cross side travel 360mm(14-3/16″ ) Compound rest travel 145mm(5-3/4″ ) Cross-section size of toolshank 25*25mm(1″ *1″ ) TAILSTOCK Taper of tailstock sleeve M. T. NO. 5 Diameter of tailstock sleeve Φ 75mm(2-61/64″ ) Travel of tailstock sleeve 150mm(5-29/32″ ) MOTOR Main drive motor 5.5kw/7.5kw PACKING SIZE(L*W*H) Center distance: 1500mm 3000*1150*1800mm 2000mm 3500*1150*1800mm 3000mm 4500*1150*1800mm Net weight/Gross Weight(kgs) Center distance: 1500mm 3150/3800kgs 3650/4300kgs 2000mm 3400/4100kgs 4200/4900kgs 3000mm 4750/4820kgs
