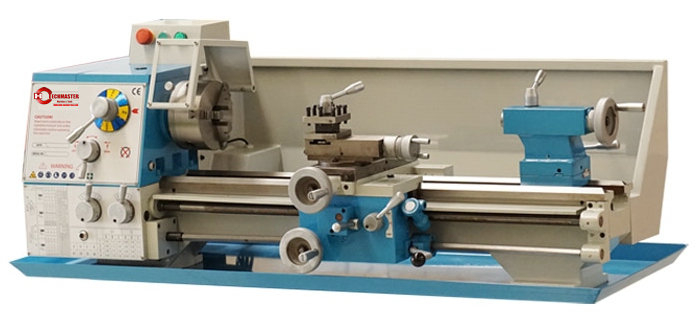

CJM280 BENCH LATHE 500/750
Quantity: -
CJM280 500MM/750MM
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 80-1600rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
VARIO SPEED IS AVALIABLE .

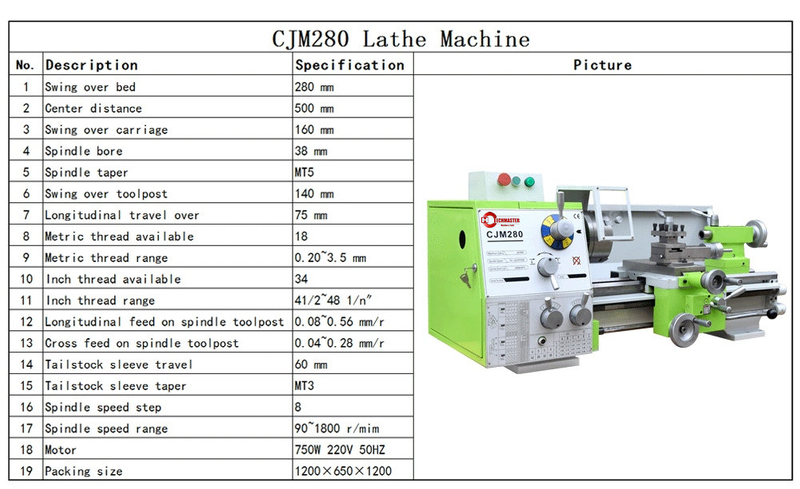

Model
CJM280 GEARED LATHE
Swing over bed
280 mm
Center distance
500 mm
750mm
Swing over carriage
160 mm
Spindle bore
38 mm
Spindle taper
MT.5#
Swing over toolpost
140 mm
Longitudinal travel over toolpost
75 mm
Metric thread available
18
Metric thread range
0.20~3.5 mm
Inch thread available
34
Inch thread range
41/2~48 1/n″
Module thread available
16
Module thread range
0.20~1.75
Pitch thread available
24
Pitch thread range
16~120 /DP
Longitudinal feed on spindle toolpost
0.08~0.56 mm/r
Cross feed on spindle toolpost
0.04~0.28 mm/r
Tailstock sleeve travel
60 mm
Tailstock sleeve taper
MT.3#
Spindle speed step
8
Spindle speed range
90~1800 r/mim
Motor
750W 380V 50HZ (220V 50HZ)
Packing size
1450×650×1200
1200×650×1200
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 80-1600rpm.
Easy operating gear box has various feeds and thread cutting function.
With or without cabinet according to requirement.
VARIO SPEED IS AVALIABLE .Model
CJM280 GEARED LATHE
Swing over bed
280 mm
Center distance
500 mm
750mm
Swing over carriage
160 mm
Spindle bore
38 mm
Spindle taper
MT.5#
Swing over toolpost
140 mm
Longitudinal travel over toolpost
75 mm
Metric thread available
18
Metric thread range
0.20~3.5 mm
Inch thread available
34
Inch thread range
41/2~48 1/n″
Module thread available
16
Module thread range
0.20~1.75
Pitch thread available
24
Pitch thread range
16~120 /DP
Longitudinal feed on spindle toolpost
0.08~0.56 mm/r
Cross feed on spindle toolpost
0.04~0.28 mm/r
Tailstock sleeve travel
60 mm
Tailstock sleeve taper
MT.3#
Spindle speed step
8
Spindle speed range
90~1800 r/mim
Motor
750W 380V 50HZ (220V 50HZ)
Packing size
1450×650×1200
1200×650×1200
