CJM320C 500/MM750MM
Quantity: -
CJM320C 500MM/750MM
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
Spindle speed range 80-1600rpm.
Easy operating gear box has various feeds and thread cutting function.

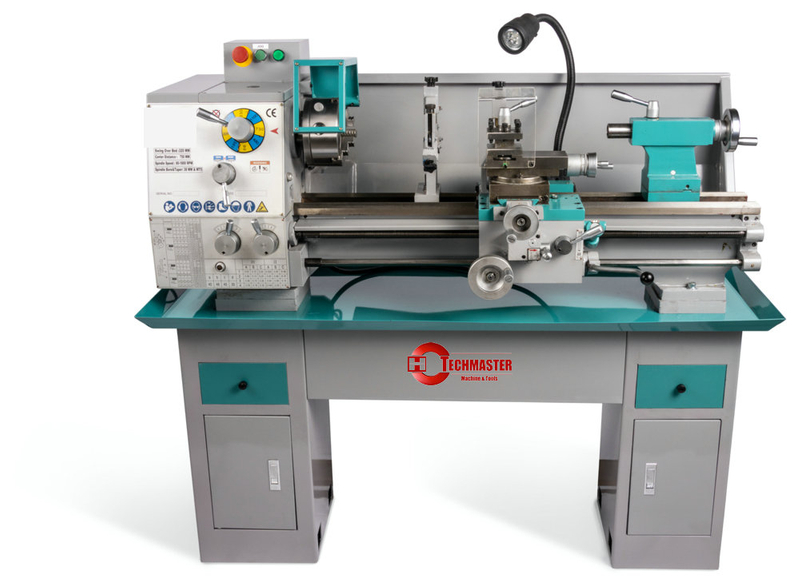

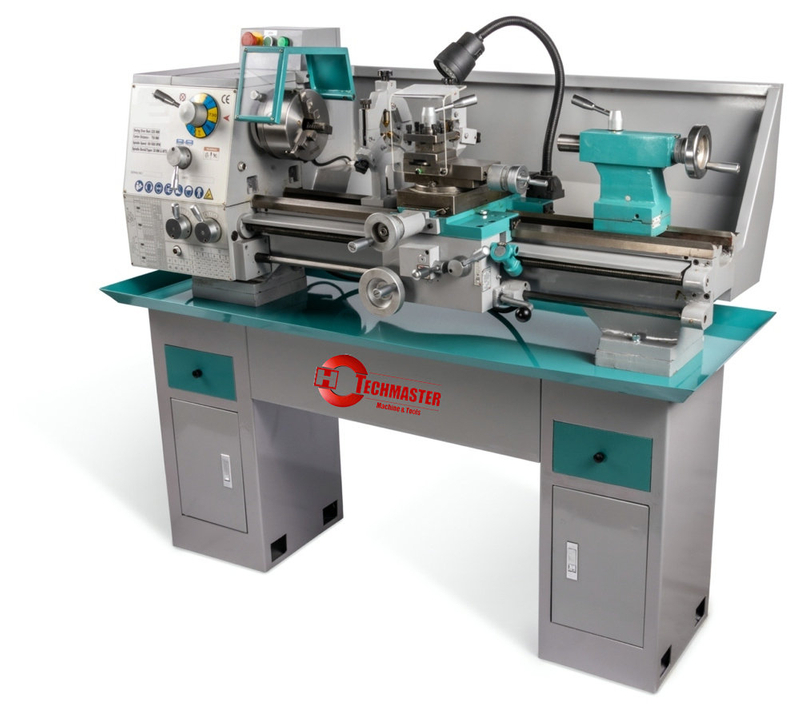

With or without cabinet according to requirement.
VARIO SPEED IS AVALIABLE .Model

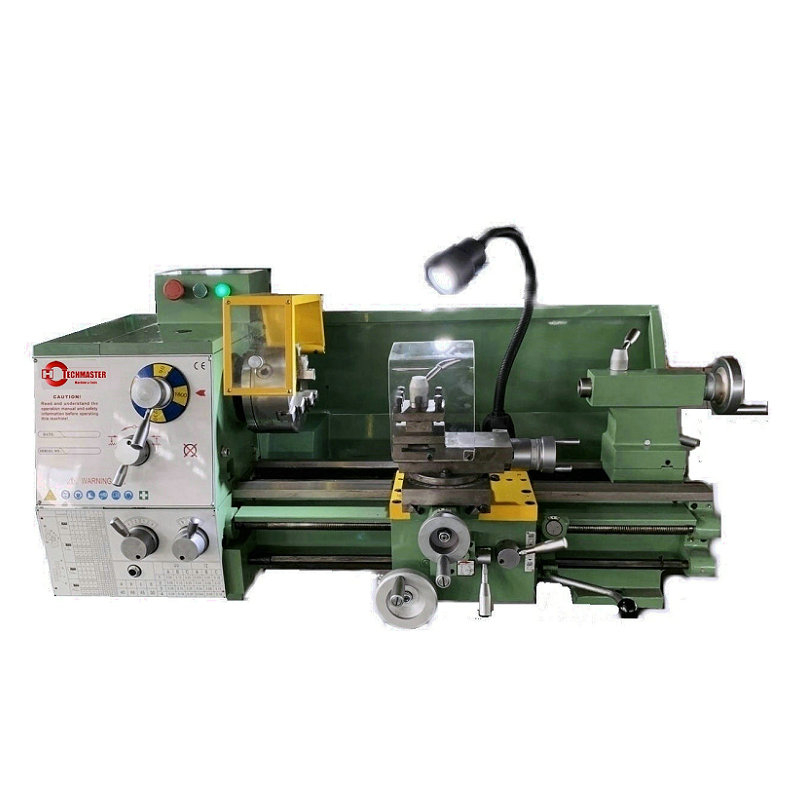

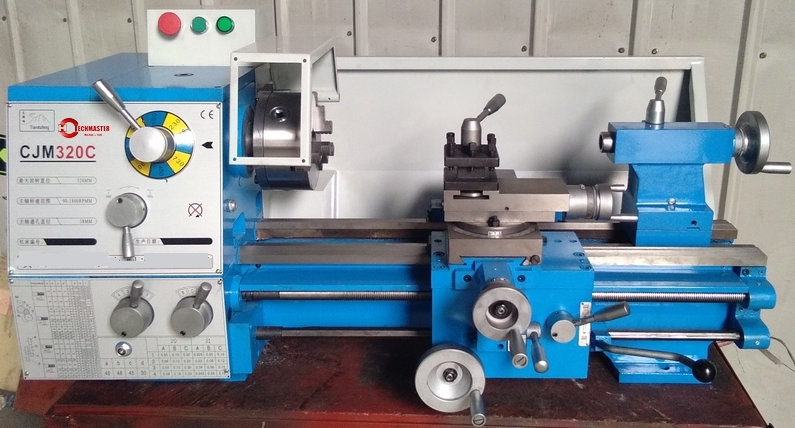

CJM320C GEARED LATHE
Swing over be
320mm
Center distance
500 mm
750mm
Swing over carriage
200 mm
Spindle bore
38 mm
Spindle taper
MT.5#
Swing over toolpost
160 mm
Longitudinal travel over toolpost
100 mm
Metric thread available
21
Metric thread range
0.20~3.5 mm
Inch thread available
31
Inch thread range
8-120 1/n″
Module thread available
16
Module thread range
0.20~1.75
Pitch thread available
24
Pitch thread range
16~120 /DP
Longitudinal feed on spindle toolpost
0.1~1.4 mm/r
Cross feed on spindle toolpost
0.045~0.60 mm/r
Tailstock sleeve travel
80 mm
Tailstock sleeve taper
MT.3#
Spindle speed step
8
Spindle speed range
90~1800 r/mim
Motor
750W 380V 50HZ (220V 50HZ)
Packing size
1250×650×1200
1500×650×1200
