Quality Machine Tools
CJM360 X600MM

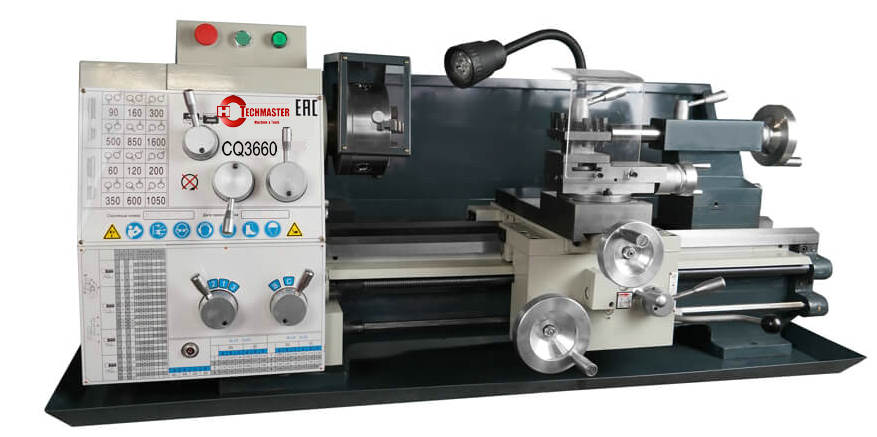

TOP choice for workshop geared head lathe
1, big spindle hole , for 40.5mm shaft to cross through

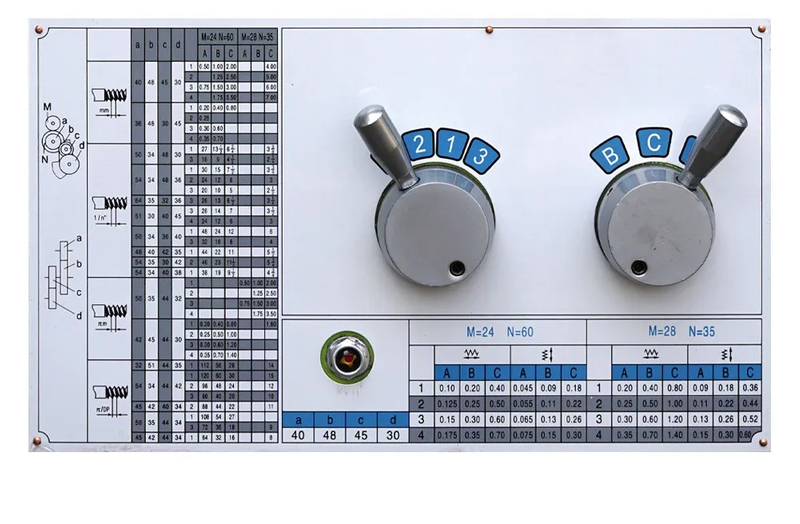

2, wide range thread cutting , which no need change the change gears to achieve easily
3, swing over bed is 360mm which can process metals like engine lathe in workshop
4, 600mm and 750mm two size distance can be choose
5,Hardened bed and heavy regidit cast iron can sure the long working life for people .
6, CE Certificate and protection can be choose
Specifications | CJM360/750MM |
Max.swing over bed | 360mm |
Max.processing length | 750mm |
Max.swing voer corss slide | 200 mm |
Spindle hole | 40.5mm |
Spindle taper | MT.5# |

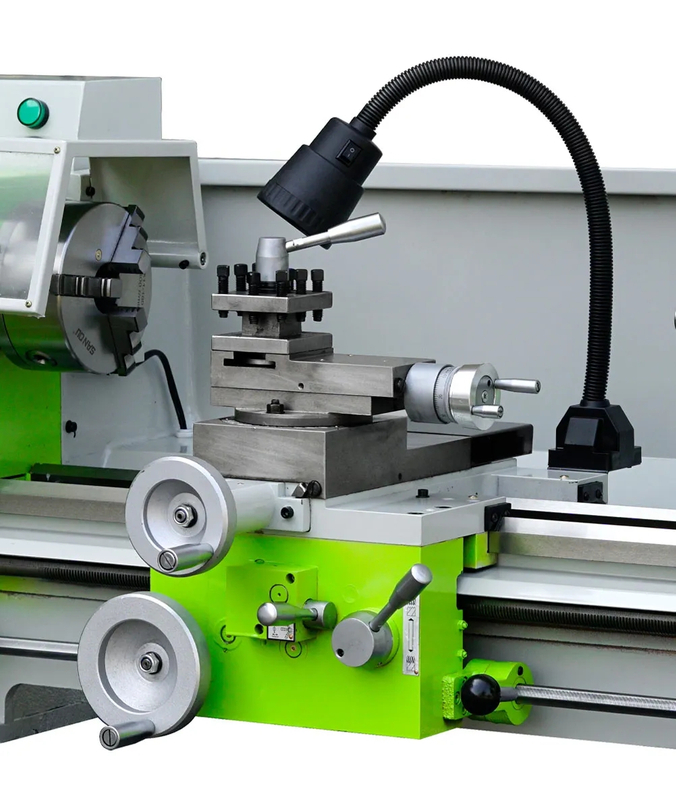

Compound cross travel | 160mm |
Compound longitudinal travel | 100mm |
Metric thread kinds | 22 |
Metric thread range | 0.20~7mm |
Inch thread kinds | 45 |
Inch thread range | 21/2~48 1/n″ |
Module thread kinds | 21 |
Module thread range | 0.20~3.5mm |
Diameter thread kinds | 31 |
Diameter thread range | 8~120 1/n″ |
Longitudinal feed at spindle every turn | 0.10~1.40mm/r |
Cross feed at spindle every turn | 0.045~0.60mm/r |
Max.travel of tailstock sleeve | 80mm |
Tailstock taper | MT.3# |

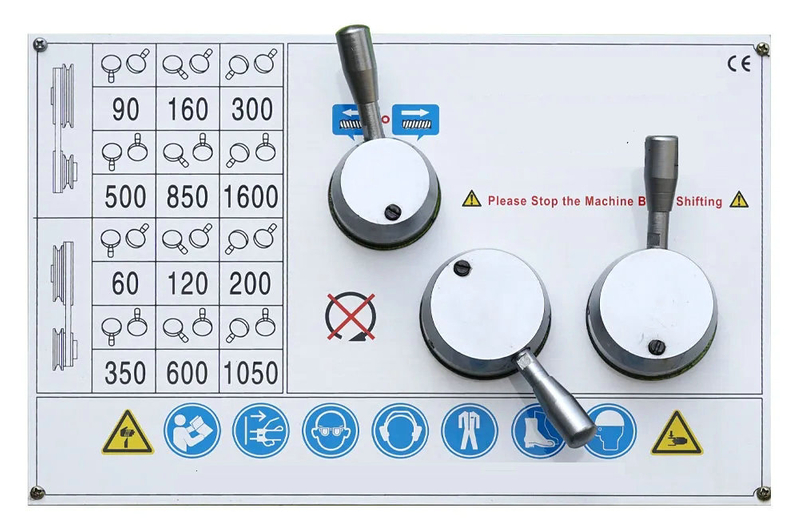

Spindle speed steps | 12 |
Spindle speed range | 60~1600r/mim |
Main motor | 750W 220/380V 50HZ |
Net weight | 390㎏ |
Gross weight | 450㎏ |
Overall dimension (L*W*H) | 1370×685×1360 |
Packing size (L*W*H) | 1470×800×1470 and 1250×700×1300 |
