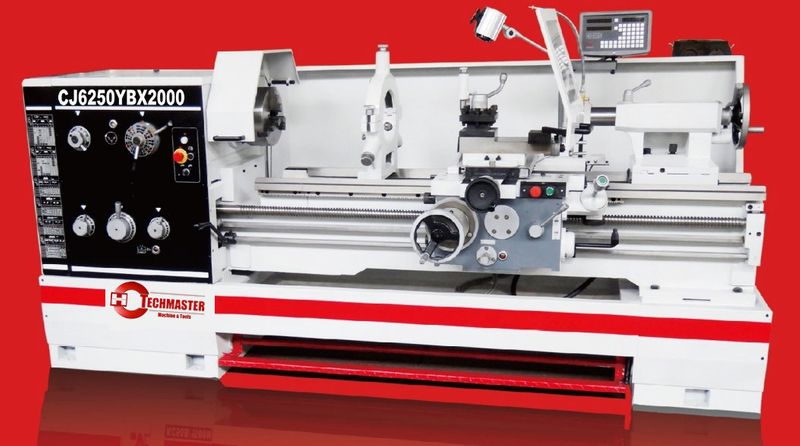

Product Introduction of Conventional Metal Lathe
CJ-YB series turning Lathe is These conventional lathes are available with a range of swings over the bed from 20 inches - 31 inches. All of these conventional engine lathes feature a gap bed. Our lathes are also available with a variety of distances between centers, from 39 inches to 157 inches. providing full power throughout all speed ranges. Along with our lathes, We offer many other options in conventional lathes, including tools, chucks etc.
One of the easiest precision lathes to operate in its class, while producing pinpoint accuracy for the finest finishes. In addition to calculated precision and total control, The horizontal lathe machine offer the bulk and horsepower necessary to effortlessly take on the heaviest chip loads. Standard on each machine is a quick-change gearbox for cutting inch, metric, module and diametrical pitch threads without change gears.
Products Specification
Model NO. | CJ6250YB | CJ6266YB | CJ6280YB |
Swing over bed | Φ500mm(20’’) | Φ660mm(26’’) | Φ800mm(31’’) |
Swing over carriage | Φ300mm(12’’) | Φ420mm(17’’) | Φ560mm(22’’) |
Max. Swing in gap | Φ710mm(28’’) | Φ870(34’’) | Φ1010(40’’) |
Max. Length of workpiece | 1000/1500/2500/2000/3000/4000mm | ||
Effective gap length | 230mm | ||
Bed width | 405mm | ||
Spindle bore | Φ82mm | ||
Spindle taper of bore | |||
Spindle number speed | 24 steps | ||
Spindle range of speed | 9-1600rpm | ||
Threads metric pitches | 0.5-224mm/48 kinds | ||
Threads imperial pitches | 72-1/8TPI/46 kinds | ||
Thread diametral pitches | 56-1/4D/45 kinds | ||
Threads module pitches | 0.5-112mm/42 kinds | ||
Range of feeds longitudinal | 0.028-6.43mm(0.001’’-0.2392’’) | ||
Range of feeds cross | 0.012mm-2.73mm(0.004’’-0.1032’’) | ||
External diameter of the tailstock quill | Φ75mm | ||
Max. Traverse of the tailstock quill | 150 | ||
Quill taper | NO. 5 (morse) | ||
Max. Travel of compound rest | 145mm | ||
Max. Cross slide travel | 360mm | ||
Max. Size of tool shank(WxH) | 25x25mm | ||
Power of main motor | 7.5kW/9kW | ||
Over all size(LxWxH) | 2700/3200/3700/4200/5700)x1150x1800mm | ||
Net weight: | 2850-5300kg |
