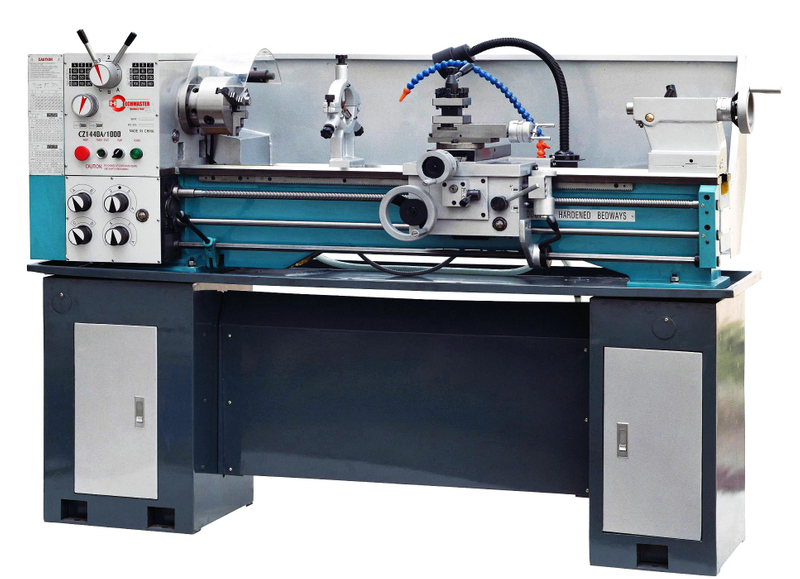

CLUTCH QUALITY ENGINE LATHE CZ1440A

Quantity:
  • CZ1340G-CZ1440G
Detail information of exhibits

1.Features

1. Supersonic frequency hardened bed ways
2. Precision roller bearing for spindle
3. High quality steel, ground and hardened gear inside headstock
4. Easy and fast operating gearbox
5. Enough strong power motor
6. ASA D4 camlock spindle nose
7. Various threads cutting functions available



2.Specification

BENCH LATHE                          CZ1440A
Main dataSwing over bed φ 355mm
Swing over carriage φ 220mm
Swing over gap φ 500mm
Width of bed-way186mm
Distance between centers1000mm
SpindleTaper of spindleM. T. 5
Spindle diameterφ 38mm
Step of speed8 Steps
Range of speed70-2000 rpm
HeadD1-4
Thread and feed systemMetric thread  26kinds (0.4~7mm)
Inch thread34kinds(4~56T. P. I)
Module thread16 kinds(0.35~5M. P)
Diametral thread36 kinds(6~104D. P)
Longitudinal feeds0.052~1.392mm (0.002" ~0.0548" )
Cross feeds0.014~0.38mm (0.00055" ~0.015" )
Main lead screw Diameter lead screw φ 22mm(7/8" )
Pitch of lead screw  3mm or 8T. P. I
Saddle and carriageSaddle travel1000mm
Cross travel170mm
Compound travel74mm
TailstockBarrel travel95mm
Barrel diameterφ 32mm
Taper of centerM. T. 3
PowerMotor power1.5KW (2HP)
Motor for coolant system' s power0.04KW (0.055HP)
Shipment data Machine(L× W× H)1920× 760× 760 (mm)
Stand(left) (L× W× H)440× 410× 700 (mm)
Stand (right)(L× W× H)370× 410× 700 (mm)
Machine510/565 (kgs)
Stand70/75 (kgs)
Loading qauntity/20" container22 pcs
