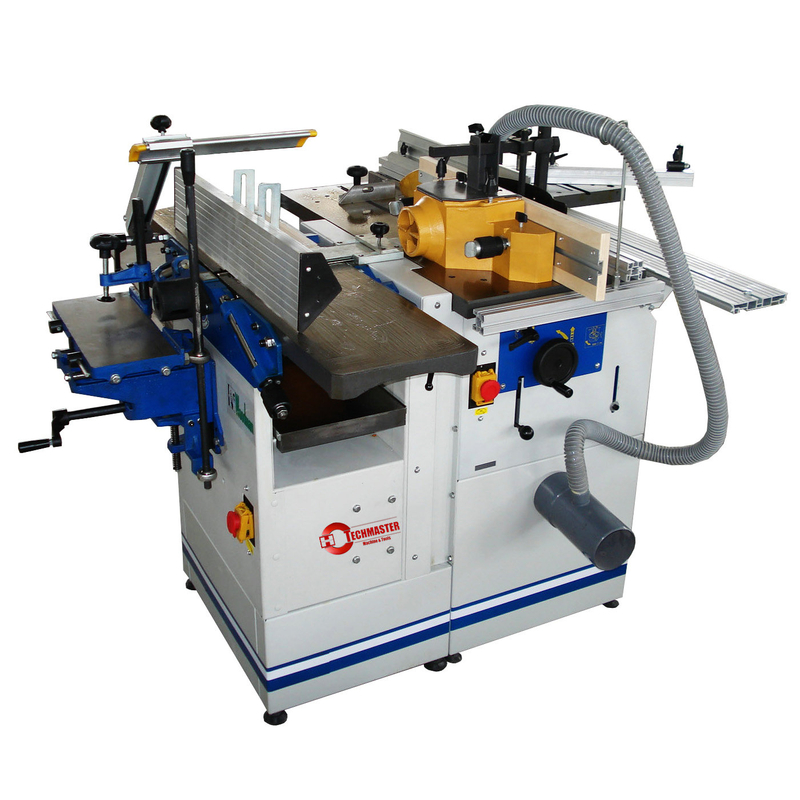

CM250 Combined Woodworking Machine

5 functions, three motors,blade for panel saw blade with tilting function

Planer & thicknessor:
Motor :1500w
Planing table size(mm):1085×253
Max planer width :250
Max planer cutting depth :5mm
Thicking table size :248x600mm
Max thicknesser width :250mm
Max thicknesser cut :2.5mm
Max thicknesser width:250mm
Max thicknesser height :195mm
Cutter block dia :Ф75mm
Cutter block speed :4000r/min
Cutting knife(pcs) :3
Fence tilt :0°～ 45°
feeding block dia :Ф32mm
Feed speed(m/min) :8m/min

Sawbench:
Motor:1100w
Blade size :Ф200x boreф30
Max Cutting height in 90 degree :60mm
Max Cutting height in 45 degree :38mm
Blade speed:4050r/min
Dust chute Dia :Ф100
Cast iron Sliding table size :400x250mm

Spindle moulder:
Motor :1500w
Spindle dia :Ф30mm
Spindle travel :80mm
Spindle speed :6500rpm
Max cutter dia :Ф140mm
Dust chute diameter :Ф100

Mortising
Bit housing :Ф16mm
Vertical stroke :65mm
Lateral stroke :85mm
Table size:320mmx160mm
Weight of mortising: 25/27kgs
Packing size of mortising:405x330x350mm

Complete machine

Dimensions(WXDXH):1350x1110x1150mm
Packing size:1200x1070x970mm
Gross weight :305/377kgs
20’container :18
