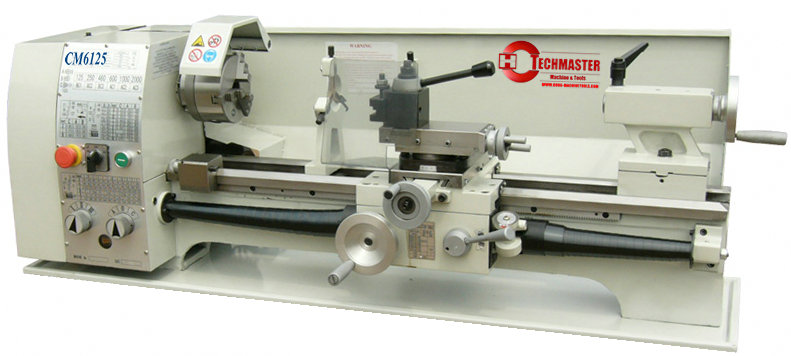

| MODEL | CM6125×550 | CQ6128M×660 | ||
| Max. Swing dia, over bed | 254mm | 10" | 280mm | 11" |
| Max. Swing dia, over cross slide | 156mm | 49/8" | 182mm | 57/8" |
| Max.length of workpieces | 550mm | 22" | 660mm | 26" |
| Taper of spindle bore | M.T.No.4 | M.T.No.4 | ||
| Hole through spindle | 26mm | 1" | 26mm | 1" |
| Range of spindle speeds | 125-2000rpm(50Hz) | 125-2000rpm(50Hz) | ||
| 125-2400rpm(60Hz) | 150-2400rpm(60Hz) | |||
| Longitudinal feed per revolution of spindle | 0.063-0.35mm/rev | 0.0025"- 0.013" /rev | 0.063-0.35mm /rev | 0.0025" - 0.013" /rev |
| Range of inch threads to be cut | 8-72T.P.I(32kinds) | 8-72T.P.I(32kinds) | ||
| Maximum tool size | 0.25-3.5mm(18kinds) | 0.25-3.5mm(18kinds) | ||
| Range of metric threads to be cut | 12×12mm | 0.5"×0.5" | 12×12mm | 0.5"×0.5" |
| Dia. Of tailstock sleeve | 32mm | 1.25" | 32mm | 1.25" |
| Taper of tailstock sleeve bore | M.T.No.2 | M.T.No.2 or No.3 | ||
| Max. travel of tailstock sleeve | 65mm | 2.5" | 65mm | 2.5" |
| Motor power | 0.75kw(1HP) | 0.75kw(1HP) | ||
| Motor frequency | 50Hz or 60Hz | 50Hz or 60Hz | ||
| Net weight | 150kgs | 180kgs | ||
| Packing size(L×W×H) | 140× 57 × 56.5cm | 55"×139 / 6"×22.25" | 140× 57 ×63cm | 55"×139 / 6"×24.75" |
| Gross weight | 200kgs | 230kgs | ||
