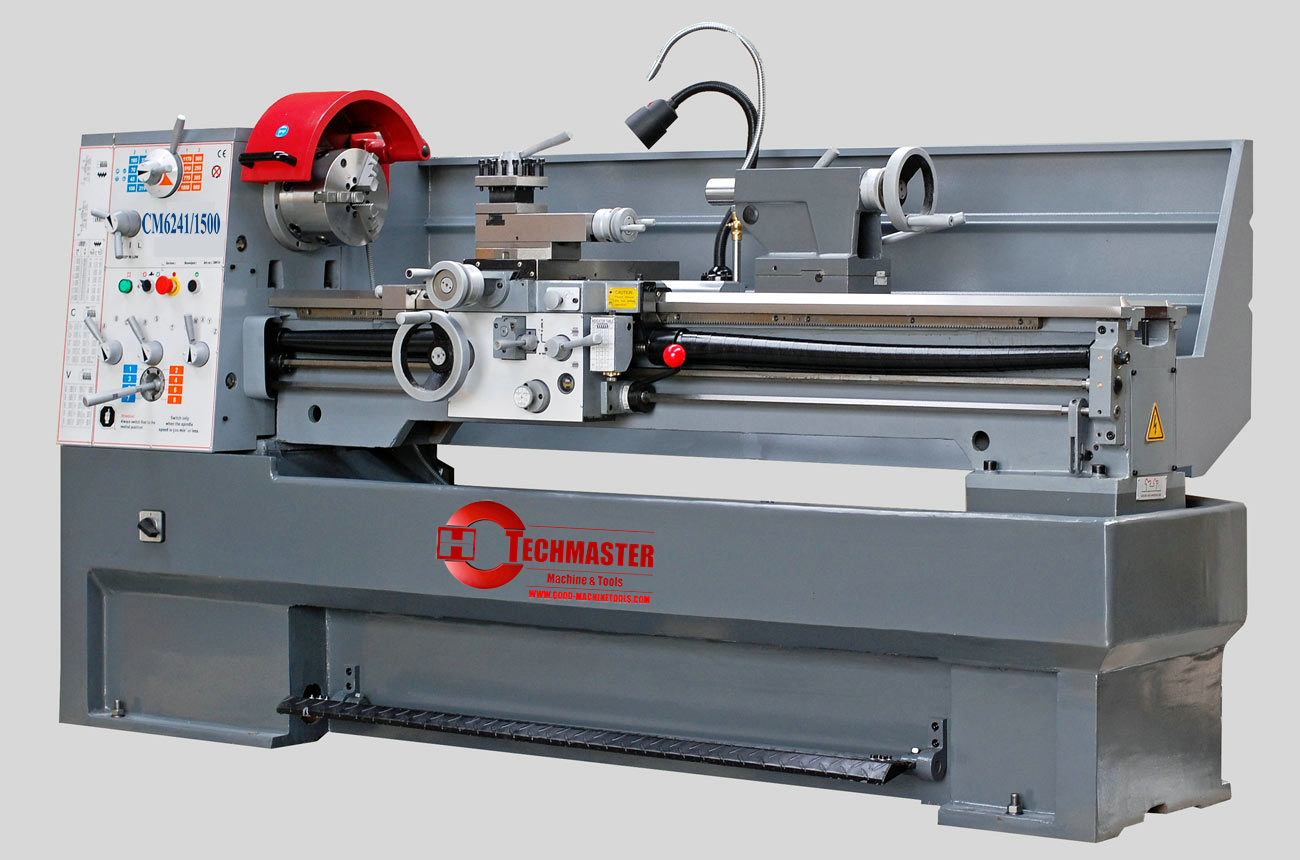

CM6241/1500
Quantity: TOP UNIVERSAL LATHE CM6241 SPECIFICATION Swing over bed 410mm Swing over cross slide 255mm Swing over bed in gap 580mm Center height 205mm Distance between centers: 1500mm Width of bed 250mm Spindle hole. 52mm Spindle nose fixture DIN 55029, D1 - 6 Taper of spindle MT6 Number of speeds 16kinds Speed range: 45 to 70 - 90 - 108 to 140 - 165 - 215-330 - 255-385 - 510-585 - 770-900 - 1170 - 1800. English threading 2 to 72 TPI. (45 kinds) Metric threading 0.2 to 14 mm. (39 kinds) Longitudinal inch feed : 0.002 "to 0.067" per revolution. (17kinds ) Long Metric feed 0.05 to 1.7 mm per revolution. (17 kinds ) Cross metric feed 0.025-0.85mm/rev(17 kinds) Modular range 0.3 to 3.5 MP. (18 kinds ) Diameter range: 8 to 44 DP. (21kinds ) Type tool post: 4 Way tool post.
Maximum tool diameter in the appropriate container: 20 x 20 mm. Maximum displacement of the support cone 140 mm. Maximum displacement of the lateral support 210 mm. Overhang of the quill 120mm. Diameter of quill 50 mm. Taper of tailstock sleeve MT4 Packing Dimensions: 205 x 95 x 160 cm. Motor 2.2KW / 3.3 KW. (2 speeds 400 volts.) Weight: Approx. 1350 KG
