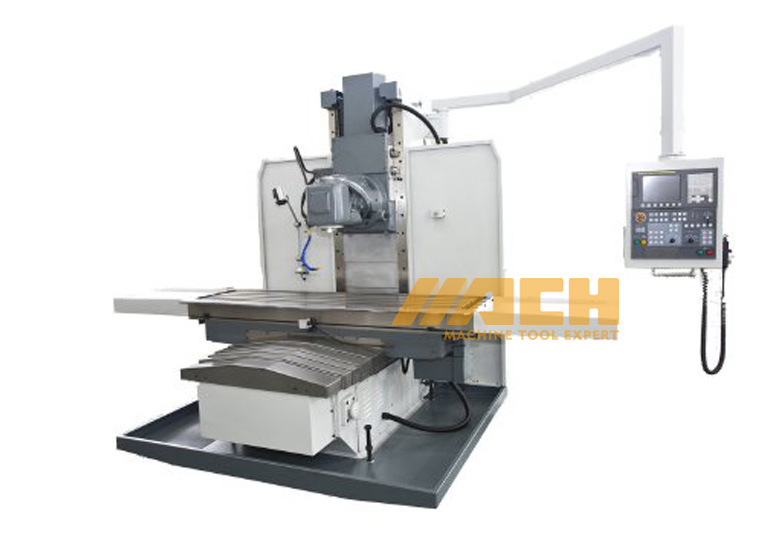

CNC Bed-type Universal Milling Machine Model:XKW715
Quantity: -
CNC Bed-type Universal Milling Machine Model:XKW715
MAIN FEATURES
1. Machine is produced by high quality cast iron, with high rigidity, aseismic capacity and precision retaining ability.
2. Big table load, wide machining range.
3. Vertical spindle and horizontal spindle can be changed easily.
4. Universal swivel head can be swiveled and adjusted by any degrees, a fixture processing can finish multi angle and multi dimensional machine parts.
5. Hardened and grounded guideway on X,Y,Z. Plastic processing on X,Y , it has the features of high strength, low friction.
6. Timing and quatify lubrication system.
7. Easy to operate, suitable for precision machining large and medium sized machine parts .
Specifications Units XKW715 table travel(X,Y) mm 1500X550 table size mm 2100X500 number/width/distance of T-slot mm 4-20-100 max.load of table kg 2000 distance from vertical spindle nose to table surface mm 0-650 distance from horizontal spindle nose to table surface mm ?8-660 distance from spindle axis to vertical guideway mm 610 distance from spindle axis to table surface m/min 8-660 X,Y feed speed mm/min 2.5-3000 X,Y rapid feed speed mm/min ?6000 Z feed speed mm/min 2.5-2500 Z rapid feed speed mm/min 3000 taper of spindle
ISO50(7:24) spindle speed range rpm 35-1345(12 steps) spindle motor power kw 7.5 feed motor power kw 1.4(X) 2.5(Y,Z) coolant motor power w 550 positioning accuracy mm ±0.04 repeat positioning accuracy mm 0.02 overall dimension mm 3650X2380X2750 machine net weight kg 7300
STANDARD ACCESSORIES
ISO50 Spindle
Three axis plastic coated surface hardened rail
Electric handwheel
Semi Protection
Coolant system,
Quazrt LightOPTIONAL ACCESSORIES
4th axis of CNC control system ( Universal Dividing head or Rotary working table )MAIN FEATURES
1. Machine is produced by high quality cast iron, with high rigidity, aseismic capacity and precision retaining ability.
2. Big table load, wide machining range.
3. Vertical spindle and horizontal spindle can be changed easily.
4. Universal swivel head can be swiveled and adjusted by any degrees, a fixture processing can finish multi angle and multi dimensional machine parts.
5. Hardened and grounded guideway on X,Y,Z. Plastic processing on X,Y , it has the features of high strength, low friction.
6. Timing and quatify lubrication system.
7. Easy to operate, suitable for precision machining large and medium sized machine parts .
Specifications Units XKW715 table travel(X,Y) mm 1500X550 table size mm 2100X500 number/width/distance of T-slot mm 4-20-100 max.load of table kg 2000 distance from vertical spindle nose to table surface mm 0-650 distance from horizontal spindle nose to table surface mm ?8-660 distance from spindle axis to vertical guideway mm 610 distance from spindle axis to table surface m/min 8-660 X,Y feed speed mm/min 2.5-3000 X,Y rapid feed speed mm/min ?6000 Z feed speed mm/min 2.5-2500 Z rapid feed speed mm/min 3000 taper of spindle
ISO50(7:24) spindle speed range rpm 35-1345(12 steps) spindle motor power kw 7.5 feed motor power kw 1.4(X) 2.5(Y,Z) coolant motor power w 550 positioning accuracy mm ±0.04 repeat positioning accuracy mm 0.02 overall dimension mm 3650X2380X2750 machine net weight kg 7300
STANDARD ACCESSORIES
ISO50 Spindle
Three axis plastic coated surface hardened rail
Electric handwheel
Semi Protection
Coolant system,
Quazrt LightOPTIONAL ACCESSORIES
4th axis of CNC control system ( Universal Dividing head or Rotary working table )
