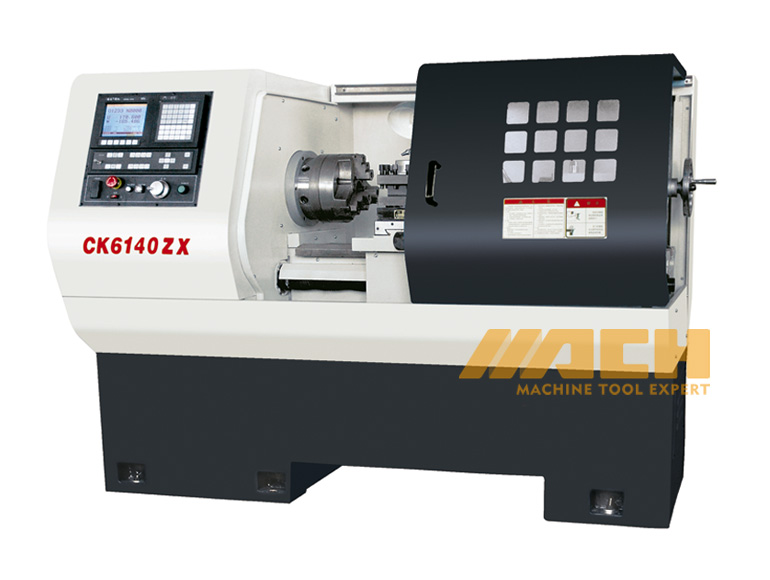

CNC Lathe Machine Model:CK6140ZX – CK6150ZX
Quantity: -
CNC Lathe Machine Model:CK6140ZX – CK6150ZX
MAIN FEATURES
1.Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
2.Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected.
3 The post is located on precision contrite gears with a high repeated positioning accuracy.
4.Both chuck and tailstock are supplied with hydraulic or manual type.
5.The surface of the bedways is supersonic frequency hardened and precision ground with a long service life.
6.The spindle bore size is Ø 80mm. The spindle system is high in the rigidity and accuracy.
ITEMS
CK6140ZX
CK6146ZX
CK6150ZX
Over bed 400mm
460mm
500mm
Over carriage 210/165mm
(Gang tools)240/205mm
(Gang tools)280/245mm
(Gang tools)Maximum turned length 750/1000/1500mm
Max. turning length 600/850/1350 mm
Spindle nose D8
Spindle bore 80mm
Cone hole diameter and taper of spindle hole MT.No7
Steps of spindle speed (Manual)
Variable
Range of spindle speed 100~2000r/min
Rapid feed for Axis Z 10m/min
Rapid feed for Axis X 8 m/min
Max. travel of Axis Z 710/960/1460 mm
Max. travel of Axis X 250/330mm(Gang tools)
Min. input 0.001mm
Tool post stations 4-ways or 6-ways or gang tools
Tool cross section 25×25 mm
External diameter 75mm
Taper of bore MT.No.4
MT.No.5
Max. Traverse 130mm
Power of main motor 5.5KW(Extra 7.5KW)
Power of cooling pump 75W
Overall dimensions(L×W×H) 2060/2310/2790×1180×1500mm
Net weight 2100,2250,2800Kg
2200,2350,2900kg
STANDARD ACCESSORIES
3 JAW CHUCK(MOUNTED ON THE LATHE)Φ250mm
TOOL BOX INCLUDEOPTIONAL ACCESSORIES
