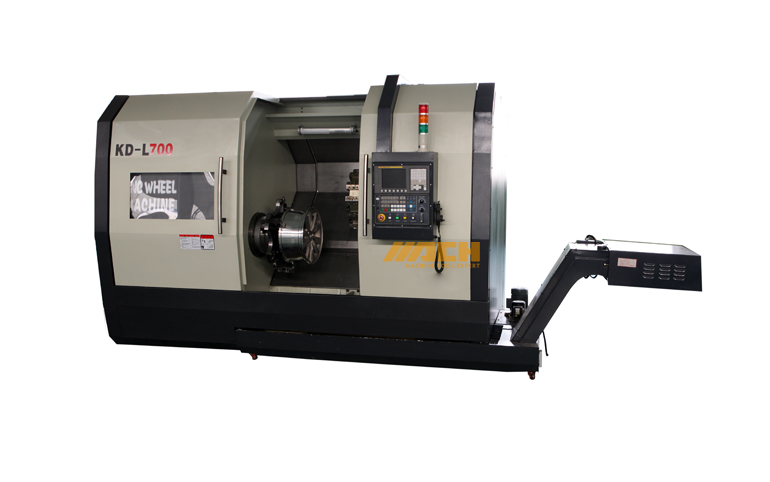

CNC Lathe Machine Model:KD-L700
2.The spindle is designed by bub for improving fthe machine stability.
3.It has a stainless inner protection and totally scaled outside protection.
| ITEMS | KD-L700 |
| Max. swing over bed | Φ900mm |
| Max. swing over carriage | Φ600mm |
| Max swing hub | 22” |
| Spindle | |
| Sjpindle nose | A2-8 |
| Spindle bore | Φ105mm |
| Steps of spindle speeds | Variable |
| Spindle speed | 2000r/min |
| Front spindle bearing ID | Φ160mm |
| Back spindle bearing ID | Φ150mm |
| Feed | |
| Max. travel of Axis Z | 750mm |
| Max. travel of Axis X | 400mm |
| Rapid feed for Axis Z | 24m/min |
| Rapid feed for Axis X | 20m/min |
| Accuracy | |
| Accuracy of machining | IT6-IT7 |
| Positioning? accuracy(X/Z) | 0.012/0.016mm |
| Repeatability(X/Z) | 0.006/0.008mm |
| Tool post | |
| Out dia. Of cutting toolshank | 32x32mm |
| Inner dia. Of cutting tool shank | Φ50mm |
| Motor | |
| Power of main motor | 30/37Kw |
| X/Z motor torque | 32Nm/38Nm |
| Power of cooling pump | 370Wx2 |
| Other | |
| Overall dimensions(LxWxH) | 4500x2100x2200mm |
| Net weight（Kg） | 7000 |
