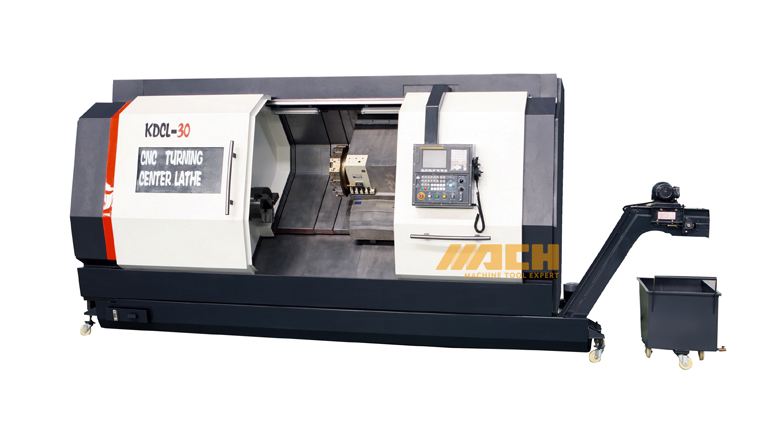

CNC Lathe Machine Model:KDCL-30
2.The main drive is equipped with ZF transmission to increase spindle speed range so that the machine can perform low and hige torque heavy load cutting as well as high speed precision cutting.
3.It is equipped with stainless steel inner protection guard and totally sealed outer protection guard.
ITEMS | KDCL-15B |
Max. swing over bed | 650 mm |
Max. cutting dia. For disc parts | 500 mm |
Max. cutting dia. For axle parts | 320 mm |
Maximum turned length for axle parts | 1000 mm |
Max. cross travel (X) | 270 mm |
Max. longitudinal travel (Z) | 1000 mm |
Spindle bore | 90 mm |
Spindle nose | A2-8 |
Spindle speed | 2500r/min |
Chuck dia. | 12″ |
Rapid feed for axis X | 16m/min |
Rapid feed for axisZ | 20m/min |
Number of tool post | 12 |
Outside dia. Cutting tool shank | 25×25mm |
Max. inner dia. Cutting tool shank | 40 mm |
Guiide ways X&Z | Precision linear ball rail |
Tailstock sleeve dia. | 100 mm |
Tailstock sleeve travel | 200 mm |
Tailstock center type | M.T.No.6 |
Type of spindle motor | Servo |
Spindle motor power | 18.5/22KW |
Bed structure | 45° slant bed |
Min. Input | 0.001 mm |
Repeatability | 0.005/ 0.006 mm |
Capacity for coolant | 250 L |
Surface roughness | ≤Ra0.8μm(Nonferrous) ≤Ra1.6μm(Steel part) |
Overall dimensions(L×W×H) | 4250×1980×2280 mm(exclude automatic conveying) |
Net weight | 7000 Kg |
