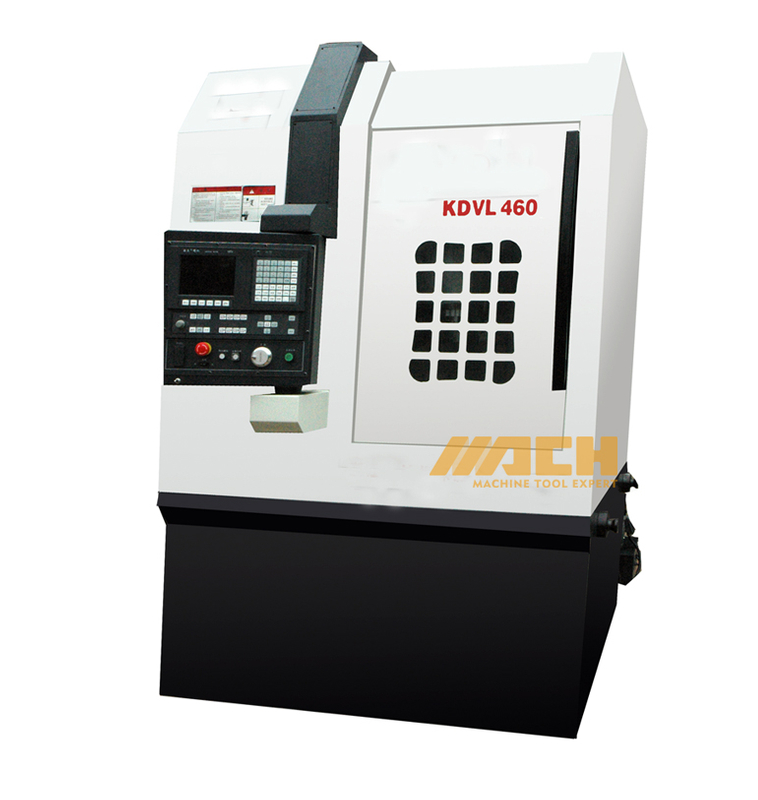

CNC Lathe Machine Model:KDVL460/ KDVL460L/ KDVL600
2 Easy to chuck and remove, Workpiece roundness and other precision are ensured.
3 The turret on the slide moves along longitudinal or cross rails.There are three cross rails to support the slide.
4 Ball screws and linear rails are used to ensure smooth feed and ghgn precision.
5 Machine totally sealed guard structure. Back side chip removal conveyor.
ITEMS | KDVL460 KDVL460L | KDVL600 | |
Capacity | Max.swing | Φ530 mm | Φ650mm |
Max.cutting diameter | Φ500mm | Φ600mm | |
Max.height or turning | 430mm | 600mm | |
Spindle | Spindle nose | A2-8 | A2-8 |
Front spindle bearing ID | Φ120mm | Φ140mm | |
Spindle speed range | 100-2000r/min | 100-2000r/min | |
Steps of spindle speed | Varlable | Varlable | |
Chuck dia. | 12” | 18” | |
Travel | Travel of X axis | -50;+250mm | -30;+300mm |
Travel of Z axis | 450mm | 600mm | |
Feel | Rapid feed of X axis | 8m/min | 10m/min |
Rapid feed of Z axis | 10m/min | 12m/min | |
Tool Post | Type of tool stations | Hydraulic | Hydraulic |
Number of tool statins | 8 | 8 | |
Tool shank size(square) | 25X25mm | 25X25mm | |
Tool shank size(round) | Φ40mm | Φ40mm | |
Motor | Main motor | 15 18/5KW | 18.5/22KW 11KW |
Hydraulic pump motor | 1.5KW | 1.5KW | |
Coolant pump motor | 200W | 370W | |
Other | Overall dimensiln(LxWxG) | 1590X2670X2545mm | 23650X2700X3200mm |
Net weight | 4500Kg | 8000Kg |
1. 3-JAW CHUCK (mounted on lathe)
2. CIRCLE TOOLPOST BASE (mounted on lathe)
3. TOOL POST CLAMP GIB (mounted on lathe)
4. SQUARE TOOL POST BASE (mounted on lathe)
5. TOOL BOX
2 Easy to chuck and remove, Workpiece roundness and other precision are ensured.
3 The turret on the slide moves along longitudinal or cross rails.There are three cross rails to support the slide.
4 Ball screws and linear rails are used to ensure smooth feed and ghgn precision.
5 Machine totally sealed guard structure. Back side chip removal conveyor.
ITEMS | KDVL460 KDVL460L | KDVL600 | |
Capacity | Max.swing | Φ530 mm | Φ650mm |
Max.cutting diameter | Φ500mm | Φ600mm | |
Max.height or turning | 430mm | 600mm | |
Spindle | Spindle nose | A2-8 | A2-8 |
Front spindle bearing ID | Φ120mm | Φ140mm | |
Spindle speed range | 100-2000r/min | 100-2000r/min | |
Steps of spindle speed | Varlable | Varlable | |
Chuck dia. | 12” | 18” | |
Travel | Travel of X axis | -50;+250mm | -30;+300mm |
Travel of Z axis | 450mm | 600mm | |
Feel | Rapid feed of X axis | 8m/min | 10m/min |
Rapid feed of Z axis | 10m/min | 12m/min | |
Tool Post | Type of tool stations | Hydraulic | Hydraulic |
Number of tool statins | 8 | 8 | |
Tool shank size(square) | 25X25mm | 25X25mm | |
Tool shank size(round) | Φ40mm | Φ40mm | |
Motor | Main motor | 15 18/5KW | 18.5/22KW 11KW |
Hydraulic pump motor | 1.5KW | 1.5KW | |
Coolant pump motor | 200W | 370W | |
Other | Overall dimensiln(LxWxG) | 1590X2670X2545mm | 23650X2700X3200mm |
Net weight | 4500Kg | 8000Kg |
1. 3-JAW CHUCK (mounted on lathe)
2. CIRCLE TOOLPOST BASE (mounted on lathe)
3. TOOL POST CLAMP GIB (mounted on lathe)
4. SQUARE TOOL POST BASE (mounted on lathe)
5. TOOL BOX
