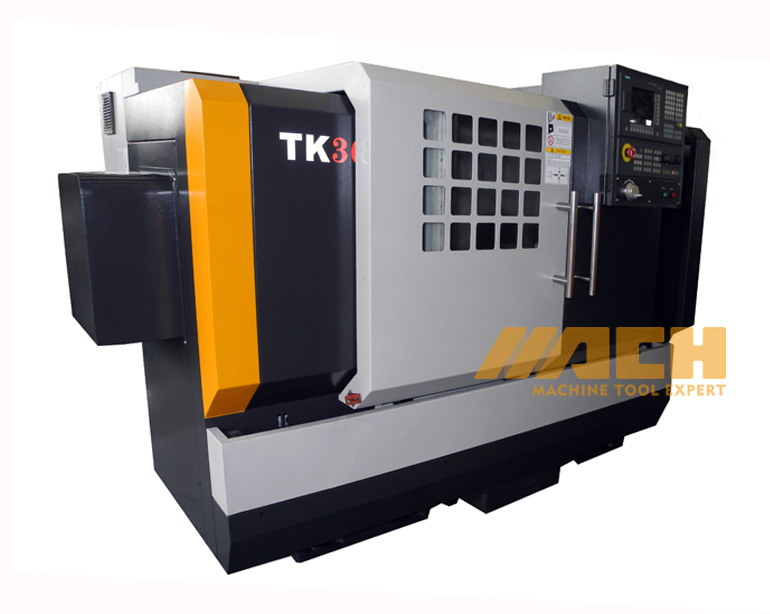

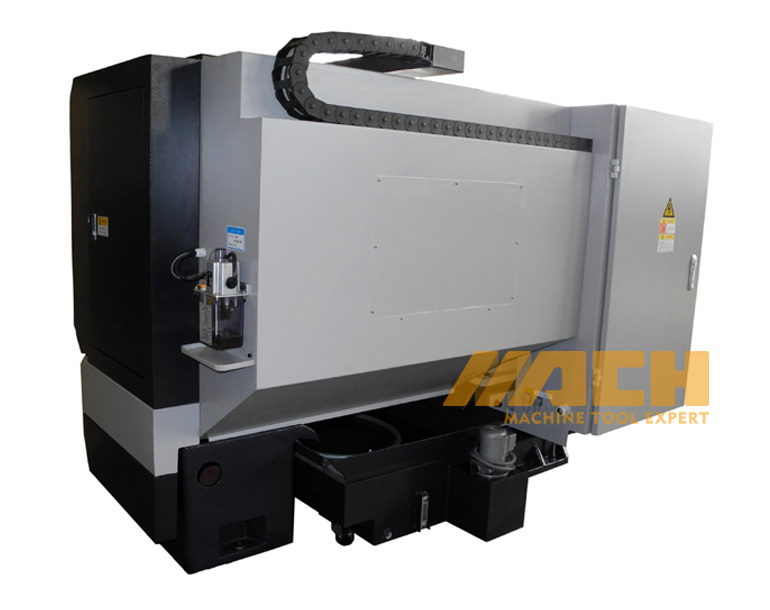

CNC Lathe Machine Model:TK36
2. It is equipped with a 4-station turret that meets different cutting requirement, a sliding door and a variety of caution plates that guarantee operaror’s safety.
3. The control console can be mounted at left end or right end according to users operating habits.
4. The machine is applicable to batch production of multi-specification work, especially precision work in complex contours.
Item | UNIT | TK36 | |
Capacity | Max.swing over bed | mm | Φ360 |
Max.swing over slide | mm | Φ180 | |
Max.turning dia.over bed | mm | Φ320 | |
Distance between centers | mm | 750 | |
Max.turning length | mm | 650 | |
Spindle | Spindle thru hole | mm | Φ57 |
Spindle nose | / | D type No.6 | |
Spindle speed | r/min | 140-3000(stepless) | |
Chuck dia. | mm | Φ200 | |
Main motor power | kw | 5.5(freq.inverting) | |
Tailstock | Quill dia./movement | mm | Φ55/120 |
Taper of center | / | MT No.4 | |
Carriage | X/Z-axis travel | mm | 200/660 |
Rapid traverse rate | m/min | 41194 | |
Turret | Number of stations/type | / | 4/vertical |
Tool size | mm | 20X20 | |
Power source | kVA | 12 | |
Dimension(LXWXH) | mm | 2305X1258X1655 | |
Gross weight | kg | 1700 |
