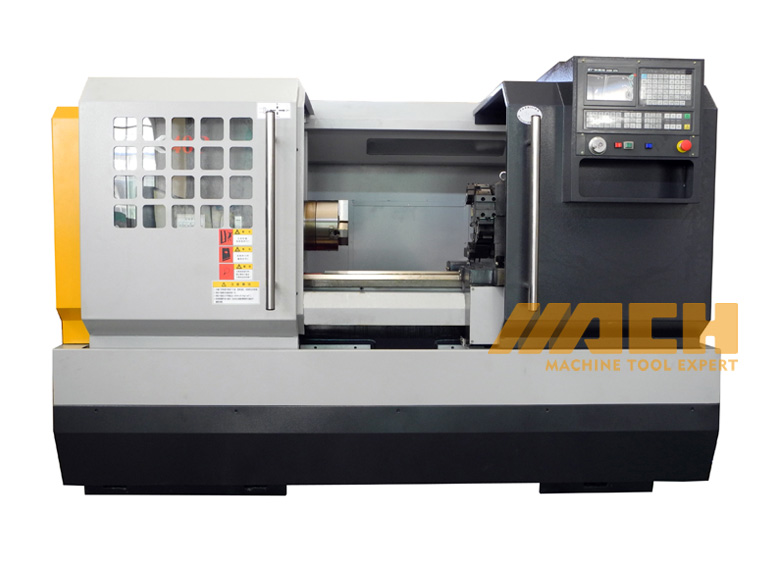

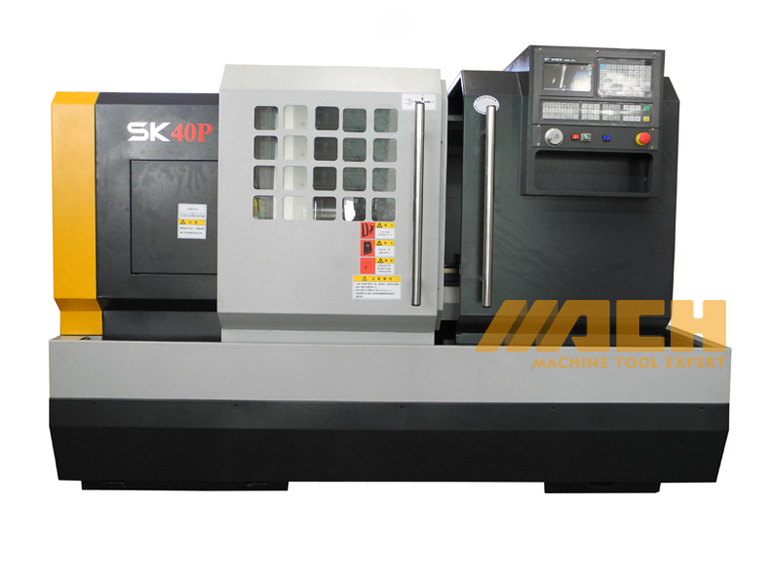

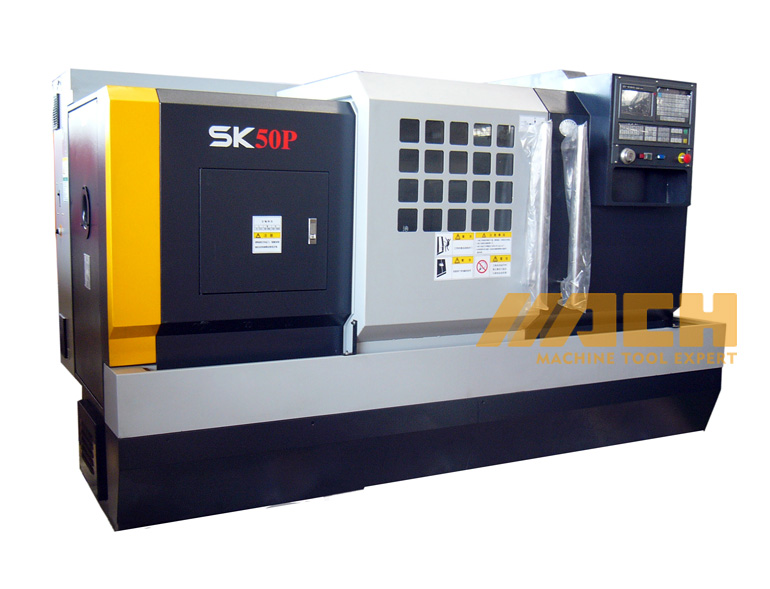

CNC Lathe Model:SK40P/SK50P
Quantity: -
CNC Lathe Model:SK40P/SK50P
MAIN FEATURES
1. SK50P horizontal CNC lathes that spindle speed are changed mechanically in three gears together with control of a frequency changer.2. The lathe has 4 types (750, 1000, 1500, 2000). Equipped with 4-station (standard)/ 6-station turret (optional), the lathes are available for different cuttings. The sliding door ensures the operator’s safety.
3. CNC systems such as Guangzhou 980T,FANUC 0i Mate-TD, Huazhong 21T, Sinumerik 802C basline/802DSL, Dasen 3i, KND1000T,etc. is provided on request.
4. The lathes can perform internal and external cylindrical turning, arbitrary taper turning, arc turning, facing and threading. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
ITEMS UNIT SK40P SK50P Capacity Max. swing dia. over bed mm Φ400 Φ500 Max. swing dia. over carriage mm Φ200 Φ280 Max. turning diameter mm Φ400/Φ350* Φ500/Φ350* Distance between centers mm 710/960/1460/1960
(620/870/1370/1870)*Max. turning length mm 570/820/1320/1820
(500/750/1250/1750)*Spindle Type of spindle nose
ISO 702/Ⅱ D8 Short-taper cam-locking type Spindle bore diameter mm Φ77 Spindle speed rpm 3-step 21-1620 H:162-162
M: 66-660 L: 21-210Max. torque of spindle N.m 800 Spindle drive motor power(continuous or 30minutes) kW 7.5 Tailstock Quill diameter mm Φ75 Quill travel mm 150 Tailstock quill taper . Morse No.5 Turret X/Z rapid traverse rate m/min 6/12 Number of tool stations
4(6 Option) Tool section mm 25×25 X travel mm 300 Z travel mm 650/900/1400/1900 Others Dimensions（L） mm 2250/2500/3000/3500 （W） mm 1370 （H） mm 1690 Package dimensions (L×W×H) mm 2550/2800/3300/3800×1920×2200 Net weight kg 2050/2100/
2150/22002100/2150/
2200/2260STANDARD ACCESSORIES
Equipment with Fanuc Oi mate control system(x. z servo motor),The main spindle is driven by inverter motor,Spindle speed change by hand lever (on the head stock) and inverter,4-station electric tool post,Manual 3-jaw chuck,Lubrication unit,Coolant supply system,All standard accessories.OPTIONAL ACCESSORIES
1).Hydraulic 3-jaw chuck<250mm-Without through hole> and hydraulic power unit:or Hydraulic 3-jaw chuck<250mm-With through hole> and hydraulic power unit:2).Hydraulic tail stock:3).6-station electric tool post:MAIN FEATURES
