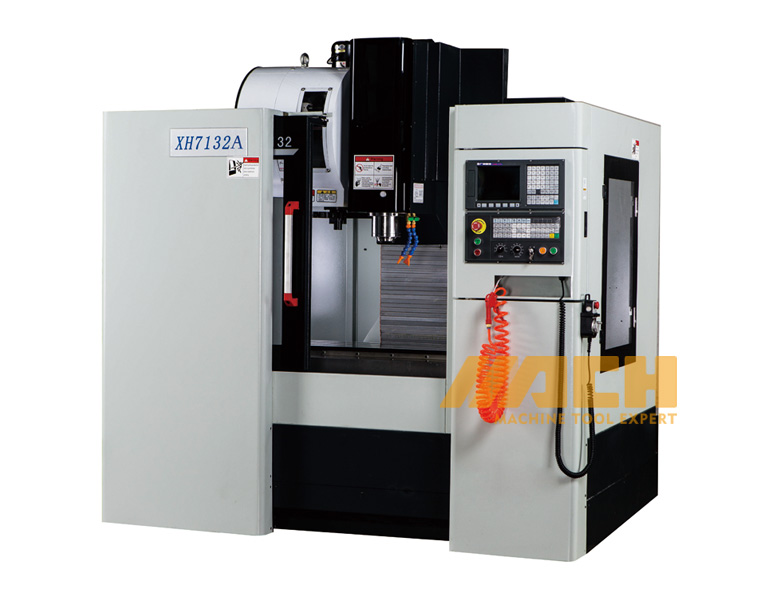

CNC Milling Machine Model:XH7132
Quantity: -
CNC Milling Machine Model:XH7132
MAIN FEATURES
1. Table Size:920x320mm
2. Table Travel(X,Y,Z):620x350x500mm
3. Max. Load of Table:300kgs
specification unitXH7132 Tablesize mm 920×320 Tslot no 3 Centredistance mm 85 T-Width mm 14 Max.loadofworktable kg 300 Longitudinaltravel mm 620 Crosstravel mm 350 Verticaltravel mm 500 spindlenosetotablesurface mm 100-600 spidleaxistocolumnsurface mm 395 Spindletaper
BT40 SpeedRange rpm 60-6000 spindlemotorpower kw 5.5(servo) cuttiingfeedX/Y/Z mm/min 2.5-3000 rapidfeedX/Y/Z m/min 18 toolmagazinecapacity piece 16 toolmagazinetype
drum-type Max.tooldiameter mm Φ120×200 Max.toollength mm 250 Max.toolweight kg 8 Toolchangingtime s 7 positioningaccuracy mm ±0.015 positioningaccuracy mm 0.0075 airpressure Mpa 0.5 overalldimensions(LxWxH) mm 2100x1970x2170 N/W KG 2750
STANDARD ACCESSORIES
Spindle taper: BT40
Spindle unit: BT40 8000rpm (factory set up for 6000rpm)
3 axis plastic coated surface hardened rail
Main protection
Quartz Lamp
Cooling system
Automatic Lubrication unit
Electronic hand wheelOPTIONAL ACCESSORIES
Electromagnetic Doorlock
Automatic spiral chip removal system
Automatic chain type chip removal system
Drum-type tool magazine capability 16 tools
4th axis of CNC control system ( Dividing head or Rotary work
