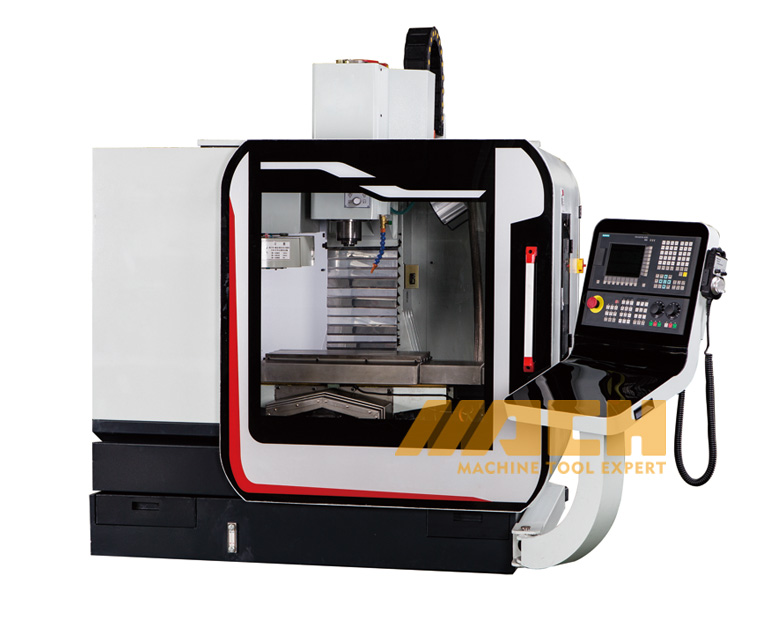

CNC Milling Machine Model:XK7125
Quantity: -
CNC Milling Machine Model:XK7125
MAIN FEATURES
1. Table Size:600x250mm
2. Table Travel(X,Y,Z):400x240x400mm
3. Max. Load of Table:150kgs
Specification unit XK7125Worktable : Table size mm 600X250T slot no 3Centre distance mm 75T-Width mm 14Max. load of worktable kg 150Machining range : Longitudinal travel mm 400Cross travel mm 240Vertical travel mm 400Spindle nose to table surface mm 60-460Spidle axis to column surface mm 325Spindle : Spindle taper BT30Cuttiing feed X/Y/Z mm / min 2.5-3000Spindle Speed r.p.m. 60-6000Motor Spindle motor power kw 3.7Feed motor torque(X/Y/Z) KW 7-7-7Feed : Rapid feed X/Y mm/min 6000Rapid feed Z mm/min 6000Accuracy X/Y/Z Positioning accuracy mm ±0.02X/Y/Z Repeat positioning accuracy mm ±0.01Others Overall dimensions(LxWxH) mm 1650x1600x2000N/W KG 1500/1650
STANDARD ACCESSORIES
Spindle unit: BT30 6000rpm
3 axis plastic coated surface hardened rail
Main protection
Quartz Lamp
Cooling system
Electronic hand wheelOPTIONAL ACCESSORIES
Electromagnetic Do
