CNC Technology KC6S Lathe

Quantity:
  • CNC Technology KC6S Lathe

  • Precision CNC Lathe for education sector and advanced model engineering
  • Ball screws driven by hybrid stepper motors on both axis
  • 1,000W brushless DC motor with belt drive to the spindle
  • Full sheet steel floor stand with interlocked doors and electronics enclosure
  • Options available including hand control unit and coolant system
  • Windows based operating software and connection cable included

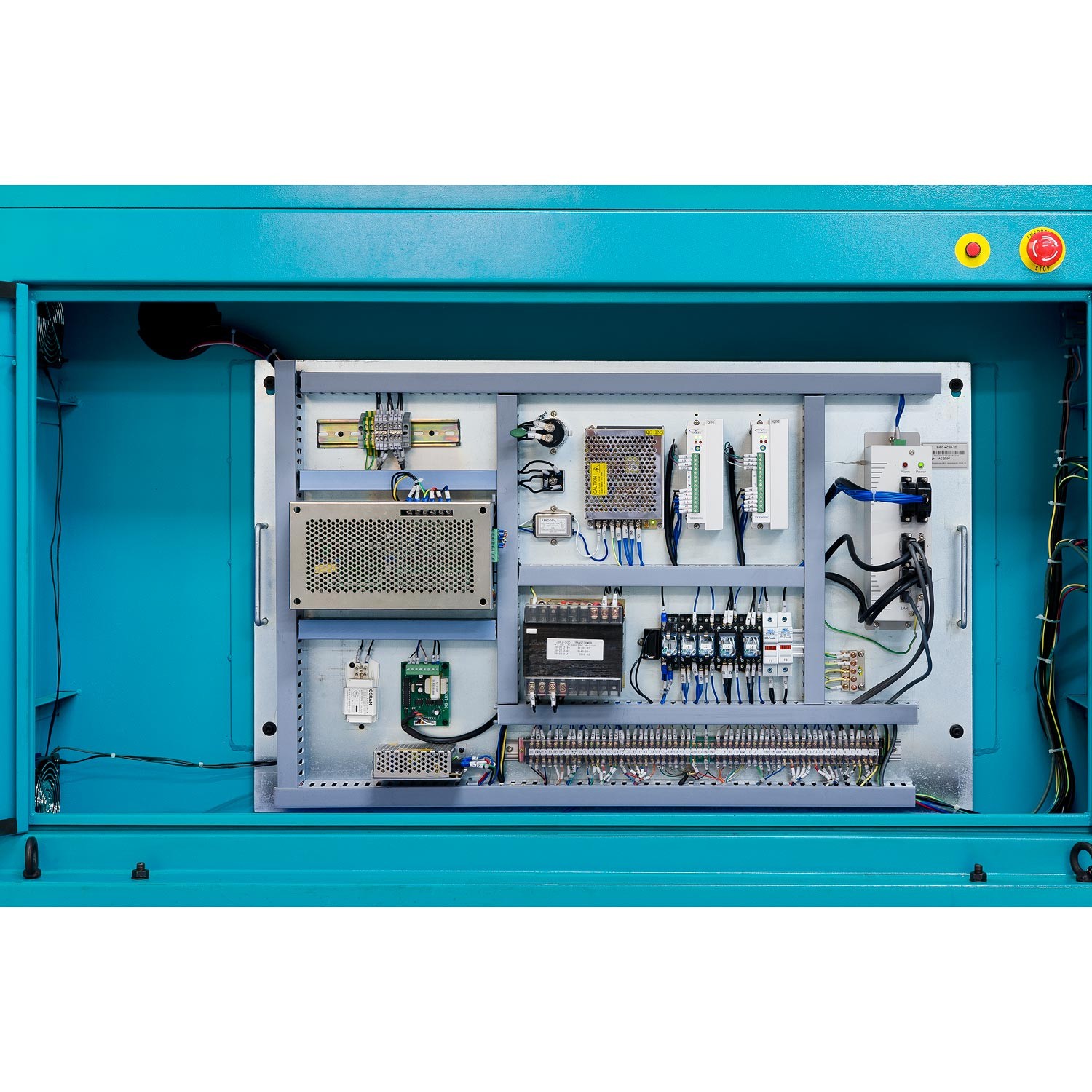

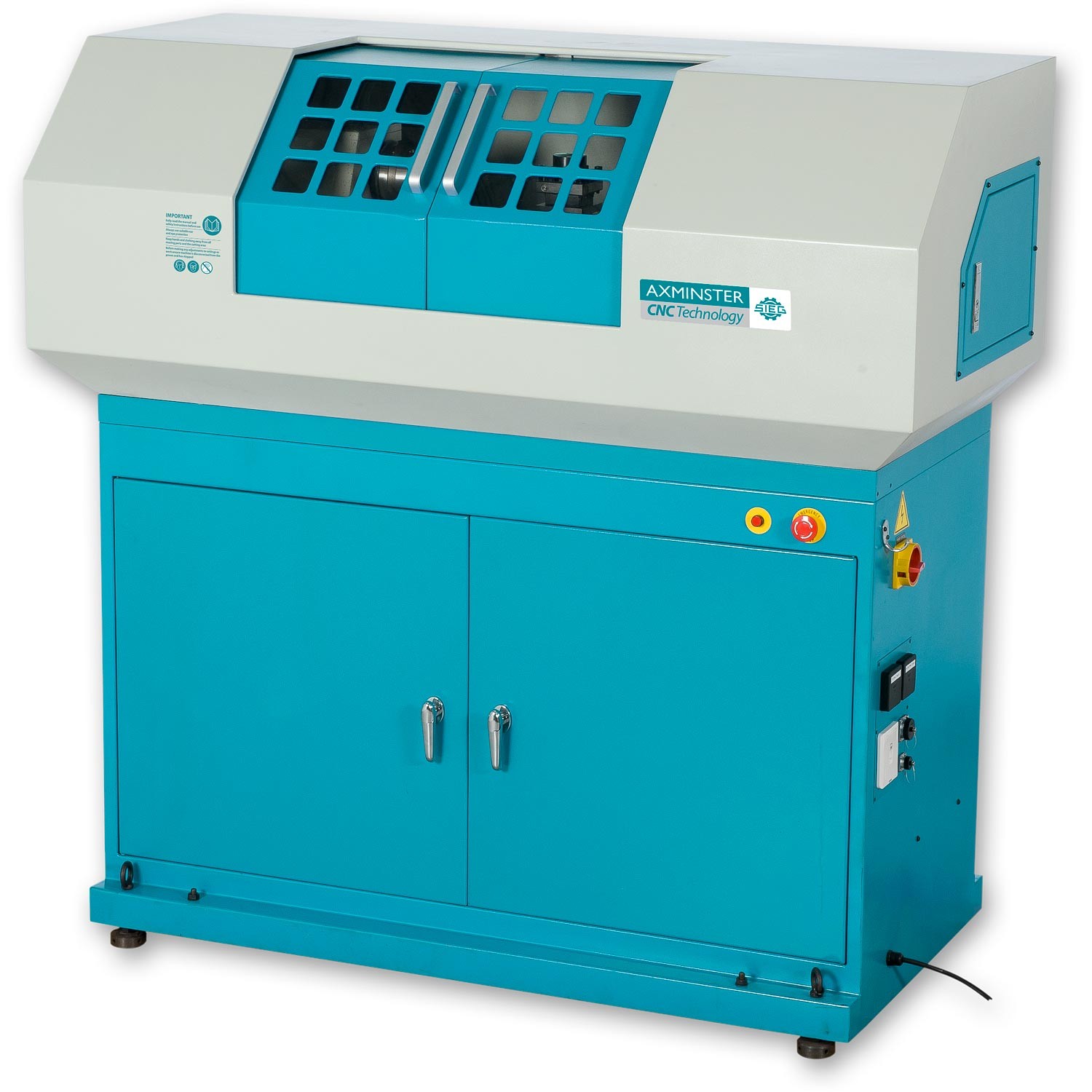

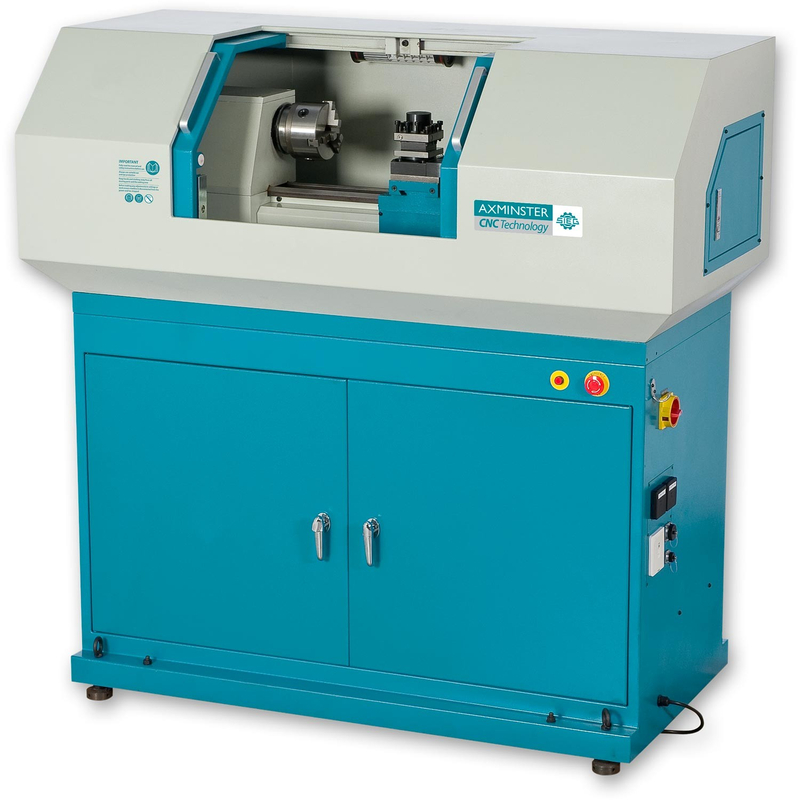

  • The KC6S CNC Lathe is a fully functional, CNC machine, completely integrated in its own cabinet/floor stand. Ideally suited for education and training, precision machining or small component production. With its bed, apron and tailstock manufactured in high grade cast iron it is highly stable and vibration-free. The spindle is driven by a high torque 1,000W brushless DC motor via a toothed belt under full CNC speed control. Direct drive NEMA 23 Hybrid Stepper motors power the Z and X axis via precision ball screws giving a positional accuracy of 0.015mm. The maximum axis speed is 2m/min and the max feed speed is 500mm/min. A central slideway lubrication system is fitted, as are limit switches to both axis. A four position auto control tool post is fitted, allowing a selection of cutting tools to be fitted. The machine and its electronic control system are fully enclosed in a steel cabinet, with an external E-Stop switch, the access doors being held closed with powered magnets. A sliding swarf drawer is included. The cabinet also has an external 13A power socket for the operating computer, plus extra power points for optional extras.

    The lathe is supplied with operating system software and can be connected by an ethernet (LAN) cable to any Windows based computer. The software has an in-built help and tuition programme and will accept G-Code inputs.

    The options for this machine include a hand wheel controller and coolant system.

    Axminster CNC Technology KC6S Lathe

    Code: 501010

    • Precision CNC Lathe for education sector and advanced model engineering
    • Ball screws driven by hybrid stepper motors on both axis
    • 1,000W brushless DC motor with belt drive to the spindle
    • Full sheet steel floor stand with interlocked doors and electronics enclosure
    • Options available including hand control unit and coolant system
    • Windows based operating software and connection cable included

    £9,263.46 (£7,719.55 Ex. VAT)



    Low stock - get it tomorrow, Saturday 11th Mar, order within 11 hours and choose Premium delivery

    Collect in store, we'll confirm your reservation within 1 hour.

    Check stock at your local store
    Learn how it works

    In Detail

    CNC Classification & 3 Year Guarantee

    The KC6S CNC Lathe is a fully functional, CNC machine, completely integrated in its own cabinet/floor stand. Ideally suited for education and training, precision machining or small component production. With its bed, apron and tailstock manufactured in high grade cast iron it is highly stable and vibration-free. The spindle is driven by a high torque 1,000W brushless DC motor via a toothed belt under full CNC speed control. Direct drive NEMA 23 Hybrid Stepper motors power the Z and X axis via precision ball screws giving a positional accuracy of 0.015mm. The maximum axis speed is 2m/min and the max feed speed is 500mm/min. A central slideway lubrication system is fitted, as are limit switches to both axis. A four position auto control tool post is fitted, allowing a selection of cutting tools to be fitted. The machine and its electronic control system are fully enclosed in a steel cabinet, with an external E-Stop switch, the access doors being held closed with powered magnets. A sliding swarf drawer is included. The cabinet also has an external 13A power socket for the operating computer, plus extra power points for optional extras.

    The lathe is supplied with operating system software and can be connected by an ethernet (LAN) cable to any Windows based computer. The software has an in-built help and tuition programme and will accept G-Code inputs.

    The options for this machine include a hand wheel controller and coolant system.

    If you are thinking of buying a CNC machine or would like a demonstration, please contact our Business Team on 0800 371822

    Please note due to the complex nature and set up requirements of these machines, they must be installed by AT & M engineers, please contact the Axminster Business Services Team, 0800 371822 or abst@axminster.co.uk for quotations on supply, delivery and installation.

    Information Downloads

    Specification

    Centre Height 110mm
    Distance Between Centres 450mm
    Feed Speed 500mm/min
    Model KC6S
    Overall L x W x H 1,460 x 760 x 1,450mm
    Power 1,000W DC Brushless
    Rating Trade
    Spindle Speed 100-3,000rpm
    Spindle Taper 3MT
    Swing 250mm over bed, 110mm over apron
    Travel X Axis 180mm
    Travel Z Axis 320mm
    Tailstock Taper 2MT
