CNC Technology KX1S Mill

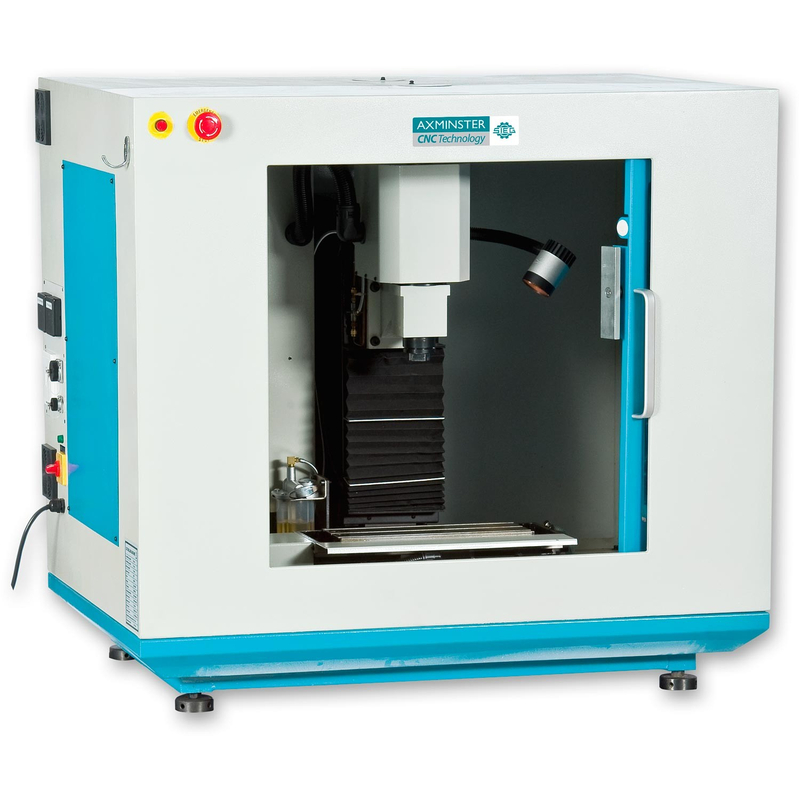

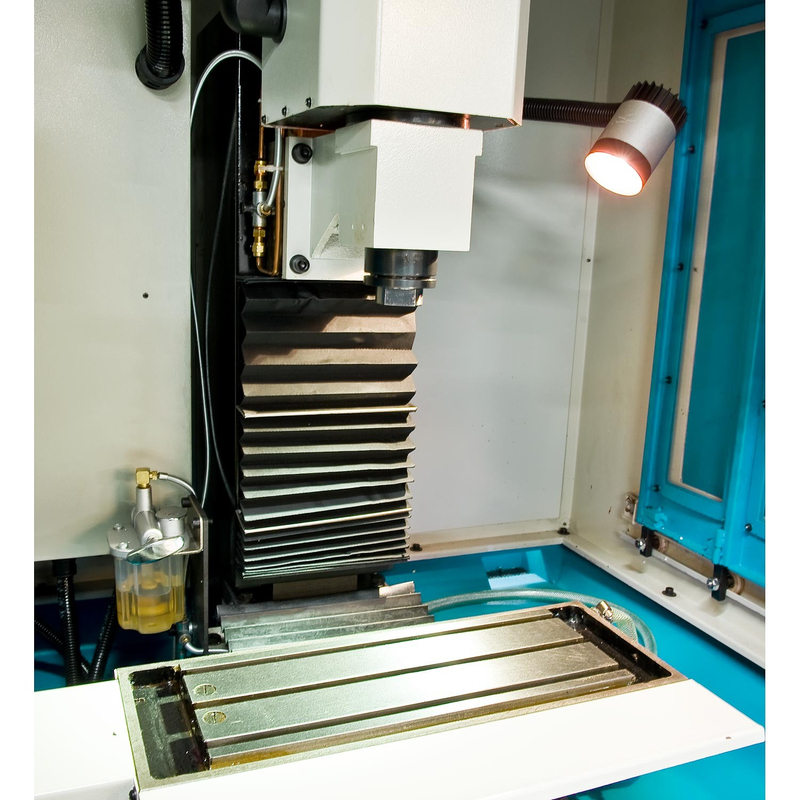

The KX1S is a high precision CNC milling machine, ideal for the education sector, advanced model engineering or small component production. Predominately manufactured in high grade cast iron, resulting in a stable and vibration absorbing platform. Fitted with precision ball screws and direct drive NEMA 23 Hybrid Stepper motors on all axis, giving a repeatable positional accuracy of 0.015mm. The maximum axis speed is 2m/min and the maximum feed speed is 500mm/min. The spindle motor is a high torque 500W brushless DC unit, with full CNC spindle speed control. A central slideway lubrication system is fitted, as are limit switches to all axis. The machine is fully enclosed in a steel cabinet, with an external E-Stop switch, the access doors being held closed with powered magnets. The cabinet also has additional power sockets for the operating computer, plus extra power points for optional extras.
The machine is supplied with straightforward operating software, connection is by an ethernet (LAN) cable to any Windows based computer. The software has an in-built help and tuition programme and will accept G-Code inputs.

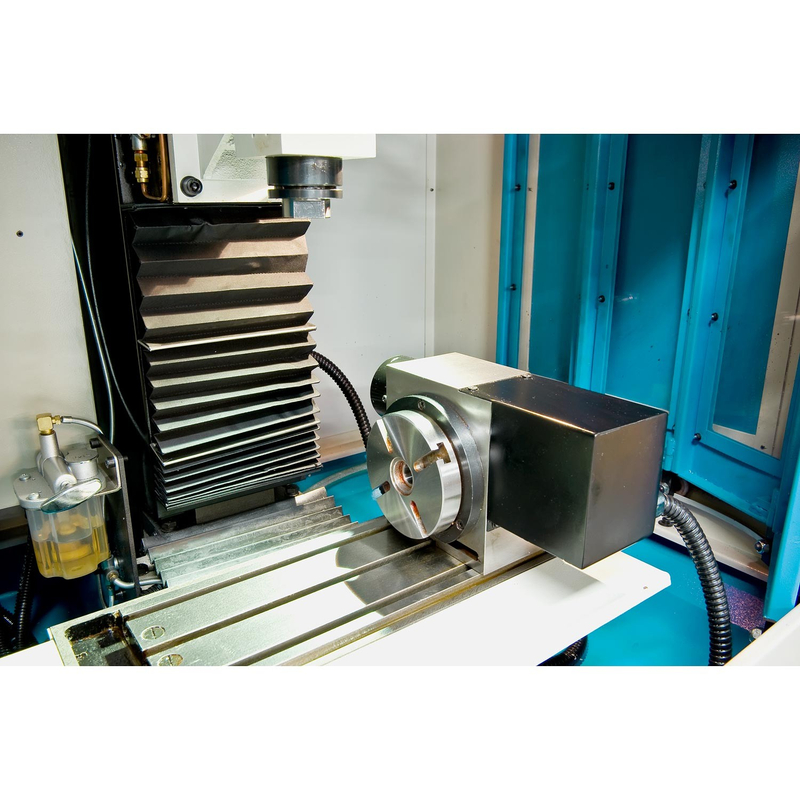

The options for this machine include a fourth axis rotary table, hand wheel controller and coolant system.
Drilling Capacity | 10mm |
---|---|
End Milling Capacity | 10mm |
Face Milling Capacity | 20mm |
Model | KX1S |
Motor | 500W Brushless DC |
Overall L x W x H | 1,040mm x 860mm x 940mm |
Power | 230V 50Hz AC |
Rating | Trade |
Spindle Speed | 100-7,000rpm |
Spindle Taper | 2MT |
Table Size | 400mm x 145mm |
Throat | 150mm |
Torque | 1.8Nm @1,500rpm |
Travel X Axis | 260mm |
Travel Y Axis | 115mm |
Travel Z Axis | 185mm |
T Slot Size | 8mm x 3 |
