CNC Technology KX3S Mill

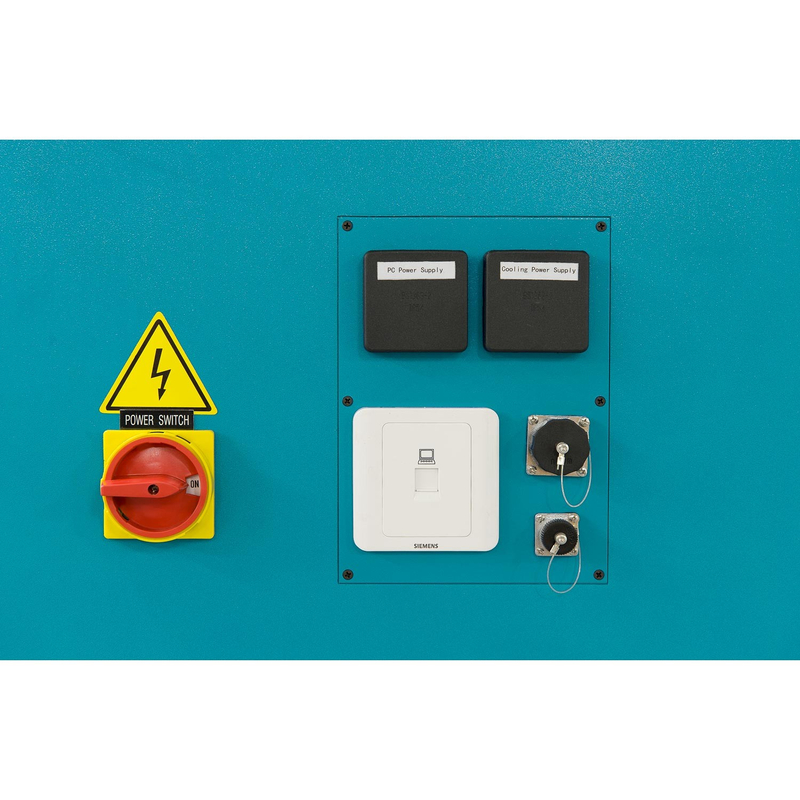

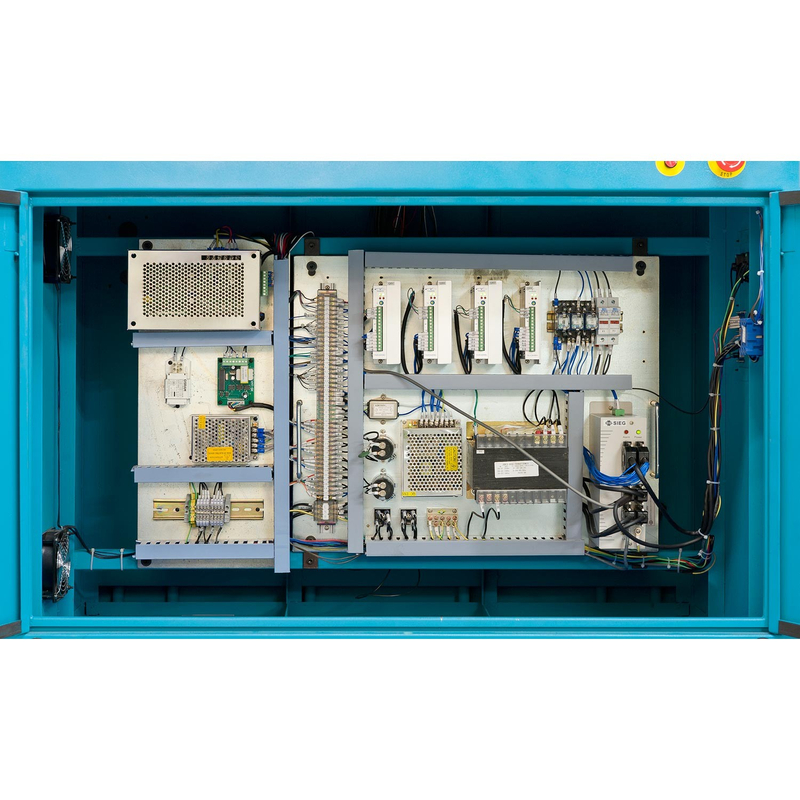

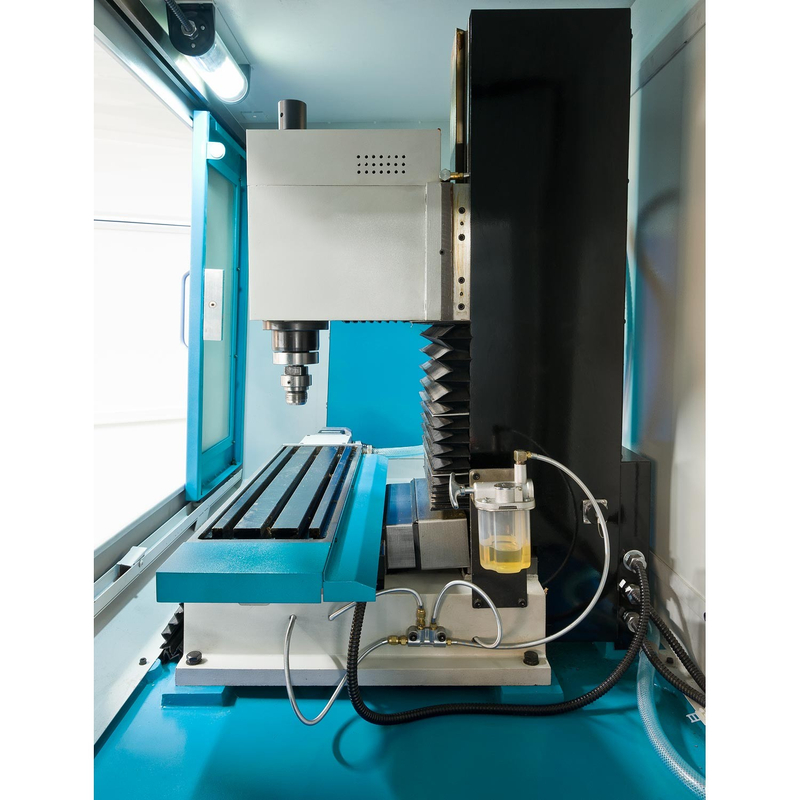

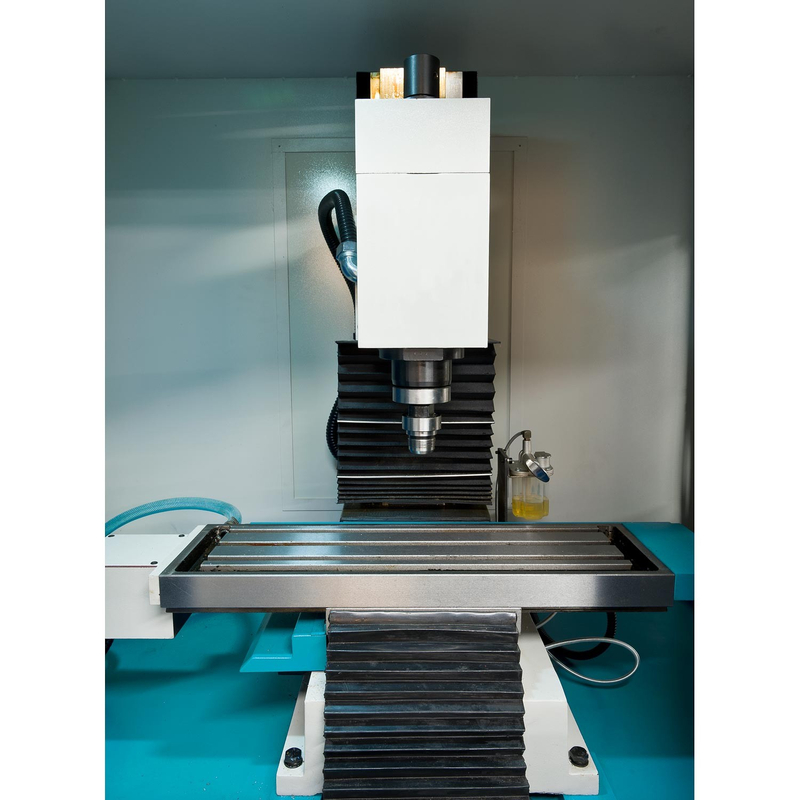

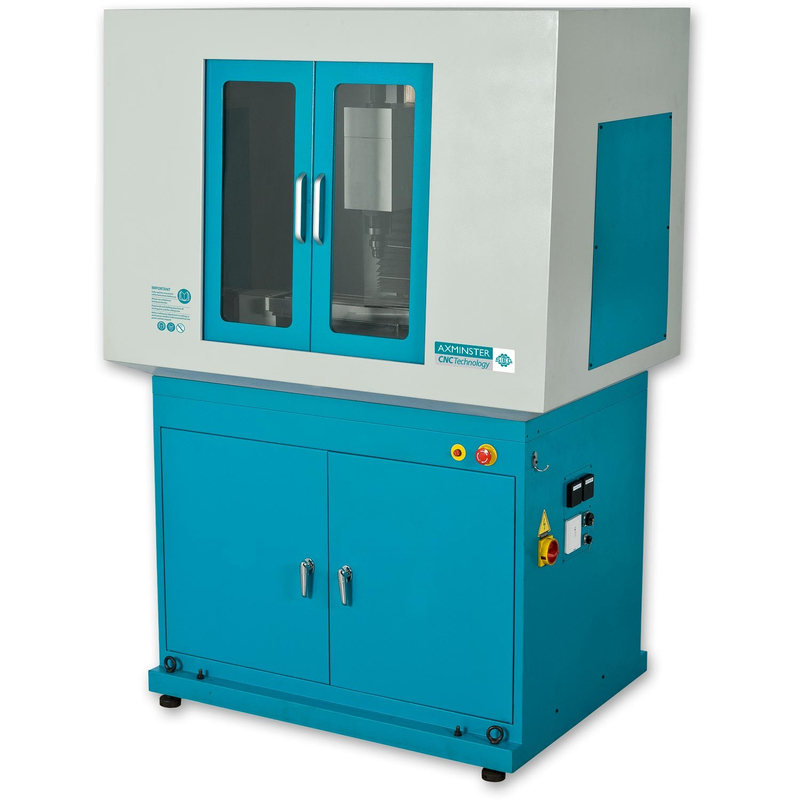

The KX3S is a high precision CNC milling machine, the bigger brother of the KX1S. It is ideal for the education sector, prototype engineering or small component production. Predominately manufactured in high grade cast iron, resulting in a stable and vibration absorbing platform. Fitted with precision ball screws and direct drive NEMA 23 Hybrid Stepper Motors on all axis, giving a repeatable positional accuracy of 0.010mm. The maximum axis speed is 1.5m/min and the maximum feed speed is 500mm/min. The spindle motor is a high torque 1,000W brushless DC unit, with full CNC spindle speed control. A central slideway lubrication system is fitted, as are limit switches to all axis. The machine and its electronic control system are fully enclosed in a steel cabinet, with an external E-Stop switch, the access doors being held closed with powered magnets. The cabinet has additional power sockets for the operating computer, plus extra power points for optional extras.
The machine is supplied with straightforward operating software, connection is by an ethernet (LAN) cable to any Windows based computer. The software has an in-built help and tuition programme and will accept G-Code inputs.
The options for this machine include a fourth axis rotary table, hand wheel controller and coolant system.
Drilling Capacity | 20mm |
---|---|
End Milling Capacity | 25mm |
Face Milling Capacity | 80mm |
Model | KX3S |
Motor | 1,000W Brushless DC |
Overall L x W x H | 1,280mm x 895mm x 1,845mm |
Power | 230V 50hz |
Rating | Trade |
Spindle Speed | 100-3,500rpm |
Spindle Taper | 3MT |
Table Size | 470mm x 160mm |
Throat | 190mm |
Torque | 5.5Nm @ 1,500rpm |
Travel X Axis | 295mm |
Travel Y Axis | 150mm |
Travel Z Axis | 275mm |
T Slot Size | 12mm x 3 |
