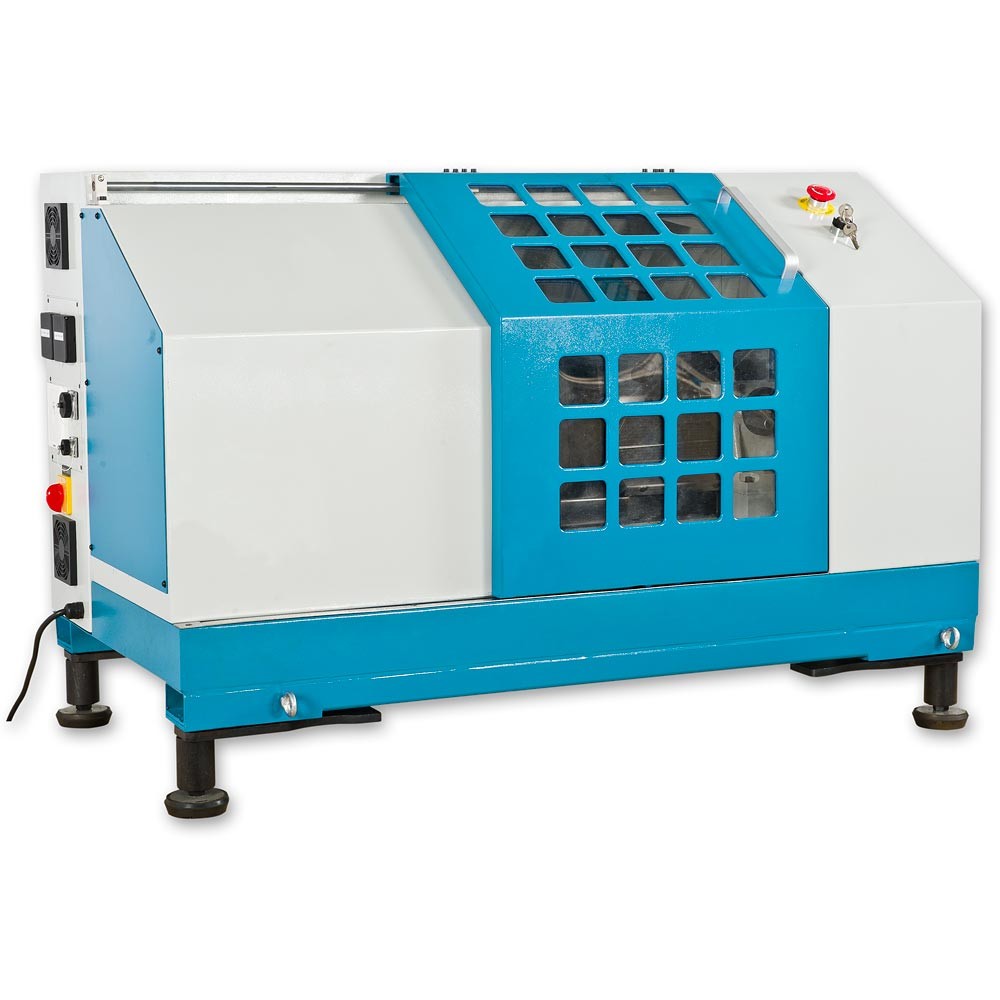

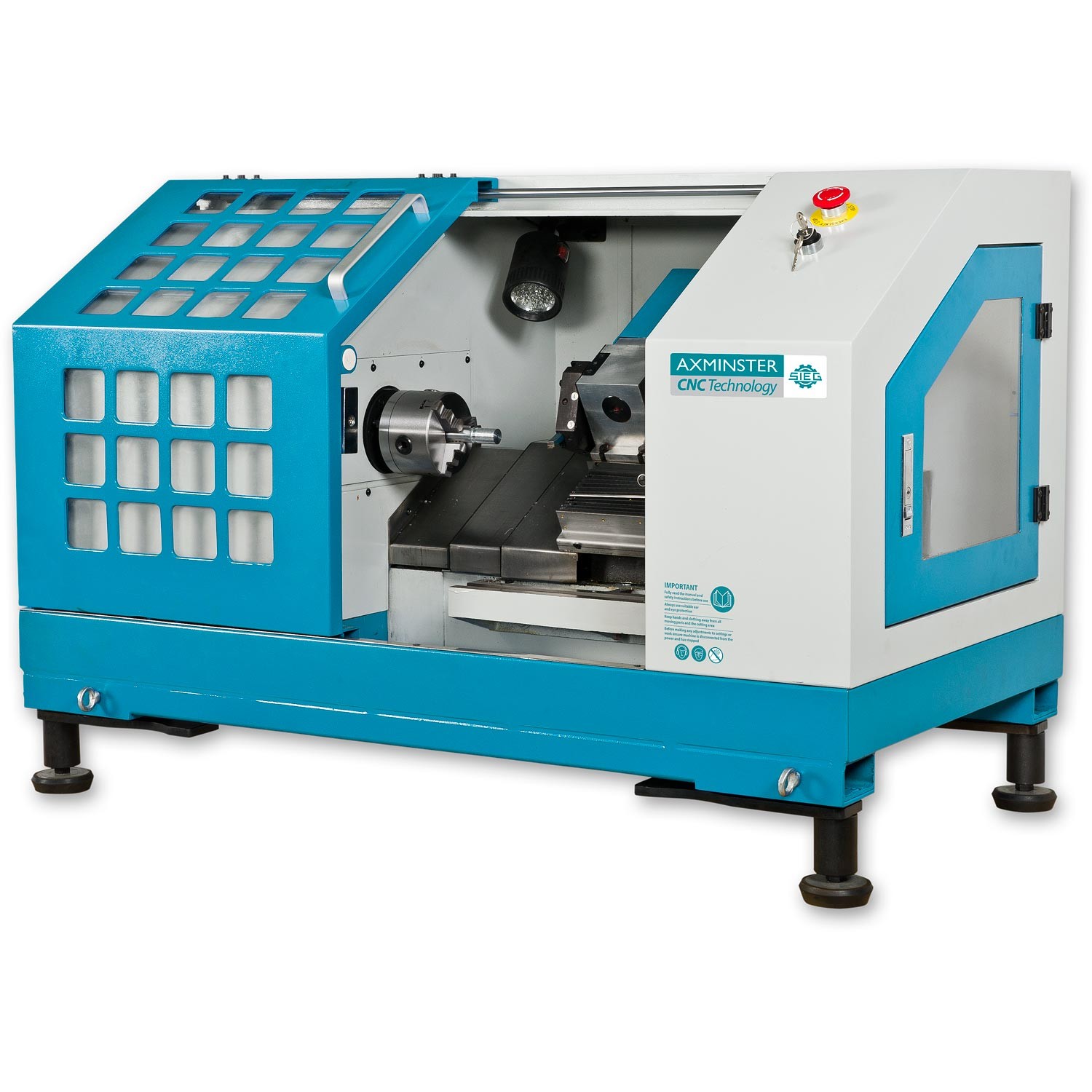

CNC Technology iKC4 Lathe

Quantity:
  • CNC Technology iKC4 Lathe

  • Precision CNC Lathe for education sector and advanced model engineering
  • 8 Automatic Tool Changes (ATC)
  • Slant bed
  • Ultra high precision linear rails
  • PC based CNC system
  • Distance between centres 280mm
  • Maximum spindle speed 3000rpm
  • Positional accuracy 0.015mm
  • Repeatable positional accuracy 0.01mm

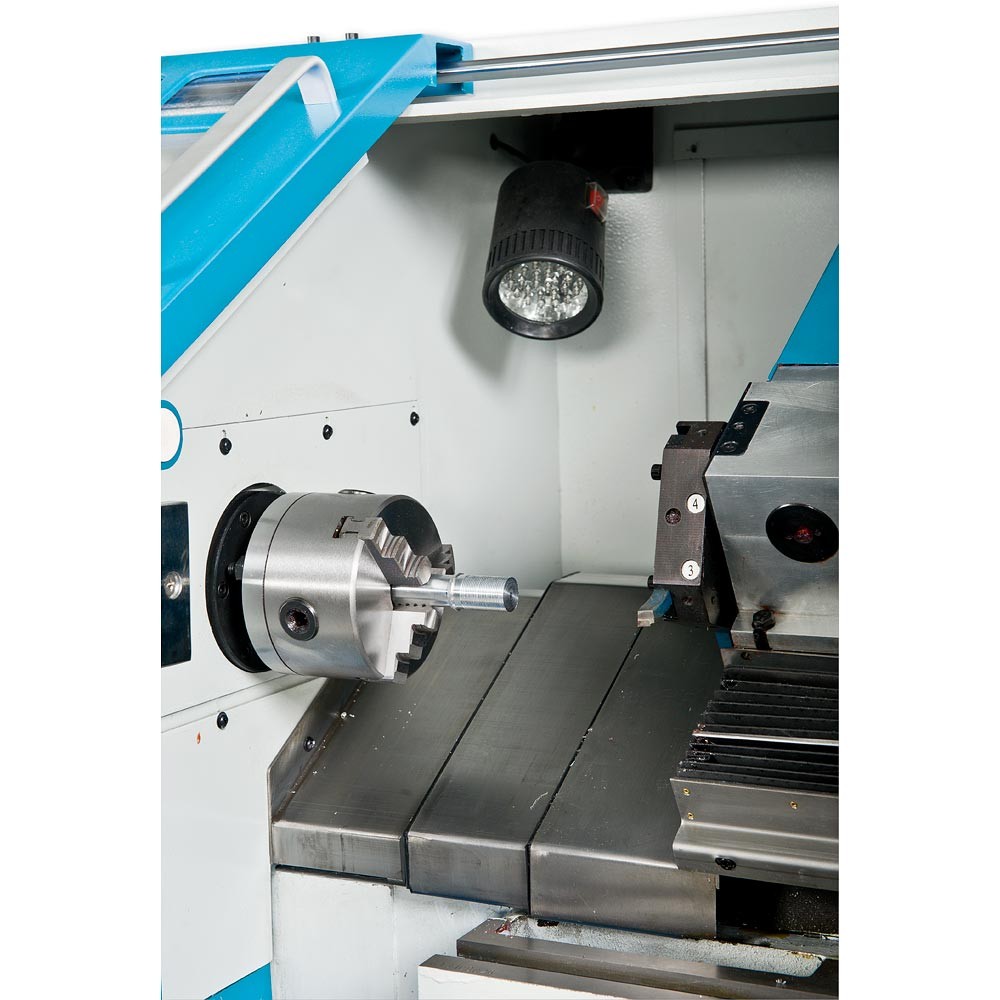

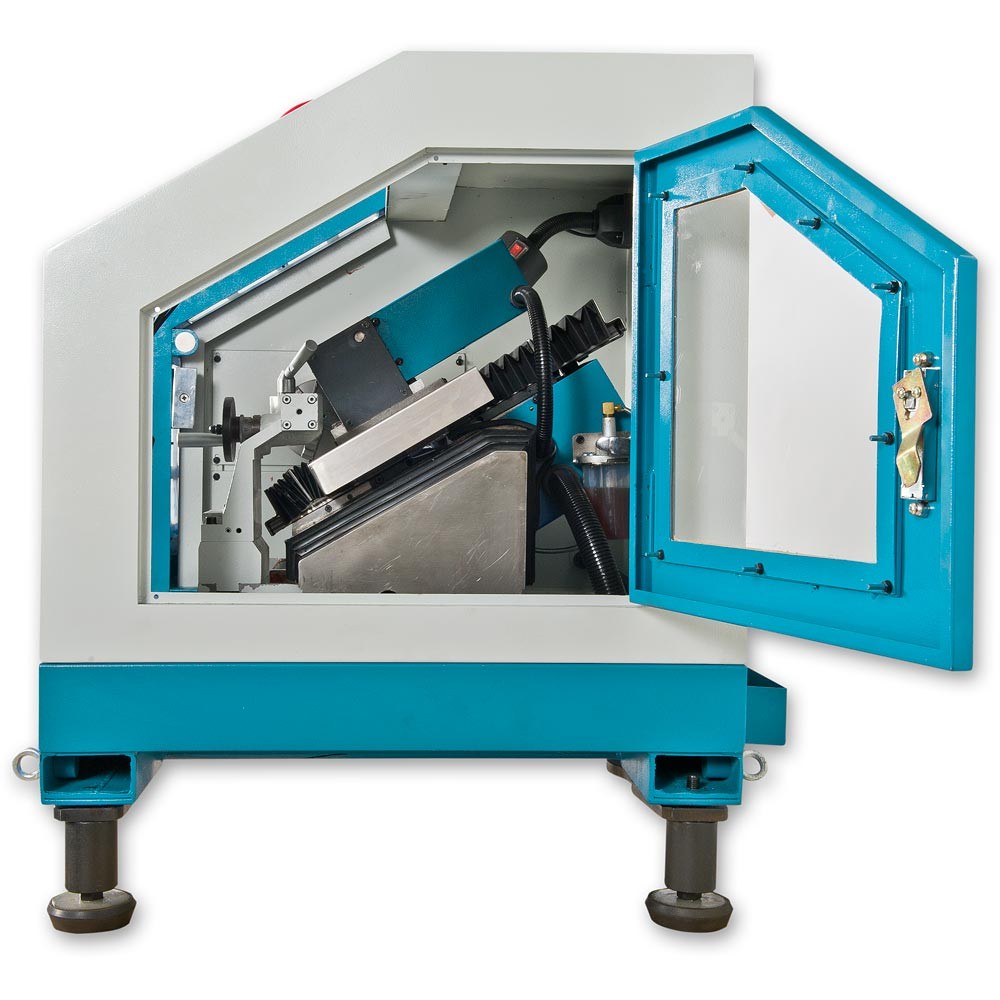

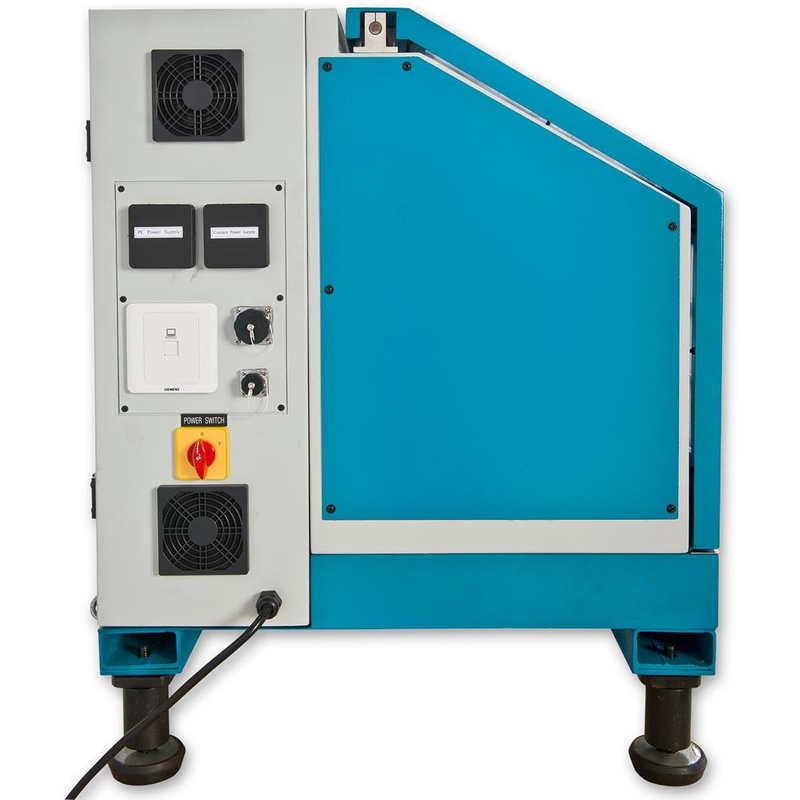

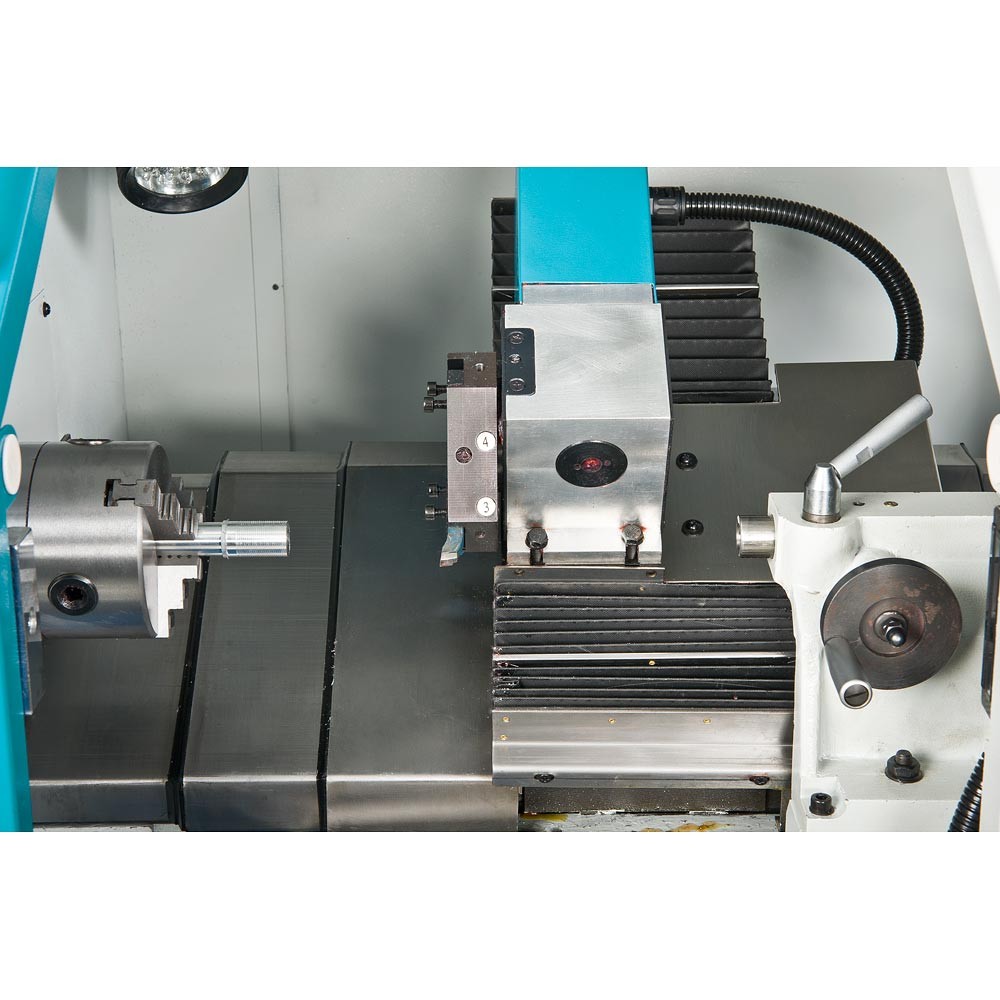

The iKC4 CNC lathe is a high precision machine, suited for the education sector, the model engineer and the prototype workshop. It has an 8 Automatic Tool Change (ATC), allowing for multiple tools to be set at once. The slant bed and the high precision rails mean this machine is extremly accurate with positional accuracy at 0.015mm. The lathe is supplied with operating system software and can be connected by an Ethernet (LAN) cable to any Windows based computer. The software has an in-built help and tuition programme and will accept G-Code inputs.The options for this machine include a hand wheel controller and coolant system.


Specification

Distance Between Centres 280mm
Feed Speed 3,000mm/min
Model iKC4
Overall L x W x H 1,070 x 690 x 760mm
Power 230V
Spindle Speed 100-3,000rpm
Spindle Taper 3MT
Travel X Axis 200mm
Travel Z Axis 200mm
Tailstock Taper 2MT
