CNC Technology iKX3 Mill

Quantity:
  • CNC Technology iKX3 Mill

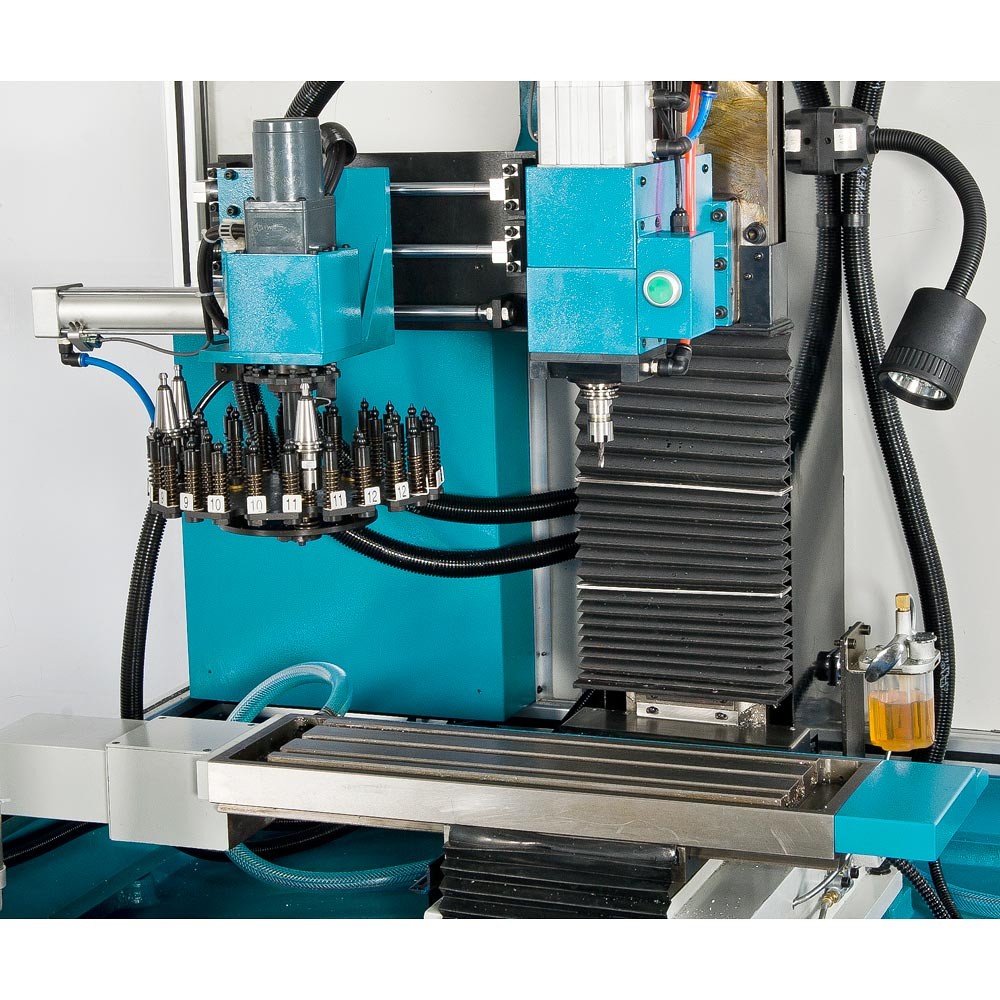

  • 12 Automatic Tool Changes (ATC)
  • Full transparent enclosure
  • PC based CNC system
  • 0.01mm positional accuracy
  • 0.01 repeatable position accuracy
  • Servo motors
  •

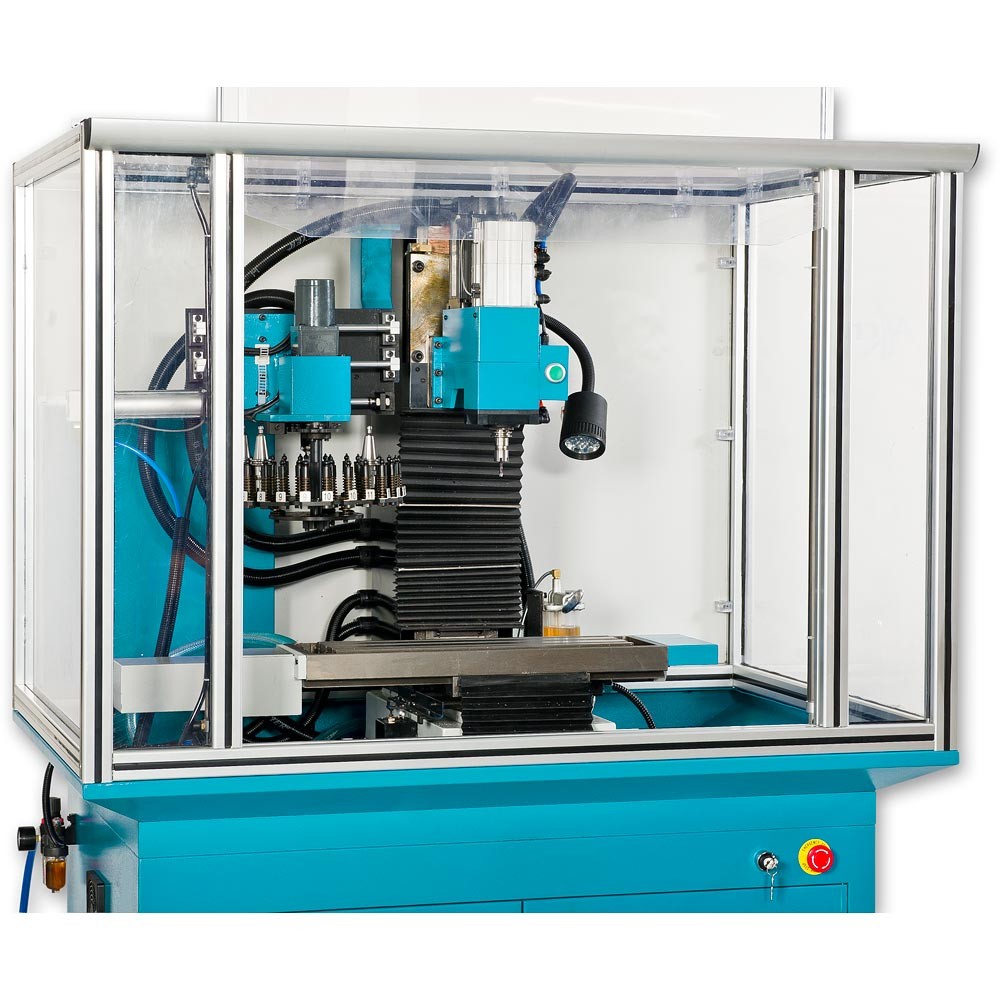

A highly accurate CNC mill, the iKX3 is predominantly manufactured in high grade cast iron, resulting in a stable machine. It has a complete transparent enclosure allowing for the workpiece and the cutting tool to be viewed at all times and at all angles. This machine has a 12 Automatic Tool Changes (ATC), meaning multiple tools can be set up at once giving a more continuous programme. A full range of accessories are available for this machine including a 4th axis and handwheel control. All our CNC machines come with an easy-to-use windows based operating system which has an in-built tuition program and accepts all G-code inputs.

Specification

Drilling Capacity 16mm
Model iKX3
Motor 1,000W
Overall L x W x H 1,280 x 895 x 1,845mm
Power 230V
Spindle Speed 100-5,000rpm
Spindle Taper ISO20
Table Size 550 x 160mm
Throat 215mm
Travel X Axis 270mm
Travel Y Axis 152mm
Travel Z Axis 270mm
T Slot Size 3 x 12mm
