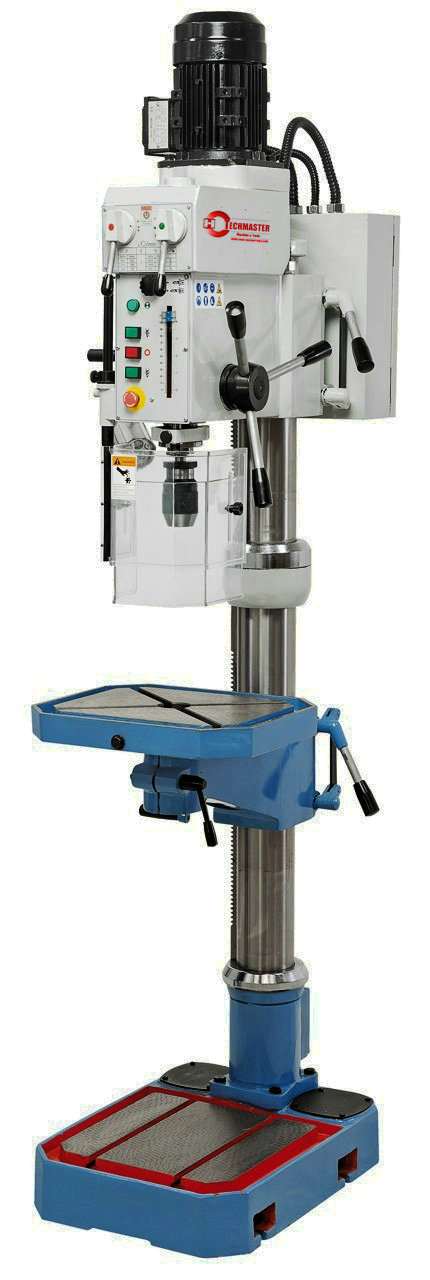

COLUMN TYPE OF VERTICAL DRILLING MACHINE EUROPE STYLE ZN5030
Quantity: EUROPE STYLE DRILLING MACHINE ZN5030
Drilling capacity max.
30 mm
Thread cutting max.
M 16
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 3
Spindle speeds
125 - 2825 rpm / 6
Distance spindle to column
240 mm
Distance spindle to table max.
655 mm
Distance spindle to base
1130 mm
Spindle stroke
115 mm
Column diameter
100 mm
Table size/ T-slot size
405 x 335 mm / 14 mm
Working surface of base
320 x 315 mm
Motor power output S1 100%
0,75 kW / 400 V
Motor power input S6 40%
1,1 kW / 400 V
Machine dimensions (W x D x H)
500 x 700 x 1910 mm
Weight approx.
235 kg
- Lever on gear head allows easy speed adjustment
- Adjustable drill depth stop includes scale
- Absolute concentricity ≤0,02 mm, measured at spindle
- Left and right rotation allows thread cutting
- Grey, cast-iron table includes T-slots and coolant grooves
- Automatic tool release device and LED working light come standard
- Polished base plate featues T-slots features T-slots for mounting of oversized workpieces
- High concentricity - spindle runs on high-quality bearings
- Hardened, polished gear wheels ensure smooth run
- Solid, polished steel column designed for constant use
EUROPE STYLE DRILLING MACHINE ZN5030
Drilling capacity max.
30 mm
Thread cutting max.
M 16
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 3
Spindle speeds
125 - 2825 rpm / 6
Distance spindle to column
240 mm
Distance spindle to table max.
655 mm
Distance spindle to base
1130 mm
Spindle stroke
115 mm
Column diameter
100 mm
Table size/ T-slot size
405 x 335 mm / 14 mm
Working surface of base
320 x 315 mm
Motor power output S1 100%
0,75 kW / 400 V
Motor power input S6 40%
1,1 kW / 400 V
Machine dimensions (W x D x H)
500 x 700 x 1910 mm
Weight approx.
235 kg
- Lever on gear head allows easy speed adjustment
- Adjustable drill depth stop includes scale
- Absolute concentricity ≤0,02 mm, measured at spindle
- Left and right rotation allows thread cutting
- Grey, cast-iron table includes T-slots and coolant grooves
- Automatic tool release device and LED working light come standard
- Polished base plate featues T-slots features T-slots for mounting of oversized workpieces
- High concentricity - spindle runs on high-quality bearings
- Hardened, polished gear wheels ensure smooth run
- Solid, polished steel column designed for constant use
