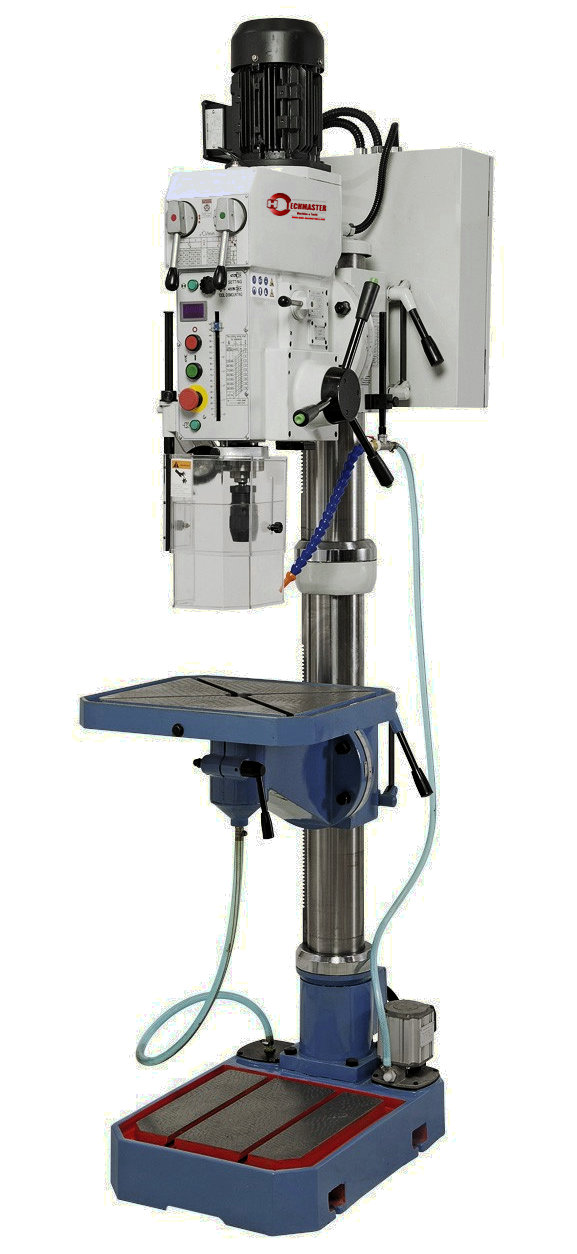

COLUMN TYPE OF VERTICAL DRILLING MACHINE EUROPE STYLE ZN5032A

Quantity:
 features polished gear wheels ensuring a smooth run. Serially equipped with a tiltable gear head and a digital speed display, this model is suitable for general applications.
COLUMN MECHANICAL AUTO FEEDING DRILLING MACHINE


Drilling capacity in steel

32 mm

Drilling capacity in cast iron

35 mm

Thread cutting max.

M20

Drill chuck

1 - 13 mm / B 16

Morse taper

MT 4

Spindle speeds / steps

125 - 3030 rpm / 12

Feed area

0,1 / 0,2 / 0,3 mm/rev

Distance spindle to column

325 mm

Distance spindle to table max.

690 mm

Distance spindle to base

1250 mm

Spindle stroke

160 mm

Column diameter

120 mm

Table size / T-slot size

500 x 420 mm / 14 mm

Working surface of base

365 x 370 mm

Motor power output S1 100%

1,0 / 1,2 kW

Motor power input S6 40%

1,5 / 1,8 kW

Machine dimensions (W x D x H)

570 x 900 x 2200 mm

Weight approx.

415 kg





























FEATURES

  • Tiltable drill head (-45° to +45°) increases range of applications
  • Tiltable work table (-45° to +45°) features diagonal T-slots and coolant grooves
  • Digital display allows easy readout of speed
  • Precision made machine base features T-slots and coolant pump
  • Gears running in oil bath ensure smooth run
  • Serially equipped with electro-magnetic spindle feed to achieve accurate results
  • Powerful 2-step drive motor is designed for continuous use
  • Hardened and polished gear wheels



Standard accessories:

  • Drill chuck 1 - 13 mm / B 16
  • Drill chuck arbor MT 4 / B 16
  • Morse taper drill sleeve MT 4 / 3, MT 4 / 2
  • Coolant pump
  • Electromagnetic spindle feed
  • Thread cutting device
  • Automatic tool release device
  • LED working light
  • Digital readout of speeds
  • Initial filling with Shell Tellus 46
  • Height adjustable protective cover
