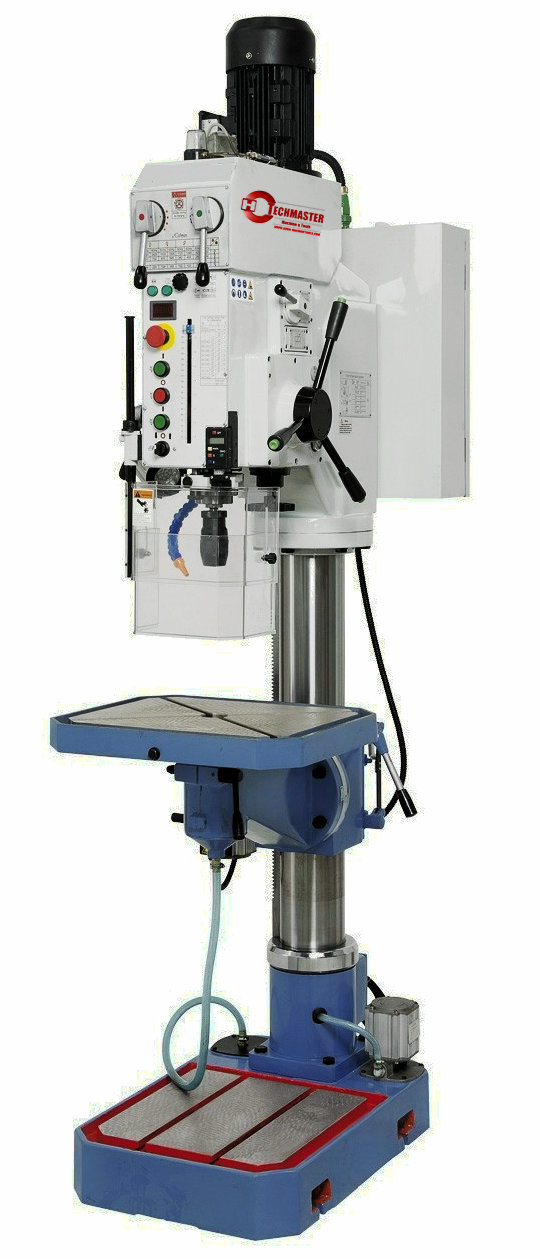

COLUMN TYPE OF VERTICAL DRILLING MACHINE EUROPE STYLE ZY5035A
Quantity: gear head drilling machine is serially equipped with a motorized stroke to reduce down-time. The digital readout of drill depth and speed as well as the electromagnetic spindle feed round off the standard features.
TROCHOID THIN OIL LUBRICATION
Drilling capacity in steel
35 mm
Drilling capacity in cast iron
40 mm
Thread cutting max.
M24
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speeds
(12) 75 - 2020 rpm
Feed area
0,12 / 0,24 / 0,40 mm/rev
Distance spindle to column
340 mm
Distance spindle to table max.
605 mm
Distance spindle to base
1195 mm
Spindle stroke
190 mm
Column diameter
140 mm
Table size / T-slot size
540 x 440 mm / 14 mm
Working surface of base
400 x 410 mm
Motor power output S1 100%
1,5 kW
Motor power input S6 40%
2,2 kW
Machine dimensions (W x D x H)
660 x 900 x 2230 mm
Weight approx.
490 kg
FEATURES
- Serially equipped with motorized table height adjustment
- Automatic tool release device and thread cutting device come standard
- Lever on gear head allows quick and easy speed change
- Digital readout of speed and drill depth come standard
- Treated machine base (400 x 410 mm) with integrated coolant pump
- Electromagnetic spindle feed for precise work
- Hardened, polished gear wheels for smooth run
- Quality bearings guarantee concentricity
- Solid, hand-polished, grey cast iron table with tilt- and turnable support
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Motoric table stroke
- Electromagnetic spindle feed
- Morse taper drill sleeve MT 4 / 3, MT 4 / 2
- Initial filling with Shell Tellus 46
- Thread cutting device
- Automatic tool release device
- Digital readout of speeds
- LED working light
- Coolant pump
- Digital readout of drill depth
- Height adjustable protective cover
