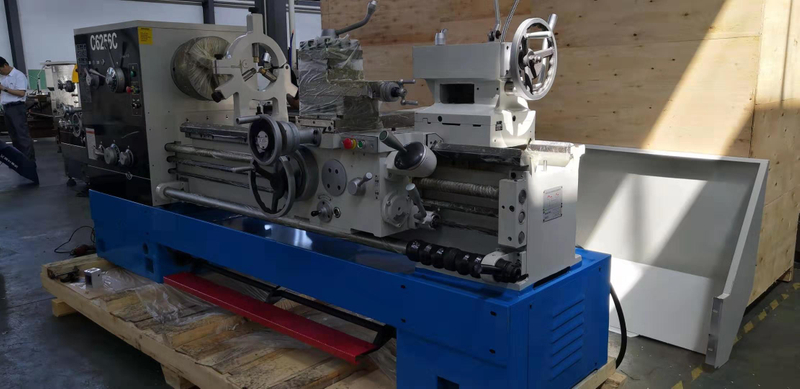

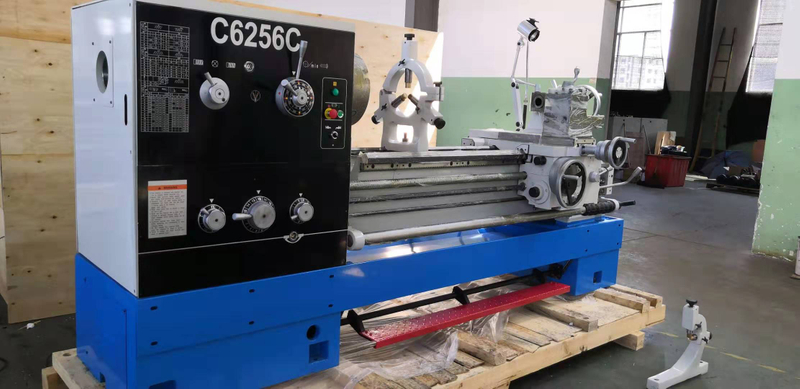

CONVENTIONAL LATHE C6256C BIG SPINDLE HOLE SERIES

Availability:
Quantity:
  • C6240ZX EVS / C6246ZX EVS

TEMC6256C/C6266C/C6277C
MACHINING
  Max.swing diameter over bed Ф560/660/770mm
  Max.swing diameter over carriageФ360/420/575mm
  Max.swing diameter over gapФ770/870/1050mm
  Max. turned  lengthФ830/1330/1830/2830mm
  Max.workpiece length1000/1500/2000/3000mm
  Effective length in gap230mm
SPINDLE
  Spindle noseD8
  Spindle boreФ105mm
  Taper of boreФ113mm 1:20
  Number of speed 12
  Range of speed                                    36-1600rpm
THREAD CUTTING
  Metric range/No.1~14mm/22
  Whitworth range/No. 28~2T.P.I/26
  D.P range/No. 56~4D.P/24
  Module range/No.0.5~7mm/18
FEEDING
  Longitudinal 0.063~2.52mm (0.023"~0.937")
  Cross 0.027~1.07mm (0.010"~0.404")
  Rapid traverse speed of longitudinal 4.5m/min
  Rapid traverse speed of cross1.9m/min
  Max.traver of top slide 145mm
  Max.traver of cross slide 360mm
  Max.size of tool(WxH)25x25mm
TAILSTOCK
  External diameterФ75mm
  Taper of boreM.T.No.5
  Max.traverse150mm
OTHER
  Power of main motor7.5kw
  Overall dimensions(Lx Wx H)2500/3000/3500/4500X1100x1450mm
  Net weight 3000/3200/3400/3900kg

The descriptions, illustrations and specifications given here in are subject to alteration without notice   and thus  without any obligation.
