| Quantity: | |
|---|---|

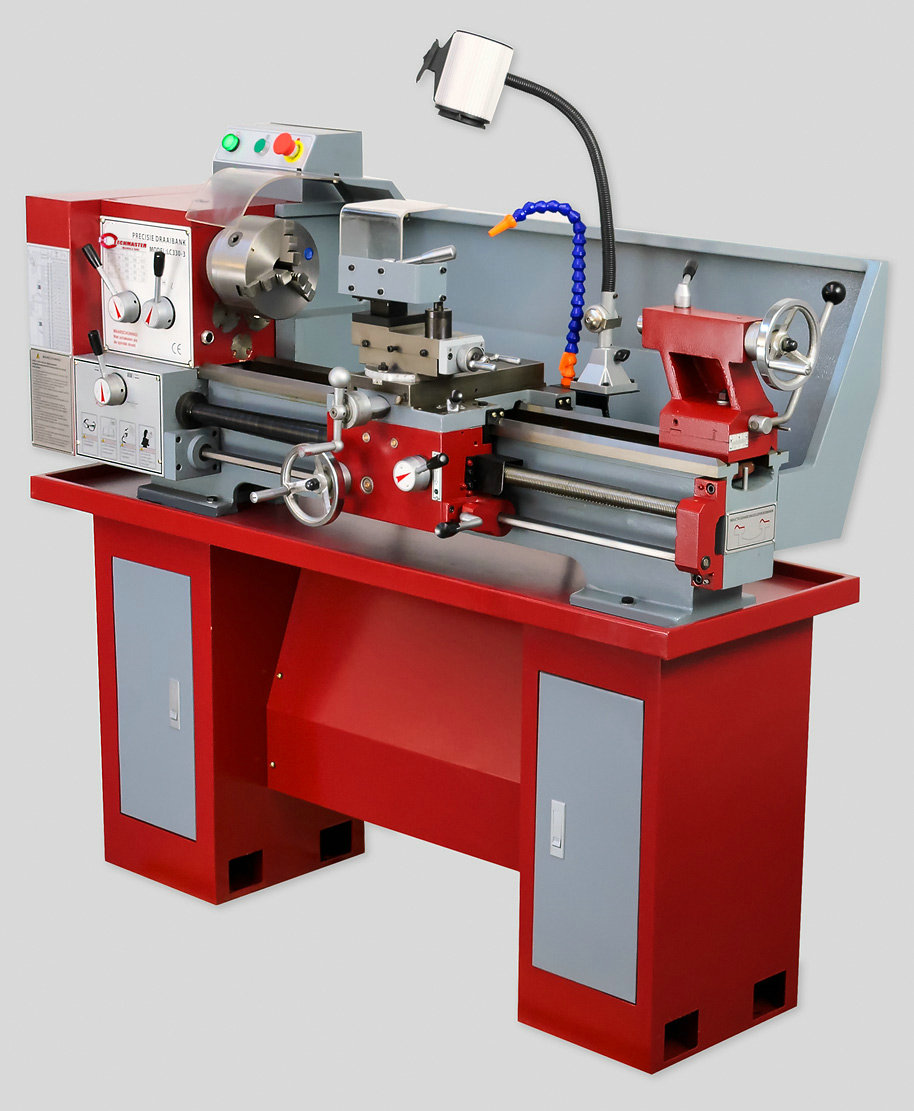

| Model | CQ6133/CQ6133A |
| Max.swing over bed | 330 |
| Max.swing over carriage | 210 |
| Distance between centers | 550/750 |
| Width of bed | 160 |
| Spindle bore | 38 |
| Spindle taper | |
| Steps of spindle speed | 12 steps |
| Ranges of spindle speed | 60-1650rpm |
| Thread leadscrew | 3 |
| Kinds and ranges of Inch thread | 20/40-9TPI |
| Kinds and ranges of Metric thread | 17/0.5-4 |
| Longitudinal stroke over tool post | 100 |
| Cross stroke over tool post | 160 |
| Taiper of tailstock | |
| Max.travel of tailstock quill | 70 |
| Longitudinal feed range | 0.135-1.80mm/r |
| Max.size of tool shank | 16 |
| Power of motor | 1100 |
| Voltage Frequency | As per customer’s requirement |
| Net/Gross weight | 220/260kgs 260/300kgs |
