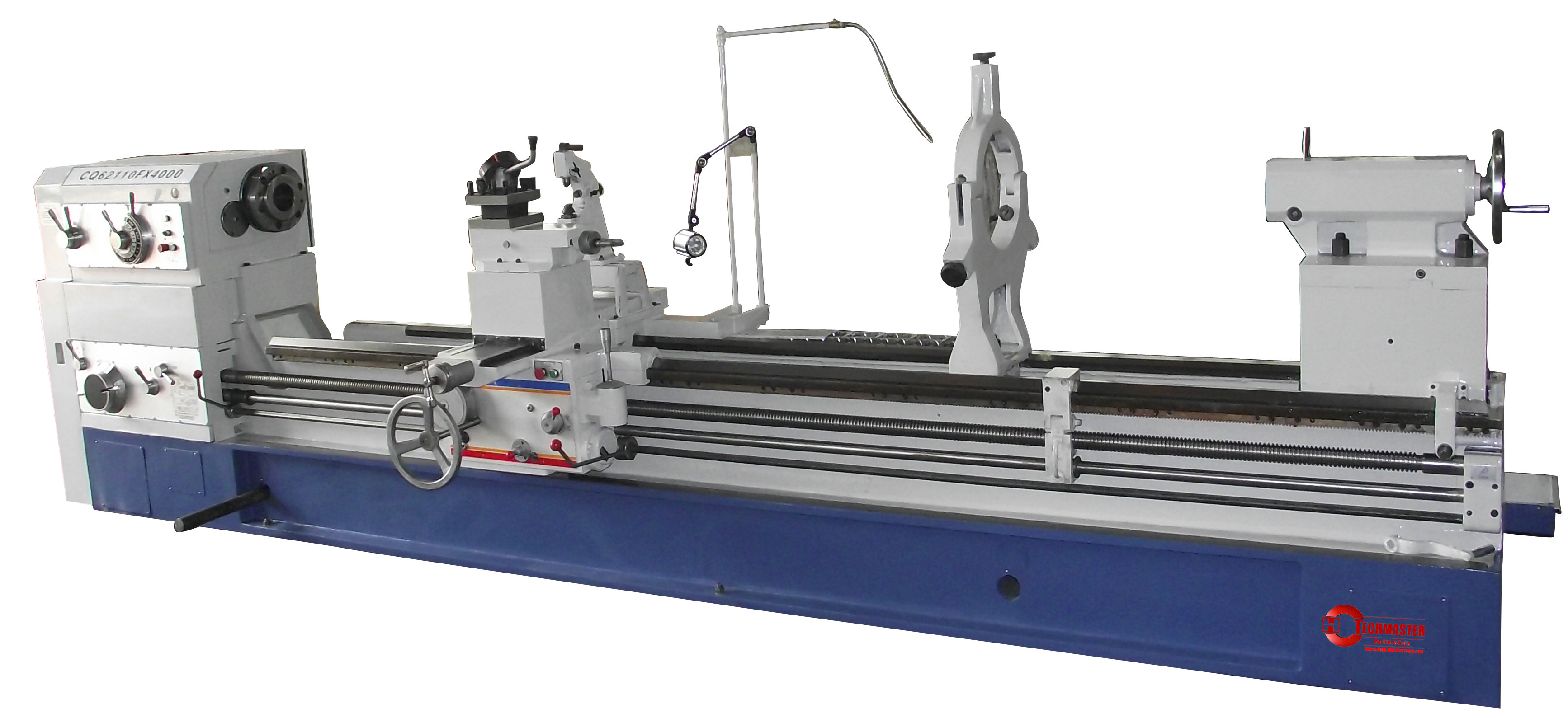

CQ62110F
Quantity: Characteristic:
Floor type bed way, with auxiliary slide way, enhance machine’s rigidity and stability, can be use for processing large diameter and lighter parts, reduce user’s investment cost for equipments
MAIN SPECIFICATION CQ61110F CQ62110F CQ61125F CQ62125F CQ61145F CQ62145F MAX SWING OVER BED 1100MM 1250MM 1450MM MAX. SWING OVER CARRIAGE 790MM 940MM 1140MM MAX SWING IN GAP
1270MM
1420MM
1620MM LENGTH OF GAP
390MM
390MM
390MM MAX LENGTH OF WORKPIECE 1500, 2000, 3000, 4000, 5000, 6000, 8000,10000MM SPINDLE BORE 105MM TAPER IN SPINDLE BORE(1:20) METIC 120MM RANGE OF FORWARD SPINDLE SPEEDS 4-530 R/MIN, 18 KINDS RANGLE OF LONGITUDINAL FEEDS 0.1-24.3MM/R, 64 KINDS RANGE OF FINE LONGITUDINAL FEEDS(WITH CHANGE GEARS) 0.05-12.15MM/R CROSS EQUAL TO 1/2 LONGITUDINAL FEED 0.05-12/5MM/R(0.00197-0.48IN/R) RAPID TRAVERSE OF CARRIAGE 4000MM/MIN THREAD CUTTING: METRIC THREADS 1-240MM. 50 KINDS WHITWORTH THREADS 14-1 TPI, 26 KINDS MODULE THREADS 0.5-120MM, 53 KINDS DIAMETRAL PITCH THREADS 28-1 DP, 24 KINDS TAPER OF TAILSTOCK CENTER MORSE NO. 5 MAIN MOTOR POWER 11 KW
Characteristic:
Floor type bed way, with auxiliary slide way, enhance machine’s rigidity and stability, can be use for processing large diameter and lighter parts, reduce user’s investment cost for equipments
MAIN SPECIFICATION CQ61110F CQ62110F CQ61125F CQ62125F CQ61145F CQ62145F MAX SWING OVER BED 1100MM 1250MM 1450MM MAX. SWING OVER CARRIAGE 790MM 940MM 1140MM MAX SWING IN GAP
1270MM
1420MM
1620MM LENGTH OF GAP
390MM
390MM
390MM MAX LENGTH OF WORKPIECE 1500, 2000, 3000, 4000, 5000, 6000, 8000,10000MM SPINDLE BORE 105MM TAPER IN SPINDLE BORE(1:20) METIC 120MM RANGE OF FORWARD SPINDLE SPEEDS 4-530 R/MIN, 18 KINDS RANGLE OF LONGITUDINAL FEEDS 0.1-24.3MM/R, 64 KINDS RANGE OF FINE LONGITUDINAL FEEDS(WITH CHANGE GEARS) 0.05-12.15MM/R CROSS EQUAL TO 1/2 LONGITUDINAL FEED 0.05-12/5MM/R(0.00197-0.48IN/R) RAPID TRAVERSE OF CARRIAGE 4000MM/MIN THREAD CUTTING: METRIC THREADS 1-240MM. 50 KINDS WHITWORTH THREADS 14-1 TPI, 26 KINDS MODULE THREADS 0.5-120MM, 53 KINDS DIAMETRAL PITCH THREADS 28-1 DP, 24 KINDS TAPER OF TAILSTOCK CENTER MORSE NO. 5 MAIN MOTOR POWER 11 KW
